• Model NO.：GYTA53
• Core：Double Core
• Certification：RoHS, ISO9001, Reach
• Brand：Fiber Optic Cable
• Sheath Material：LSZH, HDPE, MDPE
• Installation Style：Duct & Direct Buried
• Brand Name of Fiber：Corning, Yofc, Draka,
• Loose Tube Material：PBT Optic Fiber Cable
• Waterblocking Material：Water Blocking Tape or Filling Compound
• Outer Sheath Material：MDPE , HDPE ,LSZH
• Outer Sheath Color：Black ( Opitc Cable)
• First Armour Material：Corrugated Steel Tape
• Second Armour Material：Corrugated Aluminium Tape
• Central Stranding Member：Steel Wire or FRP
• Fiber Count：2-288 Core Optic Cable
• Transport Package：Wooden Drum
• Specification：ISO, ROHS, REACH, SGS
• Trademark：TW-SCIE or OEM
• Origin：Dongguan, China
• HS Code：8544700000
• Production Capacity：200km,Day

GYTA53 Fiber Optic Cable Technology Specification:Out sheath  Tight buffer WeightMinimum allowable   Minimum allowable Crush Load   Minimum Bending RadiusStorageDiameterDiameter

TensileStrength(N)
 (N/100mm)(MM) temperature(°C)  (MM)  (MM)  (KG)short termlong Term  short termlong termshort termlong term   -40+602-6013.22183000100030001000 20D 10D  -40+6062-7215.02303000100030001000 20D 10D  -40+6074-96183183000100030001000 20D 10D  -40+6098-120193783000100030001000 20D 10D  -40+60122-216204583000100030001000 20D 10D  -40+60 GYTA53 Fiber Optic Cable Characteristics:
 Fiber Sort      MultimodeG.651A1a:50/125Graded-index fiber  A1b:62.5/125Singlemode    G.652(A,B,C)B1.1:Conventional fiberG.652D B2: Zero  dispersion shiftedG.655 B1.2 :Cut-off wavelength shiftedG.657(A1,A2 ,B3)  B4: Main technical data for positivedispersion shifted single-mode fiber

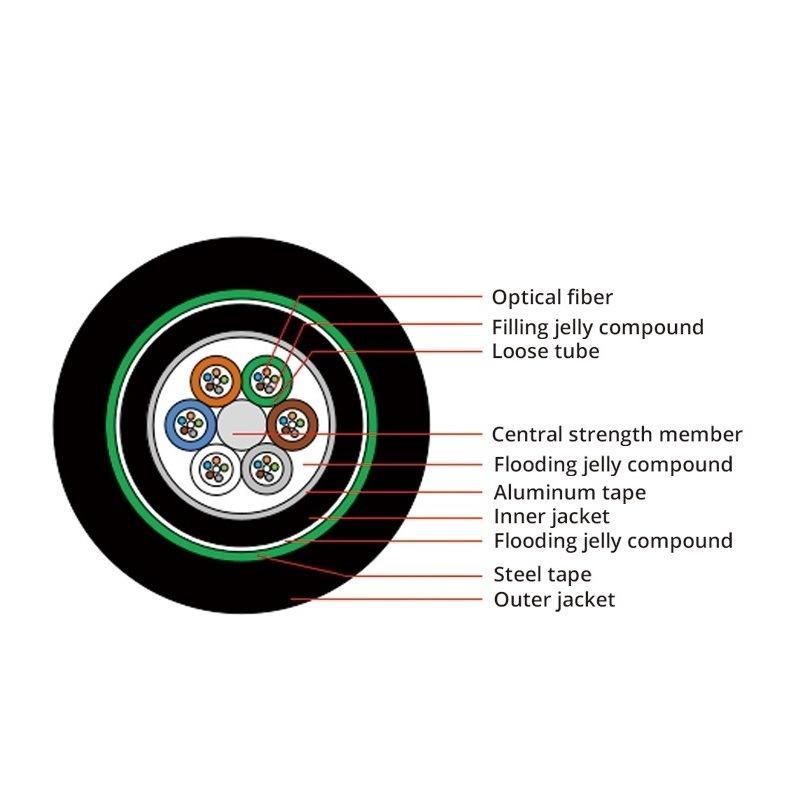

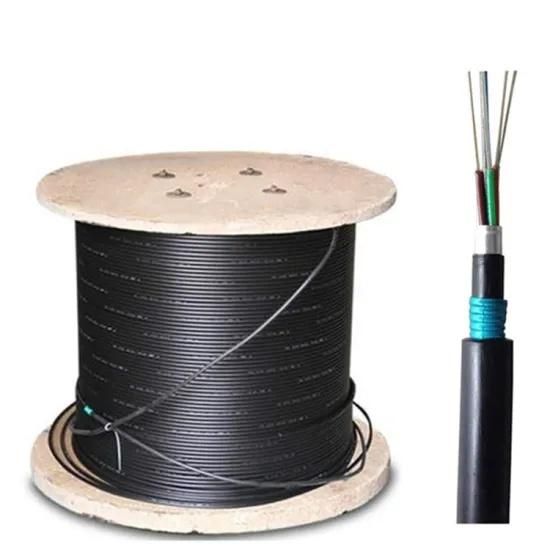

GYTA53 optic fiber cable Photo Tour:

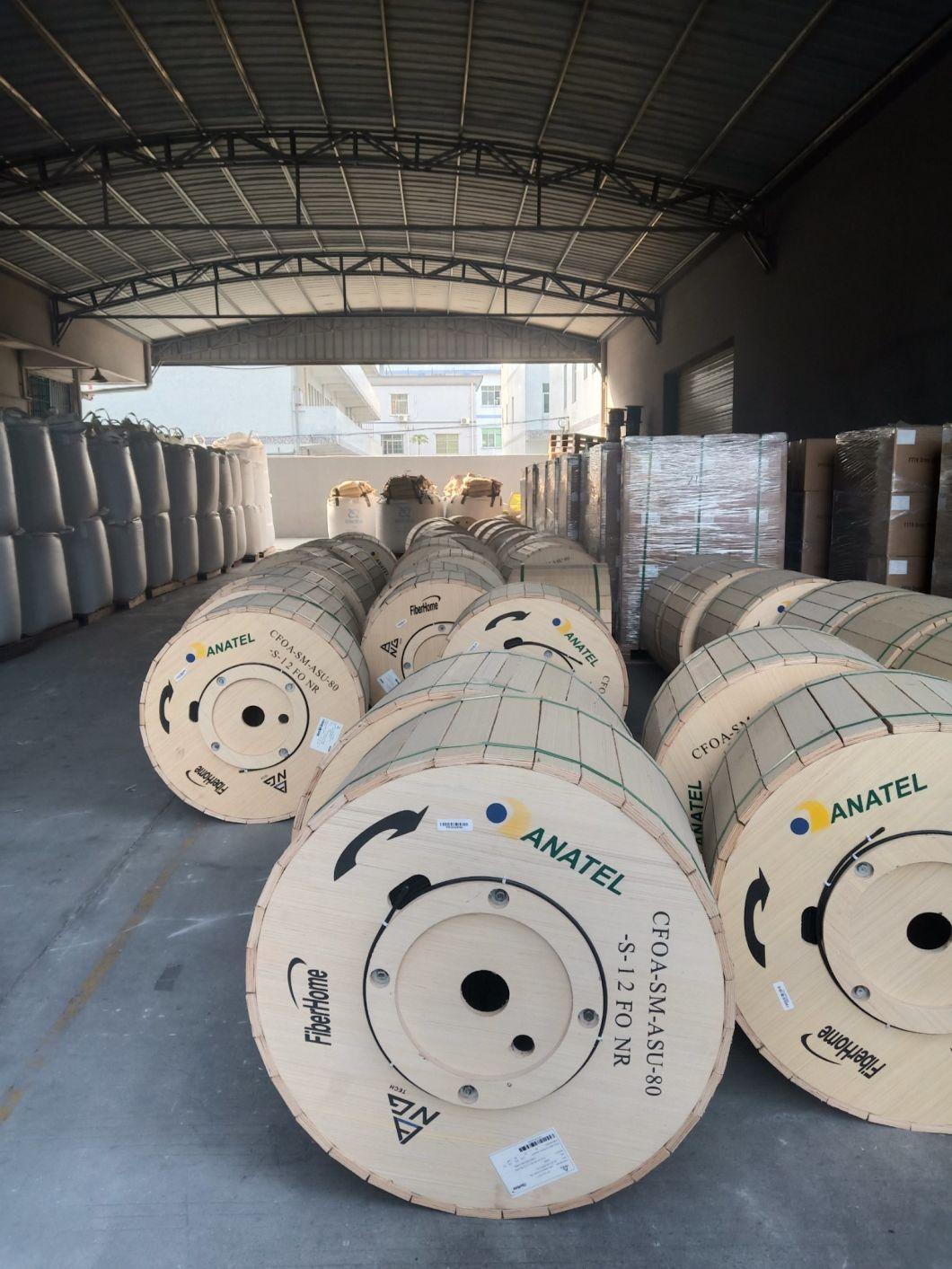

GYTA53 optic fiber cable Wooden Drum :
The cables will be shipped on disable wooden or treated wooden drums.
Inner packing: Steel reel on wooden drums which wrapped with insulated material;
Out packing: Protected by wooden battens.
PS:The inner and outer ends of cable will be capped and made accessible for testing. A direction
of rotation arrow is marked on the drum together with the identification

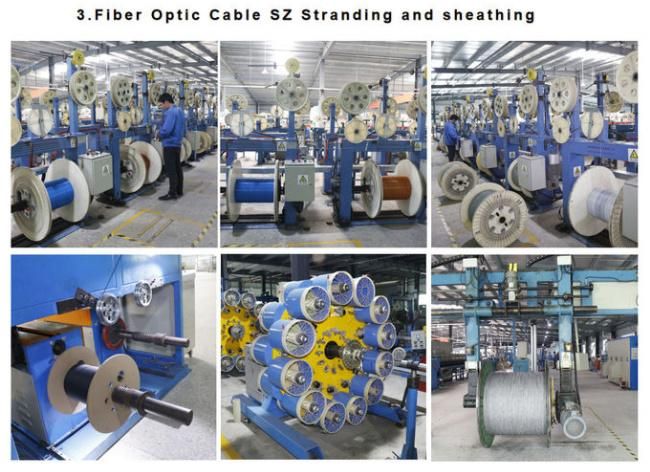

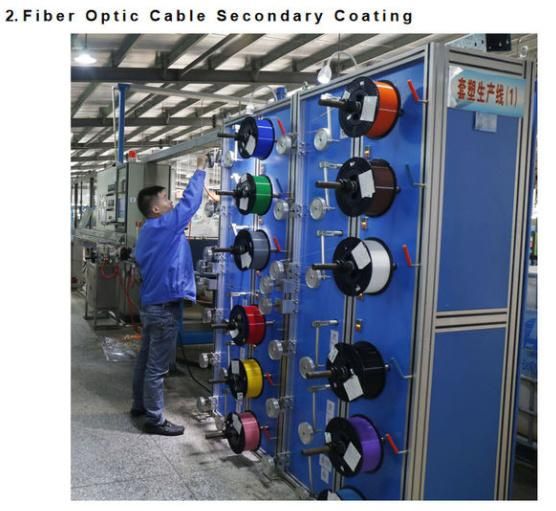

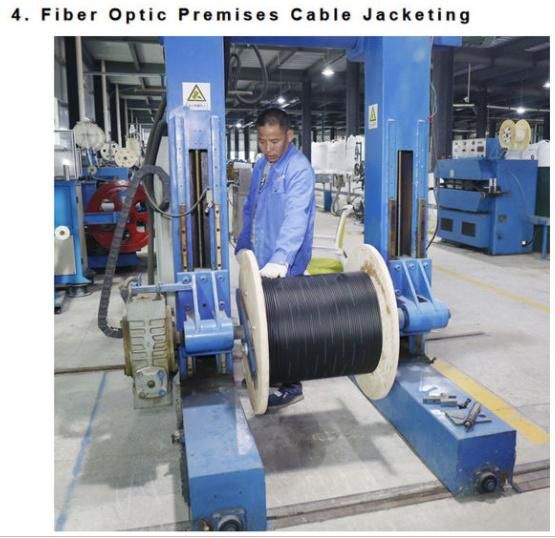

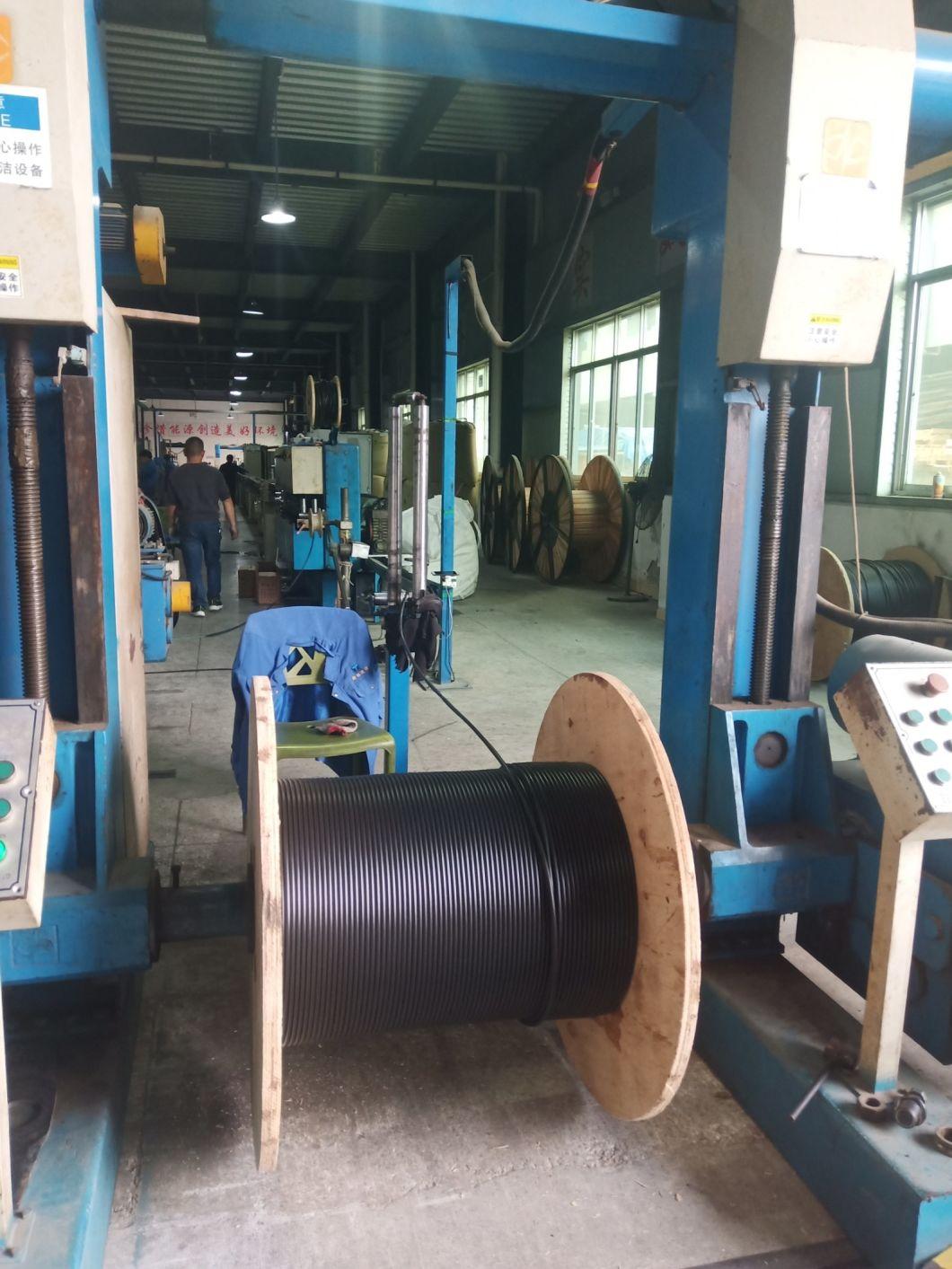

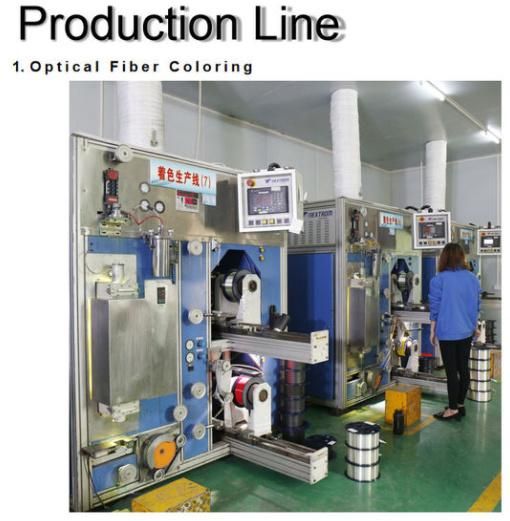

GYTA53 optic fiber cable Manufacturing Process:

Here at TW-SCIE we provide you technical assistance and informations. All of fiber optic cable are tested by professional QC department.
Including: Optical fiber performance, Mechanic performance, Environment performance, etc
GYTA53 optic fiber cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber
Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each
mechanical characteristics can be tested on testing machine for the particular test.
