Factory 12/24 Core Direct Buried Armour GYTA53 Optical Cable
DONGGUAN TW-SCIE CO., LTD.- Application：Communication, Art, Sensor, Medicine, Probe, Optical Fiber
- Type：Single More or Multimode
- Connection Structure：Fiber Optic Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYTA53 fiber optic cable
- Core：Double Core
- Certification：RoHS, ISO9001, Fiber Optic Cable
- Brand：OEM or Tw-Scie
- Sheath Material：LSZH, HDPE, MDPE
- Installation Style：Duct & Direct Buried
- Brand Name of Fiber：Corning, Yofc, Draka...
- Loose Tube Material：PBT Optic Fiber Cable
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Outer Sheath Material：MDPE , HDPE ,Lszh
- Outer Sheath Color：Black ( Opitc Cable)
- First Armour Material：Corrugated Steel Tape
- Second Armour Material：Corrugated Aluminium Tape
- Central Stranding Member：Steel Wire or FRP
- Fiber Count：2-288 Core Optic Cable
- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE or OEM
- Origin：Dongguan, China
- HS Code：8544700000
- Production Capacity：200km,Day
Description
GYTA53 Fiber Optic Cable Technology Specification:Out sheath Tight buffer Weight Minimum allowable Minimum allowable Crush Load Minimum Bending Radius Storage Diameter Diameter
TensileStrength(N)
(N/100mm) (MM) temperature(°C) (MM) (MM) (KG) short term long Term short term long term short term long term -40+60 2-60 13.2 218 3000 1000 3000 1000 20D 10D -40+60 62-72 15.0 230 3000 1000 3000 1000 20D 10D -40+60 74-96 18 318 3000 1000 3000 1000 20D 10D -40+60 98-120 19 378 3000 1000 3000 1000 20D 10D -40+60 122-216 20 458 3000 1000 3000 1000 20D 10D -40+60
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber A1b:62.5/125 Singlemode G.652(A,B,C) B1.1:Conventional fiber G.652D B2: Zero dispersion shifted G.655 B1.2 :Cut-off wavelength shifted G.657(A1,A2 ,B3) B4: Main technical data for positive dispersion shifted single-mode fiber
GYTA53 optic fiber cable Photo Tour:

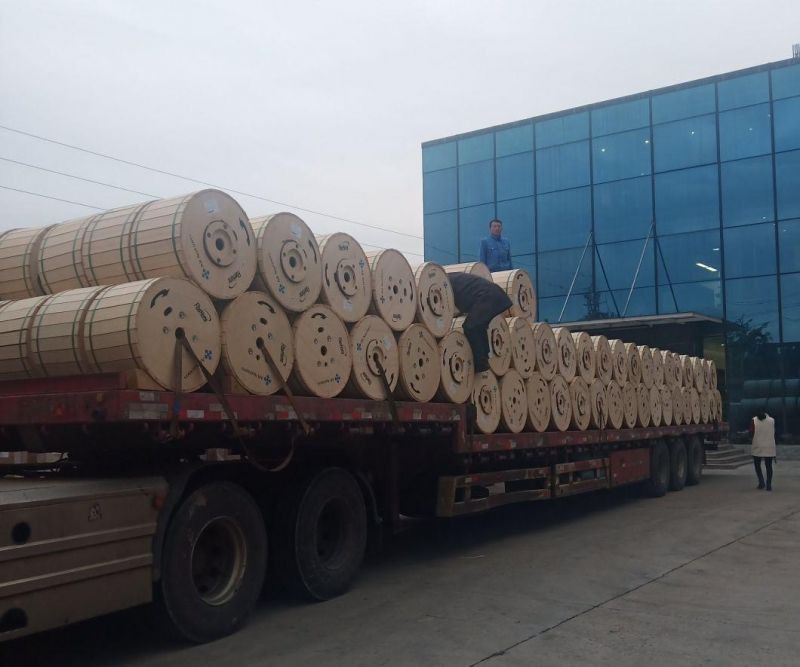

GYTA53 optic fiber cable Wooden Drum :
The cables will be shipped on disable wooden or treated wooden drums.
Inner packing: Steel reel on wooden drums which wrapped with insulated material;
Out packing: Protected by wooden battens.
PS:The inner and outer ends of cable will be capped and made accessible for testing. A direction
of rotation arrow is marked on the drum together with the identification
GYTA53 optic fiber cable Manufacturing Process:

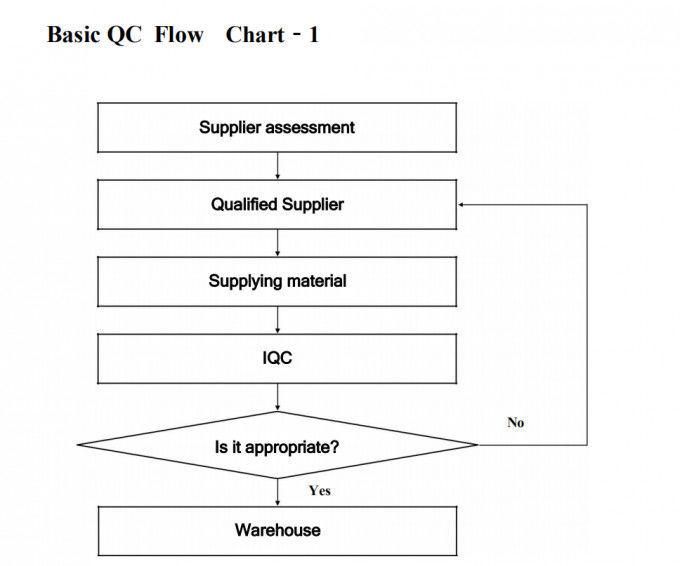

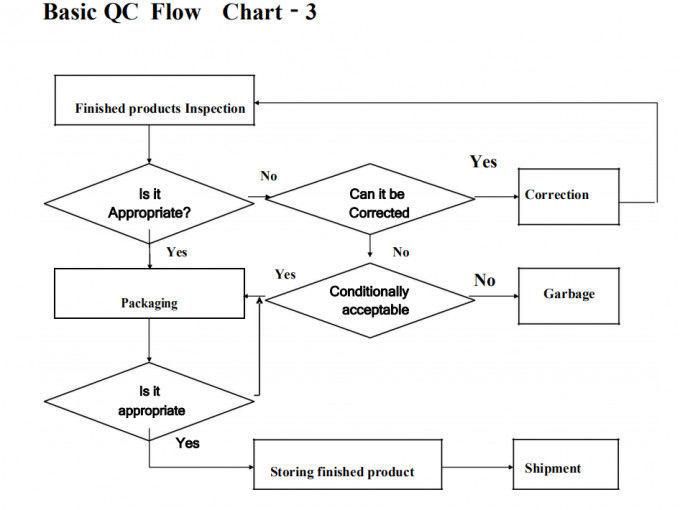

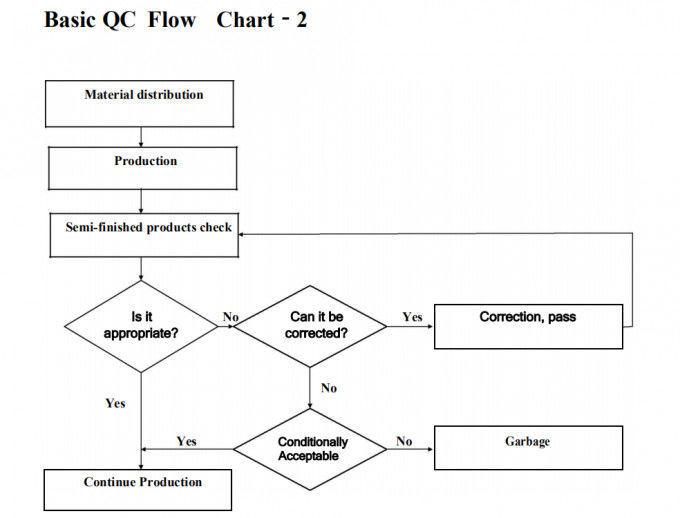

Here at TW-SCIE we provide you technical assistance and informations. All of fiber optic cable are tested by professional QC department. Including: Optical fiber performance, Mechanic performance, Environment performance, etc
GYTA53 optic fiber cable Testing
Mechanical testing of Optical Fibre Cables is done to determine the quality of the Optical Fiber
Cable to withstand mechanical stresses and strains likely to be encountered in its lifetime. Each
mechanical characteristics can be tested on testing machine for the particular test.
Competitive Advantages:
1.OEM fiber optic cable manufacturer .
2. Fiber brand : YOFC, CORNING.
3.Quality certification :ISO9001.ROSH.REACH.
4.Cooperate with Vietnam telecom, Thai telecom, Singapore telecom, Dubai telecom and other big projects.
5.Tw-scie known as the fiber optic cable manufacturer for the excellent products quality,competitive prices , fast delivery and good service.
Main Export Markets:
1.Central/South America
2.Mid East/Africa
3.Eastern Europe
4.North America
5.Asia
6.Western Europe
7.Australia

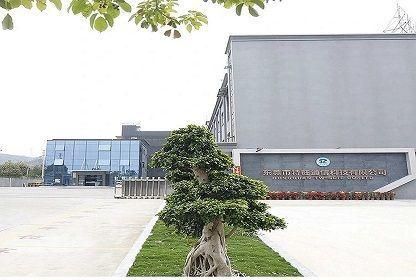

Established in 2002, Dongguan TW-SCIE Co., Ltd. is a comprehensive high-tech enterprise that integrates R&D, manufacture, sale of fiber optic communication products and network engineering. We have two manufacturing bases, one is in Donguan, Guangdong which occupies about 30000m2 with 20000m2 production factory, and the other is in Deyang, Sichuan which occupies 40000m2 with 20000m2 production factory. The annual production capacity of the two bases are 20 million core kilometers.
We are dedicated in R&D and application of fiber optic products and have obtained 5 invention patents and 58 utility model patents. The main products are indoor/outdoor fiber optic cable, ADSS, OPGW, FTTH drop cable, patch cord, pigtail and related accessories. The products conform to the China National Standard strictly and have obtained certificates of Anatel, CE, RoHs, Reach, ISO9001, ISO14004, OHSAS1801 and so on.
Why choose us?
1.Introduction of foreign advanced production equipment and technology, have nearly 20 years' production experience, 80% employees have more than 10 years experience, excellent enterprise culture and management team.
2.FAST SHIPPING from factory
3.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
4.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
5.We accept OEM. The cable size and material are customized. Your own logo and own design are welcome. We will produce according to ur requirement and description;
6.With nearly 20 years' experience in fiber optic cable,we already cooperated and established long-term business relationship with both domestic and overseas famous enterprise.
Dear Customers,
Many thanks for your time to view our fiber optic products, for MORE DETAILS & LATEST QUOTATION LIST, please feel free to contact us!
Thanks and Best regards,
