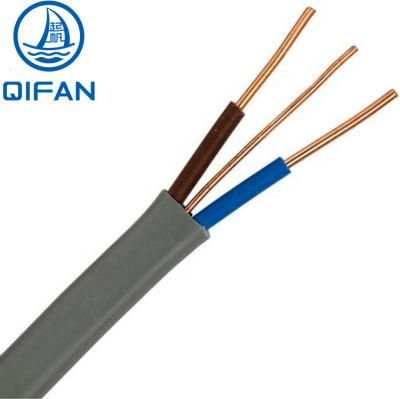

Qifan Cable PVC Insulated Flat Twin and Earth Wire
Shanghai QIFAN Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Building
- Conductor Material:Copper
- Sheath Material:PVC
- Insulation Material:PVC
Base Info
- Model NO.:wire
- Material Shape:Flat Wire
- Range of Application:Flame Retardant
- Certification:ISO9001, CE, UL, CCC
- Brand:QIFAN
- Color:Grey White
- Quality Team:50
- Transport Package:Rolls
- Specification:copper cable
- Trademark:Qifan
- Origin:China
- HS Code:8544492100
- Production Capacity:5000000000km
Description
Basic Info.
Model NO. wire Material Shape Flat Wire Range of Application Flame Retardant Certification ISO9001, CE, UL, CCC Brand QIFAN Color Grey White Quality Team 50 Transport Package Rolls Specification copper cable Trademark Qifan Origin China HS Code 8544492100 Production Capacity 5000000000kmProduct Description
Qifan Cable PVC Insulated Flat Twin and Earth WireApplication:
The cable is used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals, sub-ways, and public facilities
Construction:
1. Conductor - Plain annealed class 2 stranded or class 5 flexible copper
2. Fire Resistant layer - Mica Tape
3. Insulation - Low smoke halogen-free (LSZH)
Cross Section:
Class 2 copper conductor: 2C1.0~2C2.5mm2
Class 5 copper conductor: 2C1.0~2C1.5mm2
Temperature characteristics:
Conductor operating temperature: -15ºC~90ºC
Min. temperatrue laying condition: 0ºC
Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min
Color:
Red, black or according to customer requirements
Standard:
Cable design: IEC 60502-1
Conductor: IEC 60228
Fire resistant : BS6387 C
Other sizes can also be produced as you required.
Size | Conductor Strands | Insulation Thickness |
2x1.5mm2 | 7/0.52mm | 0.6mm |
2x2.5mm2 | 7/0.68mm | 0.7mm |
2x1.5mm2+1.5mm2 | 7/0.52mm | 0.6mm |
2x2.5mm2+2.5mm2 | 7/0.68mm | 0.7mm |
2x4mm2+2.5mm2 | 7/0.85mm+7/0.68mm | 0.8mm |
2x6mm2+2.5mm2 | 7/1.04mm+7/0.68mm | 0.8m |
- Imported equipment with experienced technical team

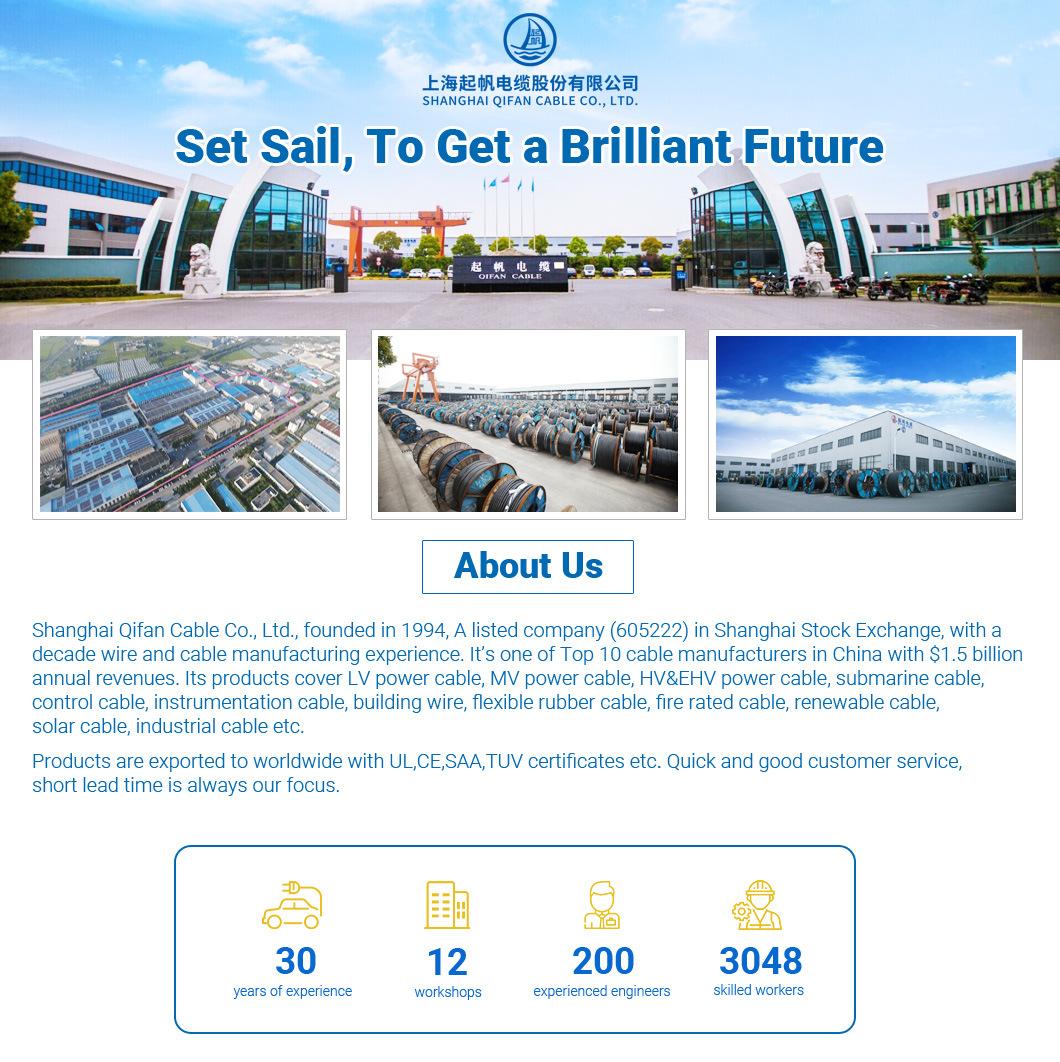

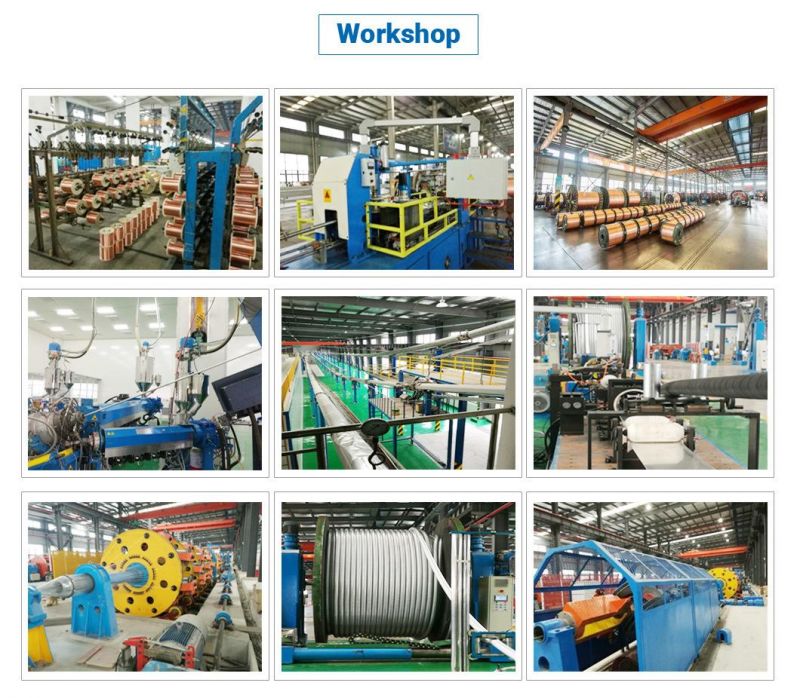

The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany - Complete certification system
Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate. - Perfect Production system
Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc. - Perfect Sales service system
Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
