• Model NO.：wire
• Material Shape：Flat Wire
• Range of Application：Flame Retardant
• Certification：ISO9001, CE, UL, CCC
• Brand：QIFAN
• Color：Grey White
• Quality Team：50
• Transport Package：Rolls
• Specification：copper cable
• Trademark：Qifan
• Origin：China
• HS Code：8544492100
• Production Capacity：5000000000km

Basic Info.

Model NO. wire Material Shape Flat Wire Range of Application Flame Retardant Certification ISO9001, CE, UL, CCC Brand QIFAN Color Grey White Quality Team 50 Transport Package Rolls Specification copper cable Trademark Qifan Origin China HS Code 8544492100 Production Capacity 5000000000km

Product Description

2.5mm2 4mm2 Flat Twin Cable Red and Black Copper Wire

Application:
The cable is used in fire extinguishing systems, sprinklers, control panels, and exit lights in high-rise buildings, hotels, hospitals, sub-ways, and public facilities

Construction:
1.    Conductor - Plain annealed class 2 stranded or class 5 flexible copper
2.    Fire Resistant layer - Mica Tape
3.    Insulation - Low smoke halogen-free (LSZH)

Cross Section:
Class 2 copper conductor: 2C1.0~2C2.5mm2
Class 5 copper conductor: 2C1.0~2C1.5mm2

Temperature characteristics:
Conductor operating temperature: -15ºC~90ºC
Min. temperatrue laying condition: 0ºC

Electrical Characteristics:
Rated voltage: 0.6/1 (1.2) kV
High voltage test: 3.5kV / 5min

Color:
Red, black or according to customer requirements


Standard:
Cable design: IEC 60502-1
Conductor: IEC 60228
Fire resistant : BS6387 C


Other sizes can also be produced as you required.

Size	Conductor Strands	Insulation Thickness
2x1.5mm2	7/0.52mm	0.6mm
2x2.5mm2	7/0.68mm	0.7mm
2x1.5mm2+1.5mm2	7/0.52mm	0.6mm
2x2.5mm2+2.5mm2	7/0.68mm	0.7mm
2x4mm2+2.5mm2	7/0.85mm+7/0.68mm	0.8mm
2x6mm2+2.5mm2	7/1.04mm+7/0.68mm	0.8m

------Our Feature------

1. Imported equipment with experienced technical team

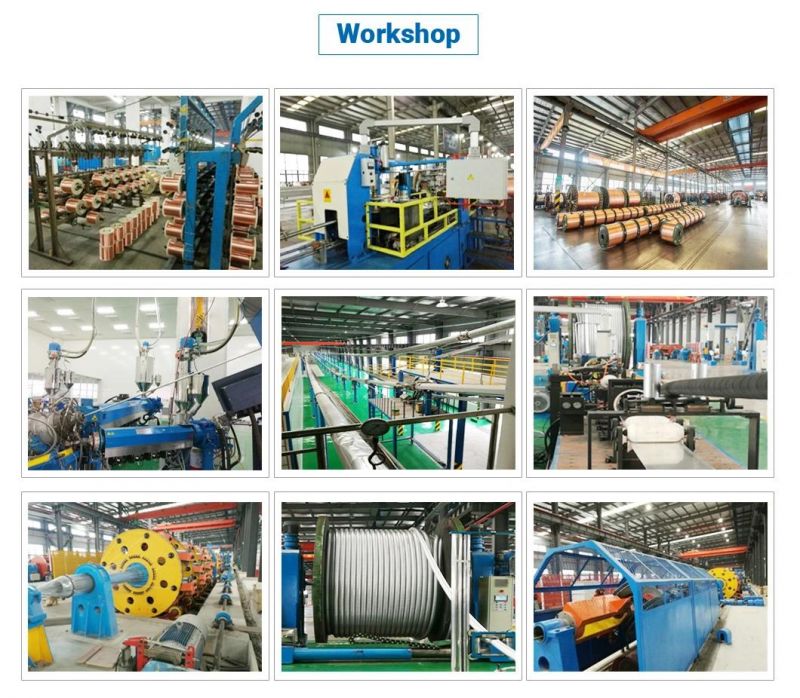

   The company have three plant and has 3048 employees which have 206 engineers. Plant has a series of imported production lines including Niehoff copper drawing lines, Troster Germany and Maillefer Finland 500KV VCV lines, stranding machine from Pourtier France, SKET Germany, Caballe Spain, 220KV and 35KV production line plus SIKORA X - RAY 8000 on-line eccentricity measuring unit from Germany
2. Complete certification system
   Qifan Cable have gotten ISO 9001, ISO 14001, OHSAS 18001. Plant passed TUV, VDE, UL, CE, SAA, BS etc. certificate.
3. Perfect Production system
   Qifan Cable products cover LV power cable, MV power cable, HV&EHV power cable, ABC cables, ACSR/AAC/AAAC/ACAR/OPGW ,submarine cable, control cable, instrumentation cable, building wire, flexible rubber cable, fire rated cable, renewable cable, solar cable, industrial cable, Lan cable, coaxial cable etc.
4. Perfect Sales service system
   Qifan Cable can offer the OEM/ODM service, Multiple products, Skilled Export sale engineer team, Reasonable price, Reliable quality, Friendly service. Qifan is always your best choice.
