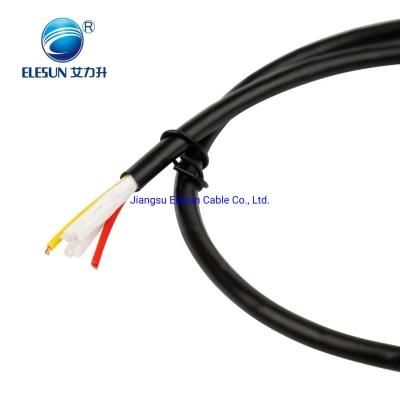

Manufacture Profibus Cable Universal Fbus 120ohm RS485 RS-485 RS232 Shielded Twisted Bus Cable
Jiangsu Elesun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Antenna Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：RS485
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：RS485
- Wire Core Material：Bare Copper Wire
- Certification：RoHS, CCC, UL
- Model：RS485
- Brand：Elesun
- 23AWG Bare Copper, 4 Pairs Twisteddata C：PVC,PE
- Jacket：PVC ,Lsoh
- Max Temperature：70ºC
- Rating Voltage：30V
- Transport Package：1000m,Roll,CTN
- Specification：29*29*26cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
Description
Jacket
Roots/Diameter(mm)
O.D.
Thickness
O.D(mm)
O.D.
Shielding
Thickness
O.D.
1*2*24AWG
7/0.20
0.60
0.4
1.40
2.80
Al Foil
Copper wire Braiding
1.0
5.5
2*2*24AWG
7/0.20
0.60
0.4
1.40
2.80
Al Foil
Copper wire Braiding
1.0
8.6
3*2*24AWG
7/0.20
0.60
0.4
1.40
2.80
Al Foil
Copper wire Braiding
1.0
9.0
4*2*24AWG
7/0.20
0.60
0.4
1.40
2.80
Al Foil
Copper wire Braiding
1.0
9.9
1*2*22AWG
7/0.25
0.75
0.5
1.75
3.50
Al Foil
Copper wire Braiding
1.0
6.2
2*2*22AWG
7/0.25
0.75
0.5
1.75
3.50
Al Foil
Copper wire Braiding
1.0
10.0
3*2*22AWG
7/0.25
0.75
0.5
1.75
3.50
Al Foil
Copper wire Braiding
1.2
10.9
4*2*22AWG
7/0.25
0.75
0.5
1.75
3.50
Al Foil
Copper wire Braiding
1.2
12.0
1*2*20AWG
7/0.30
0.90
0.6
2.10
4.20
Al Foil
Copper wire Braiding
1.0
6.9
2*2*20AWG
7/0.30
0.90
0.6
2.10
4.20
Al Foil
Copper wire Braiding
1.2
11.8
3*2*20AWG
7/0.30
0.90
0.6
2.10
4.20
Al Foil
Copper wire Braiding
1.3
12.6
4*2*20AWG
7/0.30
0.90
0.6
2.10
4.20
Al Foil
Copper wire Braiding
1.3
13.9
1*2*18AWG
7/0.40
1.20
0.75
2.10
4.20
Al Foil
Copper wire Braiding
1.0
8.1
2*2*18AWG
7/0.40
1.20
0.75
2.10
4.20
Al Foil
Copper wire Braiding
1.3
14.4
3*2*18AWG
7/0.40
1.20
0.75
2.10
4.20
Al Foil
Copper wire Braiding
1.3
15.2
4*2*18AWG
7/0.40
1.20
0.75
2.10
4.20
Al Foil
Copper wire Braiding
1.3
16.8
The cable adopts the structure of the screen or the main screen, which can reduce the mutual crosstalk and external interference between the circuits, and can improve the transmission quality of the cable signals in one frequency. Special occasions can also be used as required to protect the armor layer, to enhance the impact resistance of cables.
