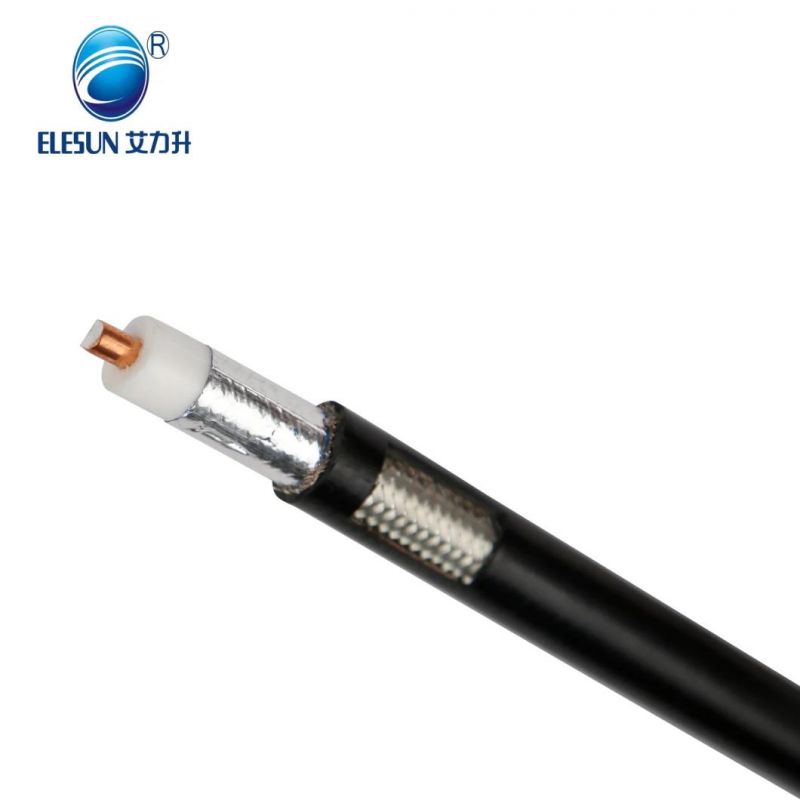

Low Loss 10d-Fb Alsr600 Radio Antenna Station 50 Ohm RF Coaxial Cable RF
Jiangsu Elesun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：10d-Fb
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：10D-FB
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：10d-Fb
- Brand：Elesun
- Material of Inner Conductor：Bc (Bare Copper)
- Structure of Inner Conductor：1,3.50mm
- Material of Insulation：Fpe(Foam PE)
- Diameter of Insulation：10.00mm
- 1st Shielding：Aluminum Tape
- Material of Braiding(2ND Shielding)：Tc (Tinned Copper)
- Structure of Braiding(2ND Shielding)：168,0.18mm
- Material of Jacket：PVC, PE, LSZH,Fr-LSZH
- Diameter of Jacket：13.0mm
- Working Temp：-20ºC,70ºC
- Impedance：50Ω±2
- Voltage：3000V
- Swr(0-2500MHz)：≤1.2
- Nominal Weight(Kgs/Km)：250
- Transport Package：250m,Roll,CTN
- Specification：51*50.5*21cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
Description
Description:. Conductor :Bare Copper
. Insulation Material: Foam PE
.1st Shielding: Aluminum Tape
.2nd Shielding: Tinned Copper Braiding
. Impedance:50Ω±2
.Jacket: PE, PVC, LSZH
. Color: Black,White
Typical Application: 10D-FB foam PE insulated coaxial cable specifications
