• Model NO.：OTDR-R600
• Sampling Resolution Ratio (M)：0.125 to 8
• Sampling Point：32K
• Distance Scope (Km)：0.3 To180
• Typical Real-Time Refreshing Duration (S：0.2
• Transport Package：Carton Box
• Specification：Loss threshold (dB): 0.05
• Trademark：Fiberlink
• Origin：China
• HS Code：9031809090
• Production Capacity：1000000 Per Month

Technical Specifications1Wavelength (nm)850/13001310/15501310/1490/15501625Dynamic range (dB)223/21 32/3038/36 32/30/30  344365 Pulse width (ns)5,20,40,80,160,320,640,12805,20,40,80,160,320,640,1280,2560,5120,10240,20480Event blind zone (m)33m3mAttenuation blind zone (m)313m13mLinearity (dB/dB)±0.05 dB/ dBLoss threshold (dB)0.05Loss resolution ratio (dB)0.01Sampling resolution ratio (m)0.125 to 8Sampling point32KDistance uncertainty  (m)±(1 m + 5×10-5× distance + sampling interval)Distance scope (km)0.3 to180Typical real-time refreshing duration (s)0.2Memory capacity of traceSD Card (4G), > 10000 piecesDuration of measurementDefined by user; 5sec, 10sec, 15sec, 30sec, 1min, 2min, and 3min are selectableGeneral specification Interface categoryDimension (H×W×D)150×235×66 Optical interfaceFC/UPC (PC, and APC are selectable)Weight1.5kg Data interfaceUSB interface, SD card interfaceTemperatureRunning temperature -10ºC to 50ºC Memory temperature -40ºC to 70ºC Visible failure orientation VFLRelative humidity0% to 95% (non condensation) Wavelength650nmPower supplyLithium battery; continuing working duration ≥ 8 hours Output power (dBm)≥-3Warranty period12 months Maximum testing distance3kmRemarks: 1. The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber refractivity.
2. Dynamic range is the data measured under the condition of the maximum pulse width and 3 minutes of average time. Dynamic range is the data measured under the condition of 180km/20480ns/3min.
3. Measuring conditions of blind zone: reflection event is within 4Km, reflection strength < -35dB. Measured by the minimum pulse width.
4. Dynamic range measured when there is filter.
5. Dynamic range measured when there is no filter.


 OTDR-R600 OTDR Meter:
Automatic Measurement Mode: Only by selecting the measurement wavelength, the measurement parameters are automatically set, and the trace data is automatically saved and automatically analyzed.

Multi-wavelength Measurement Mode: In the parameter setting, the wavelength can be automatically switched into the multi-wavelength measurement mode. Under this mode, the analysis can be achieved on the attenuation state of the same fiber section under different wavelengths.

Trace Fixing Function: It can achieve the same-screen comparison and display of one trace with another real-time trace or the trace under the average measurement, which is very useful for the installation of multi-core fiber or the checking of the aged fiber in the optical fiber network already been installed.

Multi-wavelength Analysis Function: It can achieve the comparison, display and analysis functions of any trace file.

FTTx online testing, able to identify the splitter and the fiber's end.

Large-capacity lithium-ion rechargeable battery, with the long standby time over 8 hours.

Bellcore file format (.sor), with the storage of greater than 10,000 traces.

Communication Light Detection: It can effectively protect the test instrumentation and communication equipments.

Connection State Detection: To promptly know the connection status of the instrumentation and the fiber for test.

The Switching of Measurement Mode: Through the shortcut key operation, it can achieve the flexible switching of real-time measurement mode and average measurement mode.

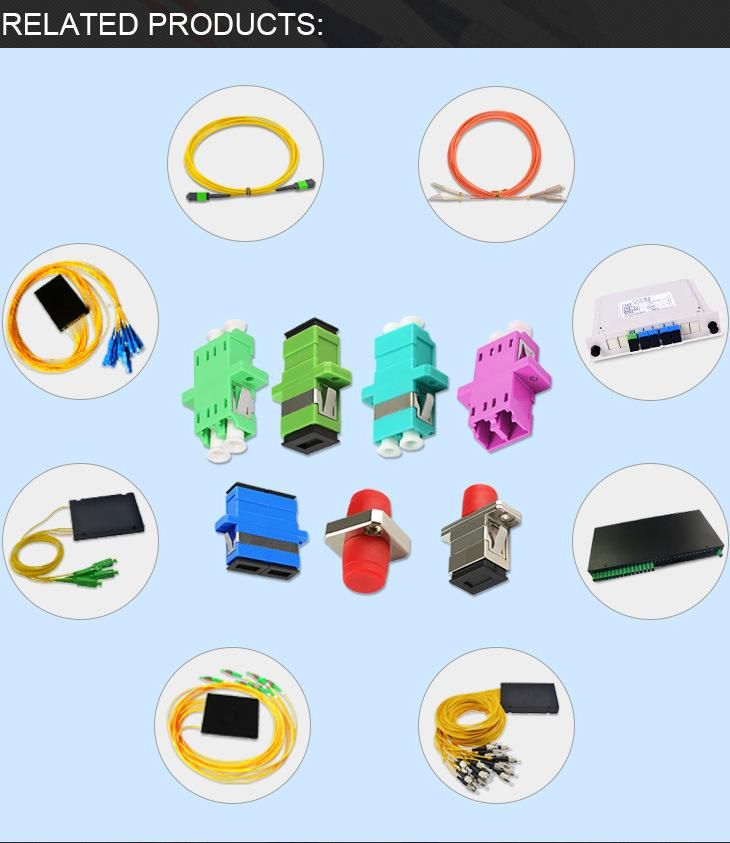

Related products

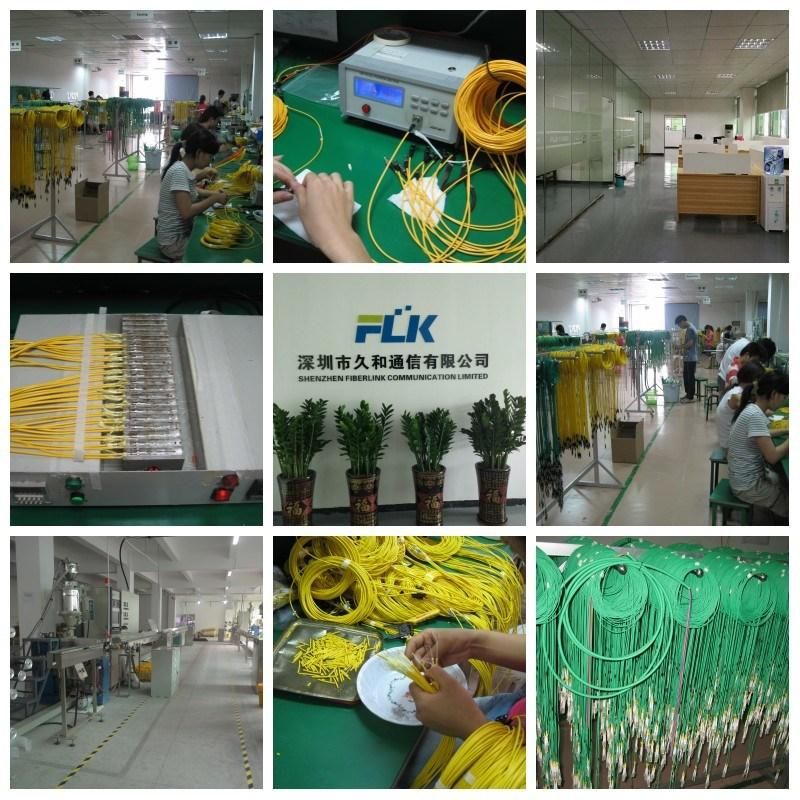

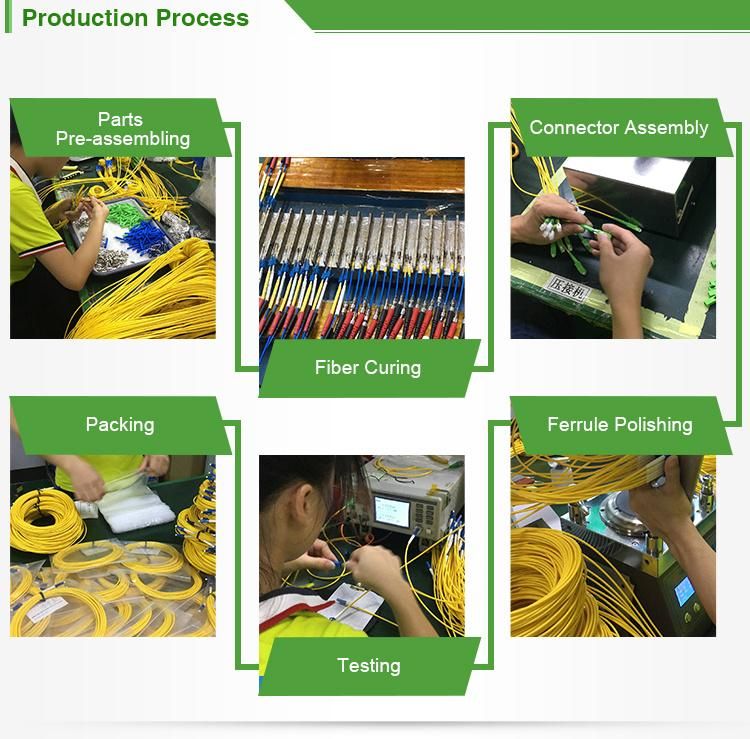

Our fiber patch cord production line:
