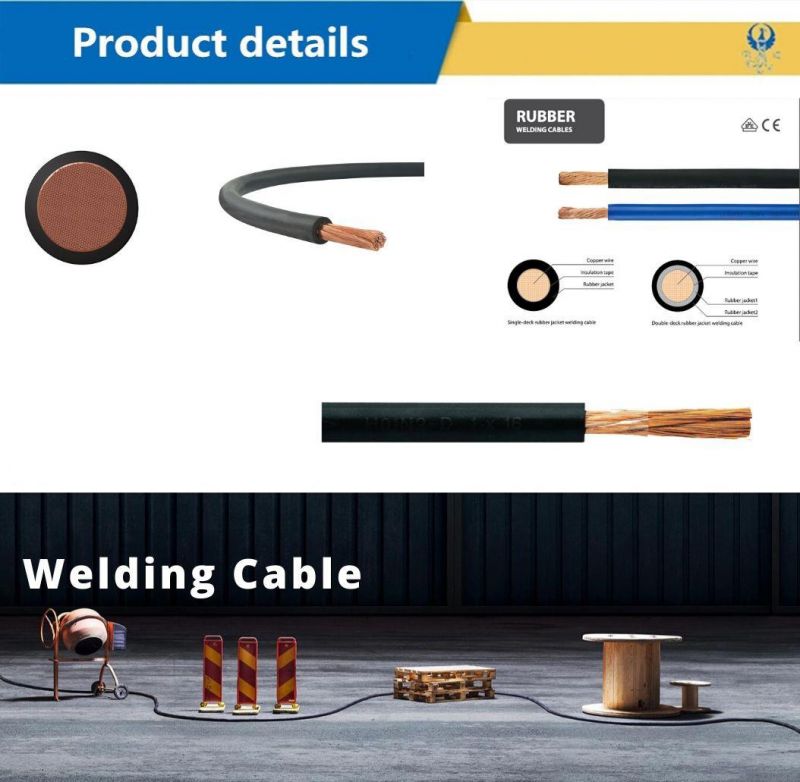

Ho1n2epr Csp 0361 Tq H0fr Welding Cable Single Core Epr Insulated Csp Sheathed Cable Control Electric Cable Coaxial Cable Waterproof Rubber Wire Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, Installation in Ground, Indoors, Outdoors.
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Epr Gp4(Ethylene Propylene Rubber) to BS7655
- Sheath Material：Polychloroprene Rubber (Neoprene) Sheath Em5, Hofr
- Material Shape：Round Wire
Base Info
- Model NO.：Power Cables
- Wire Core Material：Extra Fine Bare,Tinned Copper Strands
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：0361tq
- Brand：Feiya
- Temperature Range：-25 Degree to +85 Degree
- OEM&ODM：Yes
- Rated Voltage：100V
- Operating Environment：Domestic Premises, Such as Kitchens and Offices
- Other Service：Can Be Customized
- Colors：Can Be Customized
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：BS 6360 CL-6, or CL-5 (120mm and above)
- Trademark：Feiya
- Origin：China
- HS Code：8544
- Production Capacity：80000 Meter,Meters Per Month
Description
AWG(No of Strands/Strand Diameter)
No. of Cores x Nominal Cross Sectional Area
Nominal
Thickness of Insulation
Nominal
Thickness of Sheath
Nominal Overall Diameter
Nominal Cable Weight
No. x mm²
mm
mm
mm
kg/km
6(903/35)
1×16
1.2
2
11.0±0.5
230
4(1407/35)
1×25
1.4
2
12.5±0.5
325
2(1974/35)
1×35
1.4
2
14±0.5
440
1(2830/35)
1×50
1.6
2.2
16.5±0.5
600
2/0(3952/35)
1×70
1.6
2.4
18.5±0.5
830
3/0(5370/35)
1×95
1.8
2.6
21.0±0.5
1110
4/0(614/24)
1×120
1.8
2.8
23.5±0.5
1375
300MCM(765/24)
1×150
2
3
26±0.5
1680
350MCM(944/24)
1×185
2.2
3.2
27.5±0.5
2050
500MCM(1225/24)
1×240
2.4
3.2
30.5±0.5
2630
