RF 7D-Fb 8d-Fb 9d-Fb 10d-Fb 12D-Fb Low Loss High Quality Coaxial Cable
Jiangsu Elesun Cable Co., Ltd.- Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable, Antenna Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：9d-Fb
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：9D-FB
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, CCC, UL
- Model：9d-Fb
- Brand：Elesun
- Material of Inner Conductor：Bc (Bare Copper)
- Structure of Inner Conductor：1,3.20mm
- Material of Insulation：Fpe(Foam PE)
- Diameter of Insulation：9.00mm
- 1st Shielding：Aluminum Tape
- Material of Braiding(2ND Shielding)：Tc (Tinned Copper)
- Structure of Braiding(2ND Shielding)：168,0.15mm
- Material of Jacket：PVC, PE, LSZH,Fr-LSZH
- Diameter of Jacket：12.20mm
- Working Temp：-20ºC70ºC
- Impedance：50Ω±2
- Voltage：2500V
- Swr(0-2500MHz)：≤1.2
- Nominal Weight(Kgs/Km)：205
- Transport Package：250m,Roll,CTN
- Specification：51*50.5*21cm
- Trademark：ELESUN
- Origin：China
- HS Code：8544200000
- Production Capacity：10000m,Day
Description

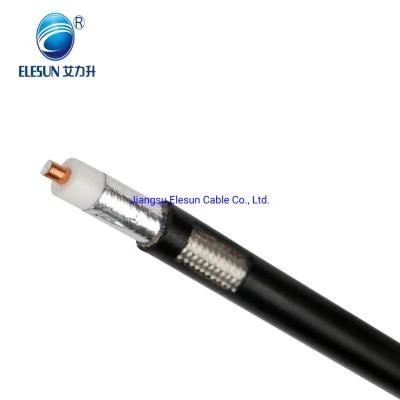

SYWV50-9(9D-FB) foam PE insulated coaxial cable specificationsMaterial of Inner Conductor BC (Bare Copper) Structure of Inner Conductor 1/3.20mm Material of Insulation FPE(Foam PE) Diameter of Insulation 9.00mm 1st Shielding Aluminum Tape Material of Braiding(2nd Shielding) TC (Tinned Copper), Structure of Braiding(2nd Shielding) 168/0.15mm Material of Jacket PVC, PE, LSZH,FR-LSZH Diameter of Jacket 12.20mm Working temp -20ºC/70ºC Impedance 50Ω±2 Voltage 2500V SWR(0-2500MHz) ≤1.2 Nominal Weight(KGS/KM) 205
