• Model NO.：PV1-F
• Material Shape：Round Wire
• Range of Application：Mine
• Certification：ISO9001, CE, UL, CCC
• Brand：Mafal
• Rated Voltage：300,500V 450,750V 600,1000V
• Wire Type：Solar Cable
• Jacket：Nylon
• Gasoline & Oil Resistant：Mtw 90
• Sheath：PVC
• Customized Service：Yes
• Transport Package：Nude
• Specification：0.75mm2----150mm2
• Trademark：MAFLA
• Origin：Ningbo
• Production Capacity：20000m,Week

Basic Info.

Model NO. PV1-F Material Shape Round Wire Range of Application Mine Certification ISO9001, CE, UL, CCC Brand Mafal Rated Voltage 300/500V 450/750V 600/1000V Wire Type Solar Cable Jacket Nylon Gasoline & Oil Resistant Mtw 90 Sheath PVC Customized Service Yes Transport Package Nude Specification 0.75mm2----150mm2 Trademark MAFLA Origin Ningbo Production Capacity 20000m/Week

Product Description

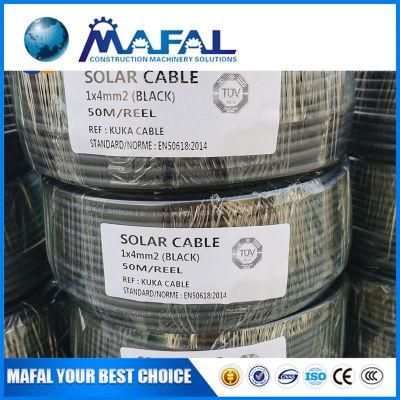

XLPE/XLPO solar wire PV1-F solar pv cable 4mm2 6mm2 for solar panelProduct Description

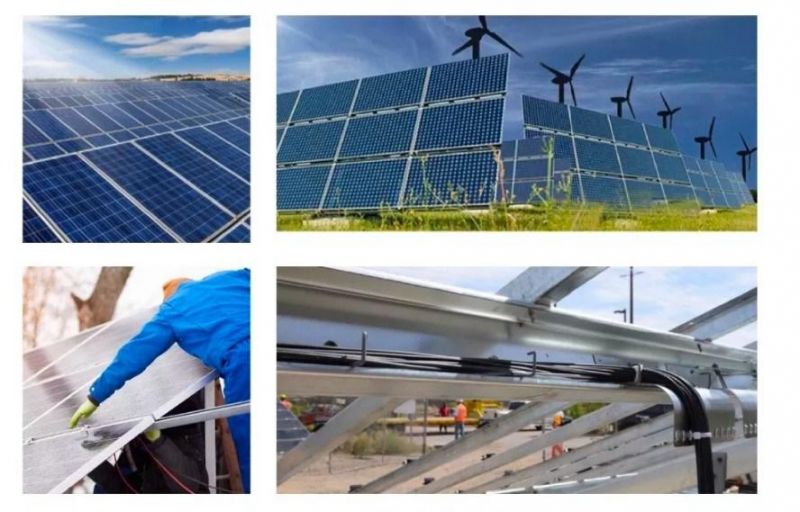

Solar cable is the interconnection cable used in photovoltaic power generation. A solar cable interconnects solar panels and other electrical components of a photovoltaic system. Solar cables are designed to be UV resistant and weather resistant. It can be used within a large temperature range and are generally laid outside.

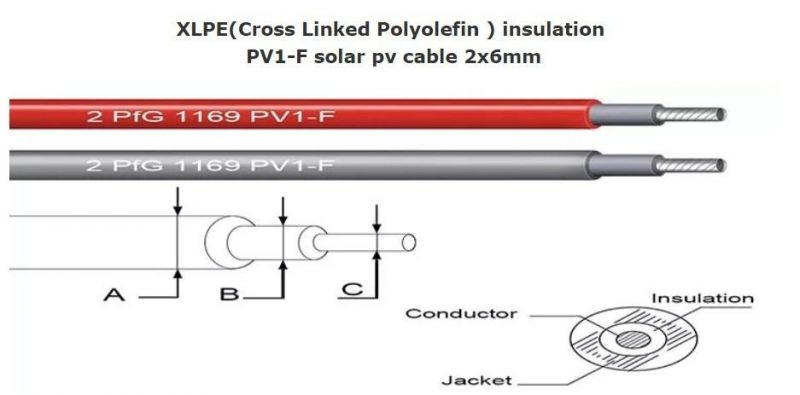

Conductor: Tinned copper, elecreical property & Structure in accordance with EN60228 Class 5.

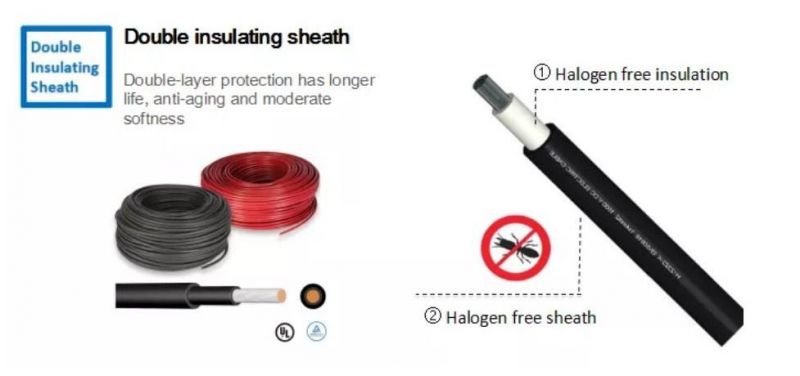

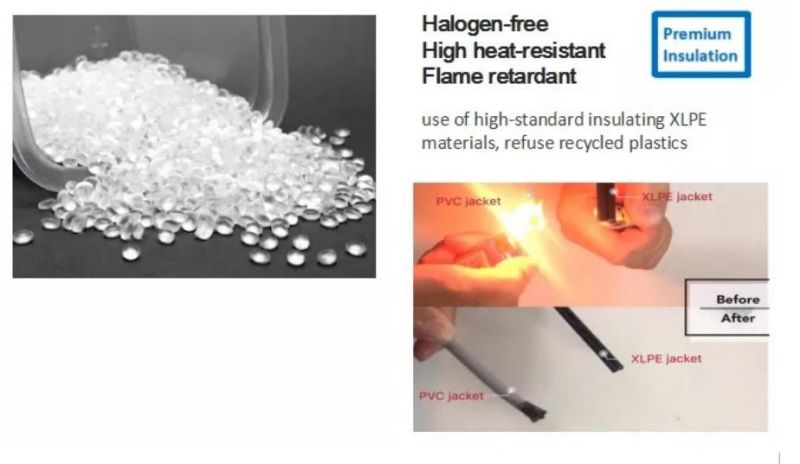

Insulation: LSZH electron-beam cross-linked Polyolefin copolymer ROHS material.
Outer sheath: LSZH & UV-resistant electron-beam cross-linked Polyolefin copolymer ROHS material.
Colour: Prior colour black,or as per customer's request.PV1-F 1~35mm2 Dc Solar PV Cable.

Characteristics

Cross section(mm2)	Conductor Construction	Outer(mm)	Resistance Max.	Current Carring Capacity
1*1.5	30/0.25	4.90	13.30	30
1*2.5	50/0.25	5.45	7.89	41
1*4	56/0.3	6.10	4.75	50
1*6	84/0.3	7.20	3.39	70
1*10	142/0.3	9.00	1.95	98
1*16	228/0.3	10.20	1.24	132
1*25	361/0.3	12.00	0.795	176
1*35	525/0.3	13.8	0.565	218
1*50	720/0.3	14.8	0.393	280
1*70	988/0.3	16.9	0.277	350
1*95	1349/0.3	18.7	0.21	410
1*120	1691/0.3	20.7	0.164	480

Cross section(mm2)	Conductor Construction	Outer(mm)	Resistance Max.	Current Carring Capacity
2 x 1.5	30/0.25	8.3 ± 0.2	13.30	30
2 x 2.5	50/0.25	9.2 ± 0.2	7.98	41
2 x 4	56/0.3	12.0 ± 0.2	4.75	50
2 x 6	84/0.3	13.5 ± 0.2	3.39	70
2 x 10	142/0.3	17.6 ± 0.2	1.95	98
2 x 16	228/0.3	19.8 ± 0.2	1.24	132



Conductor	Tinned Fine Re Copper Strand, according to VDE0295/IEC60228. Class 5
Insulation	Polyolefin Copolymer electron-beam coss-linked
Sheath Jacket	Polyolefin Copolymer electron-beam coss-linked
Nominal Voltage	1000V~1800V DC
Test Voltage	6500V, 50Hz, 5Min
Temperature Rating	-40°C-120°C ,More than 25 Years
Fire Performance	IEC 60332-1
Smoke Emission	IEC61034, EN 50286-2
Low Fire Load	DIN 51 900
Certification	TUV
