• Model NO.：up to 3500MCM,1750mm2
• Sectional Area：up To1500mm2
• Delivery Time：10 Days
• Delivery Length：2km,Drum or at Customer Reuest
• Type：Bare Conductor,Power Transmission
• Transport Package：Wooden or Wooden-Steel Drum
• Specification：up to 1500 sqmm for AAC
• Trademark：Zhengzhou Yifang Cable Co., Ltd.
• Origin：Zhengzhou, China
• HS Code：7614
• Production Capacity：5, 000, 000km,Month

Basic Info.

Model NO. up to 3500MCM/1750mm2 Sectional Area up To1500mm2 Delivery Time 10 Days Delivery Length 2km/Drum or at Customer Reuest Type Bare Conductor/Power Transmission Transport Package Wooden or Wooden-Steel Drum Specification up to 1500 sqmm for AAC Trademark Zhengzhou Yifang Cable Co., Ltd. Origin Zhengzhou, China HS Code 7614 Production Capacity 5, 000, 000km/Month

Product Description

Specifications

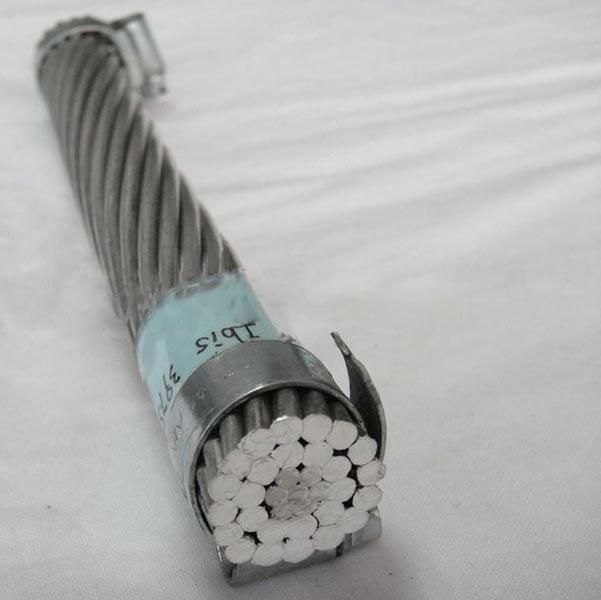

Aluminum conductor steel reinforced.
Biggest ACSR conductor supplier for China State Grid..
ACSR(Aluminum Conductor Steel Reinforced) is widely used in the overhead power distribution system of our country.
We can supply this conductor according to different recognized standards,such as IEC61089,BS215,ASTM B232,CSA C49,DIN48204,JIS C3110, customer special specification also can be satisfied.
The data sheets below show the most common standards,British standard.
British Sizes BS EN 50182:2001
STRANDARD:
BS 215 PART 2
code name: mole ,aquirrel ,gophel , weasel , fox , ferret , rabbit , minik , skunk , beaver , horse , racoon , otter , cat , hare , dog , coyote
ASTM B232
code name: turkey , swan , swanate , sparrow, robin , raven , quail , pigeon , penguin , waxwing , partridge , ostrich , merlin ,linner , oriole , chickadee , brant , ibis ,lark ,pelican , flicker , hawk ,hen ,osprey , parakeet , dove ,eagle ,peacock , squab , wood duck , teal , rook , grosbeak , swift ,scoter

Item Description

AAC-All aluminum conductors:
    All aluminum conductors are the most favored type for use in the construction of relatively short span distribution schemes and are in common use on lines for voltage up to 60 kV.
    Another frequent application for all aluminum conductors is in flexible busbar connections.
    Althou aluminum to copper connections can be made,it is better to use aluminum conductor for service connections,as varous forms of covered cable being available for this purpose.
    The data sheets show the most common sizes of conductors but other sizes,to any recognized standards or customer specification can also be supplied.
    AAC insulated with xlpe or pvc can be supplied as per the customers' requirement.

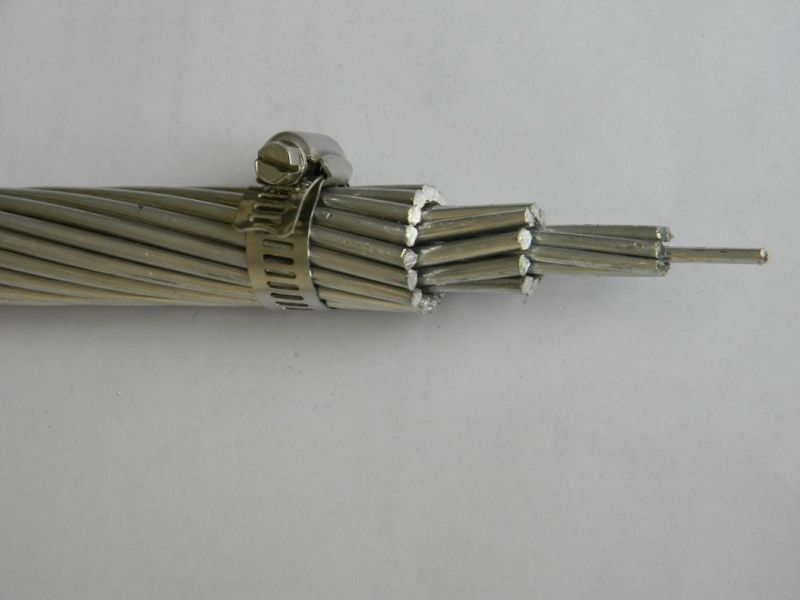

ACSR-Aluminum conductor steel reinforced
    Construction:
         The mixed construction of ACSR makes it a very flexible medium from a design point of view.By varying the relative proportions of aluminum and steel the ideal conductor for any particular application can be produced.
    Protection against corrosion
         A coating of non-oxidizing grease is normally applied to the steel cores of all conductors,in addition to the protection offered by the galvanizing of the steel wires.One or more layers of the aluminum wires can if required,be supplied partiallly or fully greased.


AAAC-All aluminum alloy conductors
    This section deals with heat-treatable magnesium silicon type aluminum alloys to BS EN 50182,the electrical and mechanical properties of which all fall within the values suggested by Publication 104 of the international Electro technical Commission.Conductors to all other recognized specifications can also be supplied.
    The alloys referred to have higher strength but lower conductivity than pure aluminum.Being lighter,alloy conductors can sometimes be used to advantage in place of the more conventional ACSR;having lower breaking loads than the latter,their use becomes particularly favorable when ice and win loadings are low.


Size	Calculated area	Stranding and wire diameter	Overall diameter	Linear mass	Rated strength	Max. DC resistance at 20ºC
mm 2	mm 2	mm	mm	kg/km	daN	Ω/km
16	15.89	7/1.70	5.1	44	290	1.8018
25	24.25	7/2.10	6.3	67	425	1.1808
35	34.36	7/2.50	7.5	94	585	0.8332
50	49.48	7/3.00	9.0	135	810	0.5786
50	48.36	19/1.80	9.0	133	860	0.5950
70	65.82	19/2.10	10.5	181	1150	0.4371
95	93.27	19/2.50	12.5	256	1595	0.3084
120	117.00	19/2.80	14.0	322	1910	0.2469
150	147.10	37/2.25	15.2	406	2570	0.1960
185	181.60	37/2.50	17.5	501	3105	0.1587
240	242.54	61/2.25	20.2	670	4015	0.1191
300	299.43	61/2.50	22.5	827	4850	0.09650
400	400.14	61/2.89	26.0	1105	6190	0.07221
500	499.83	61/3.23	29.1	1381	7600	0.05781
625	626.20	91/2.96	32.6	1733	9690	0.04625
800	802.10	91/3.35	36.8	2219	12055	0.03611
1000	999.71	91/3.74	41.1	2766	14845	0.02897

Our company

Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

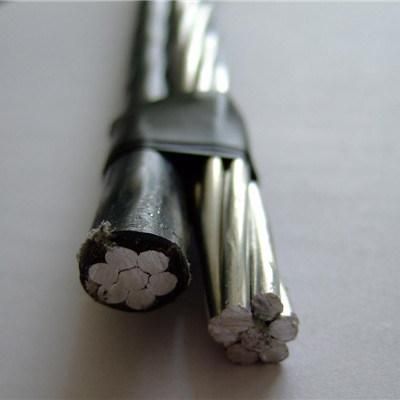

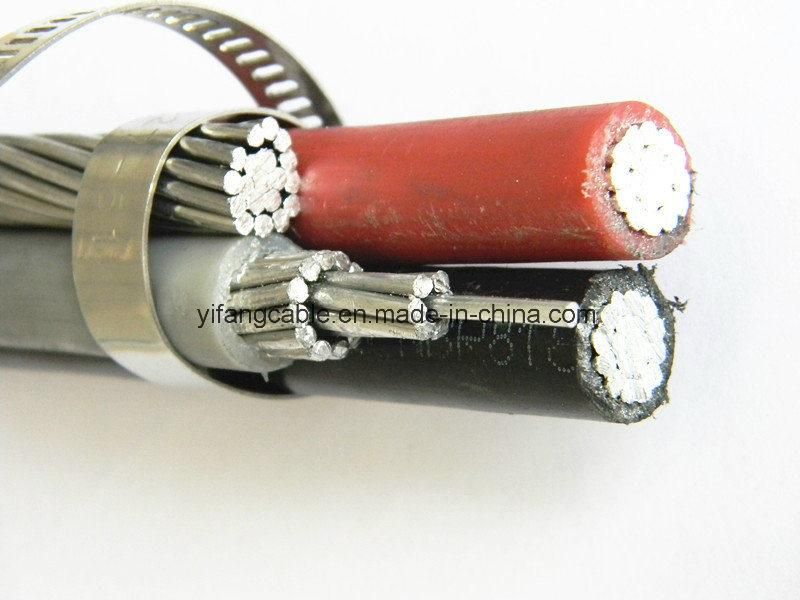

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company's specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.


Our certificate


FAQ

1.Q:Are you a factory or trading company?
 A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
 A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
 A: Contact me on below,Determin sample and address for shipping.


4.Q:Have you ever supplied cables to our country?
 A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry.

7.Q:How long is your delivery time?
 A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
