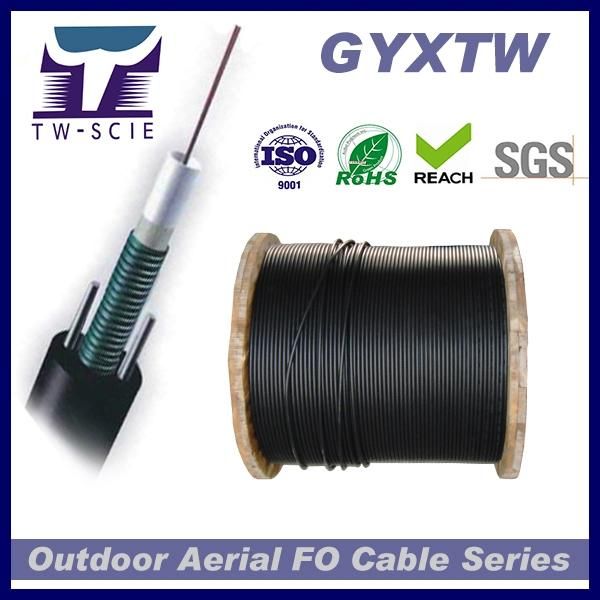

Single Mode Unitube Fiber Cable for Aerial Installation GYXTW
DONGGUAN TW-SCIE CO., LTD.- Application：Communication
- Type：Single-mode Fiber
- Connection Structure：Fiber Cable
- Material Shape：Round Wire
- Allowed Lateral Pressure：>1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：GYXTW
- Core：Multicore
- Certification：RoHS, CE, ISO9001
- Brand：Tw-Scie or OEM

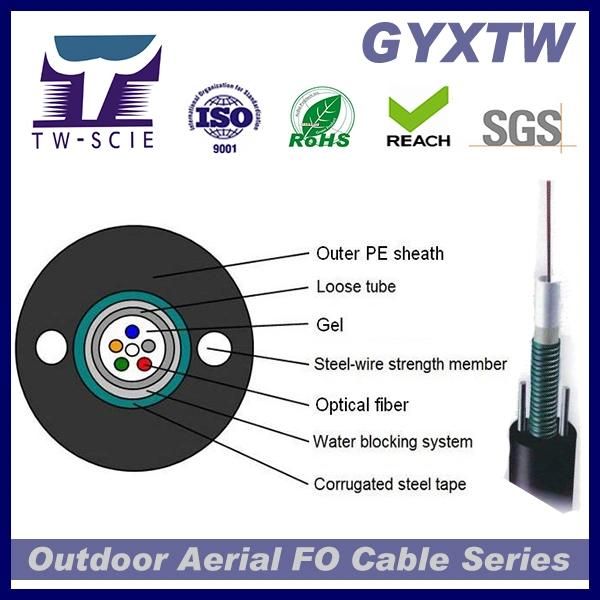

- Sheath Material：PE
- Stranding Member：Steel Wire or FRP
- Armour Material：Corrugated Steel Tape
- Waterblocking Material：Water Blocking Tape or Filling Compound
- Brand Name of Fiber：Corning, Yofc, Draka....as Requiremen
- Color of Fiber /Loose Tube：Blue, Orange, Green, Brown etc
- Applicable Fields：Long Distance Communication and LAN
- Installation Style：Aerial
- Transport Package：Wooden Drum
- Specification：ISO, ROHS, REACH, SGS
- Trademark：TW-SCIE,OEM
- Origin：China (Mainland)
- HS Code：8544700000
- Production Capacity：200km Per Day
Description
Single Mode Fiber Cable Cable Performance:
| Item | Testing | Test Method | Test Result |
| 1 | Tensile strength IEC 60794-1-E1 | Long-term:1500N Short-tern: 600N Cable length: ≥50m | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 2 | Impact IEC 60794-1-E4 | Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 3 | Repeated Bending IEC 60794-1-E6 | Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 4 | Torsion IEC 60794-1-E7 | Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 5 | Water Penetration IEC 60794-1-F5B | Water height: 1m Cable length: 3m Keeping time: 24hours | No water leaked from the opposite end of cable |
| 6 | Temperature IEC 60794-1-F1 | Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times | Loss change≤0.1dB@1550nm No fiber break and no sheath damage |
| 7 | Compound flow IEC 60794-1-E14 | Sample length: 30cm Temperature: 70ºC±2ºC Keeping time: 24hours | No compound flow |
| 8 | Sheath high voltage test | On line test DC 12t kV(t-sheath thickness mm) | No sheath broken down |
Single Mode Fiber Cable More Pictures:
