• Model NO.：GYXTW
• Core：Multicore
• Certification：RoHS, CE, ISO9001
• Brand：Tw-Scie or OEM
• Sheath Material：PE
• Stranding Member：Steel Wire or FRP
• Armour Material：Corrugated Steel Tape
• Waterblocking Material：Water Blocking Tape or Filling Compound
• Brand Name of Fiber：Corning, Yofc, Draka...as Requiremen

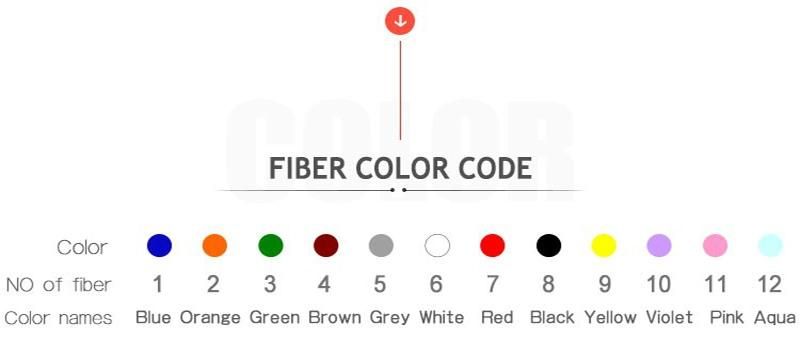

• Color of Fiber /Loose Tube：Blue, Orange, Green, Brown etc
• Applicable Fields：Long Distance Communication and LAN
• Installation Style：Aerial
• Transport Package：Wooden Drum
• Specification：ISO, ROHS, REACH, SGS
• Trademark：TE-SCIE,OEM
• Origin：China (Mainland)
• HS Code：8544700000
• Production Capacity：200km Per Day

Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiberCharacteristicsConditionsSpecified ValuesUnitsOptical Characteristics   Mode field diameter (MFD)1310nm
1550nm9.2±0.4
10.4±0.8µm
µmCut-off wavelength (λcc) ≤1260nmAttenuation coefficient1310nm
1383nm
1550nm<0.35
<0.35
<0.22dB/km
dB/km
dB/kmMacro bending lossφ75mm, 100circles, at 1550nm≤0.1dBAttenuation non-uniformity ≤0.05dBDispersion coefficient1288~1339nm
1271~1360nm
1550nm≤3.5
≤5.3
≤18Ps/(nm.km)
Ps/(nm.km)
Ps/(nm.km)Zero dispersion wavelength 1300~1324nmMax zero dispersion slope ≤0.093Ps/(nm².km)Group index of refraction (typical value)1310nm
1550nm1.466
1.467 Geometric characteristic   Cladding diameter 125.0±1.0µmCore/cladding concentricity error ≤0.8µmCladding non-circularity ≤1.0%Coating diameter 245.0±10µmCladding/coating concentricity error ≤12.0µmCoating non-circularity ≤8%Diameter of colored coating 250.0±15µmMechanical characteristic   Curling (radius) ≥4mProof stress >0.69GpaCoating strip forceAverage value
Peak value1.0-5.0
1.3-8.9N
NDynamic stress corrosion susceptibility parameter (n_d value) ≥20

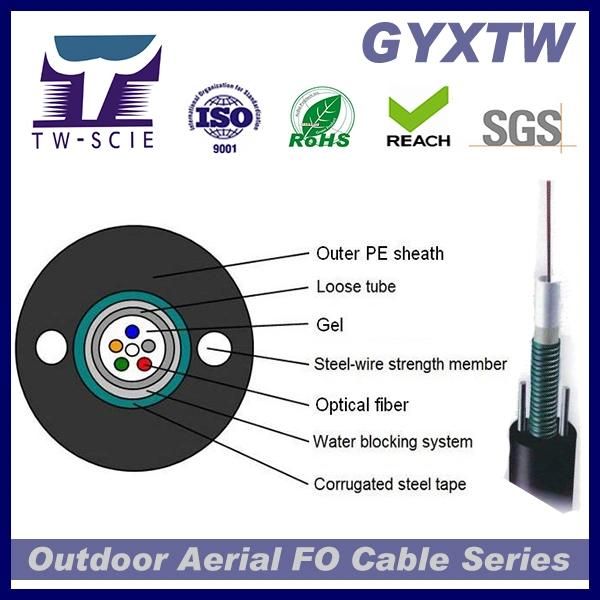

GYXTW1. Fiber count4-1820-242. Cable Diameter7.4±0.2mm8.0±0.2mm3. Cable Weight56KG69KG4. Loose Tube -MaterialPBT-Outer diameter2.0 mm2.6mm-Thickness0.3mm-Type of filling compoundJelly5.Strength member -MaterialSteel wire-Outer diameter1.0 mm-Number2 pcs6.Armor -MaterialCorrugated steel tape7. Water-blocking system -MaterialFilling Compound8.Outer Sheath -MaterialHDPE-Thickness1.8mm±0.2mm9. Sheath marking -Type of markingLaser printing
Aerial Fiber Optic Cable Cable Performance:

Item	Testing	Test Method	Test Result
1	Tensile strength IEC 60794-1-E1	Long-term:1500N Short-tern: 600N Cable length: ≥50m	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
2	Impact IEC 60794-1-E4	Height: 1m Weight: 1kg Impact spot: ≥5 Impact cycle: at lease 3 cycle per spot	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
3	Repeated Bending IEC 60794-1-E6	Bending diameter: 25X the cable outer diameter Applied load: 25kg Bending cycle: 30times Bending speed: 1 cycle per 2s	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
4	Torsion IEC 60794-1-E7	Torsion length: 1m Applied load: 25kg Torsion angle: ±90 or +180 Twist cycle: ≥10 times	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
5	Water Penetration IEC 60794-1-F5B	Water height: 1m Cable length: 3m Keeping time: 24hours	No water leaked from the opposite end of cable
6	Temperature IEC 60794-1-F1	Temperature step:+20°C->-40°C°C >+70°C->+20°C Keeping time: 24hours per each step Cycle:2times	Loss change≤0.1dB@1550nm No fiber break and no sheath damage
7	Compound flow IEC 60794-1-E14	Sample length: 30cm Temperature: 70ºC±2ºC Keeping time: 24hours	No compound flow
8	Sheath high voltage test	On line test DC 12t kV(t-sheath thickness mm)	No sheath broken down

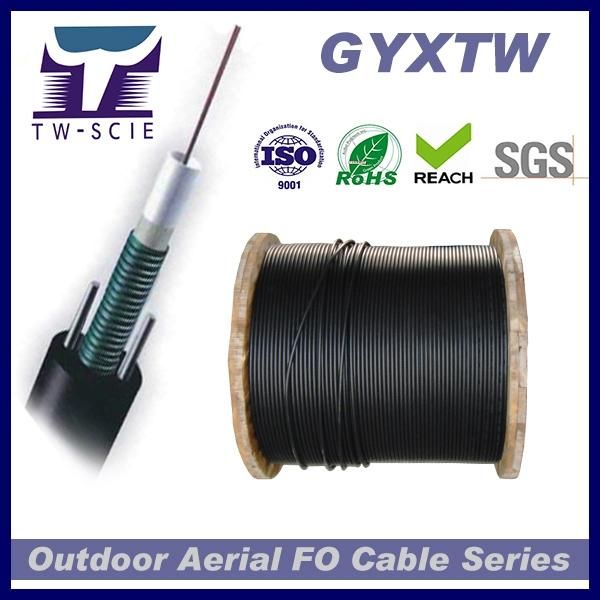

Aerial Fiber Optic Cable More Pictures:




Company Overview:




Related Products:




Tag: Armoured optical fiber cable, central tube fiber optic cable, Aerial cable, Long distance communication fiber optic cable, Unitube fiber optic cable,Fiber Optic Cable,Optical Fiber Cable, Fiber Cable, Optical Cable


For more details please feel free to contact me. Any of your inquiry will reply within 24hrs.
