• Model NO.：ABC Cable
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001, CE, CCC, RoHS
• Brand：Hnbf Cable
• Color：Black, Red or Others
• Rated Voltage：0.6,1kv
• Model Type：IEC Aluminium Cable
• Standard：GB, IEC, ASTM, BS, DIN or as Your Request
• Logo：According to Your Requirement
• Transport Package：Wooden Drums
• Specification：6mm2, 10mm2, 25mm2, 35mm2.
• Trademark：HNBF Cable
• Origin：China
• HS Code：8544492100
• Production Capacity：2500km,Month

Basic Info.

Model NO. ABC Cable Material Shape Round Wire Range of Application Overhead Certification ISO9001, CE, CCC, RoHS Brand Hnbf Cable Color Black, Red or Others Rated Voltage 0.6/1kv Model Type IEC Aluminium Cable Standard GB, IEC, ASTM, BS, DIN or as Your Request Logo According to Your Requirement Transport Package Wooden Drums Specification 6mm2, 10mm2, 25mm2, 35mm2. Trademark HNBF Cable Origin China HS Code 8544492100 Production Capacity 2500km/Month

Product Description

Product Application

Aerial Bundle Conductor (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost. This system is ideal for rural distribution and it is especially perfect for installation in difficult terrains such as hilly areas, forest areas, coastal areas etc. ABC is also considered to be ideal for power distribution in congested urban areas with narrow lanes and by-lanes. In developing urban complex, ABC cable is the first choice because of its flexibility for re-routing as demanded by changes in urban development plan.

Operating Features

Rated voltage Uo/U is 0.6/1kV
Max. Continuous permissive working temperature of conductor: PVC insulation should be not more than 70, and XPLE insulation should be not more than 90.
The installation temperature of cable should be not less than -20
When overall diameter of cable(D)is less than 25mm,permissive bending radius of cable should be not less than 4D. When overall diameter(D)of cable is equal to and above 25mm, permissive bending radius of cable should be not less than 6D.


Our Certifications

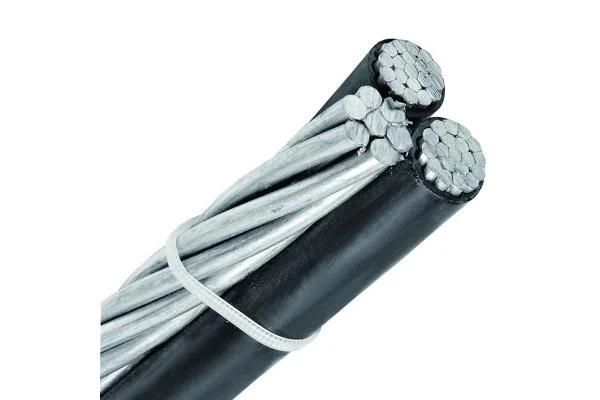

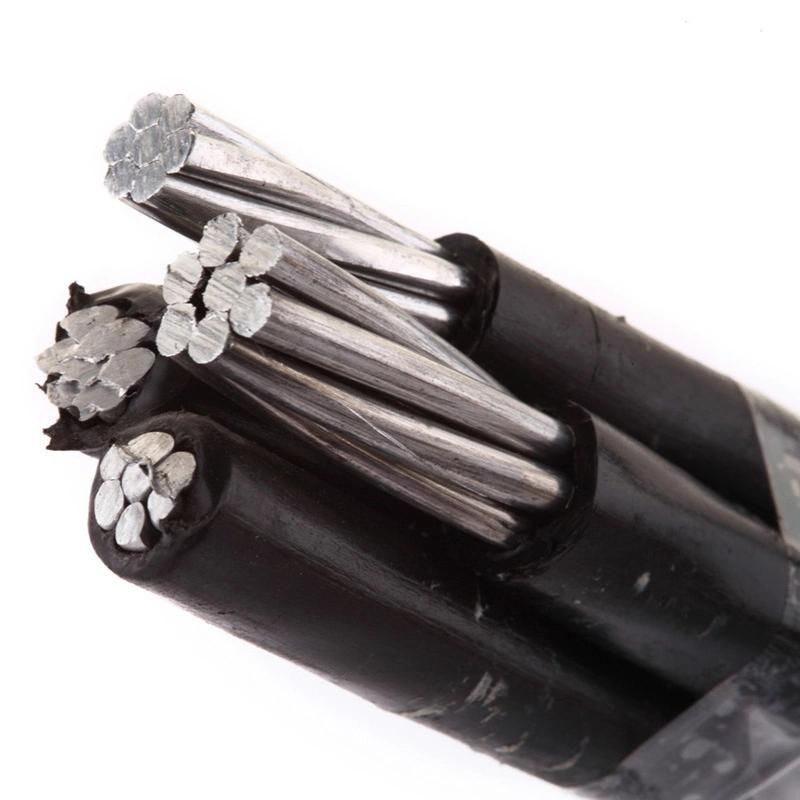

Detailed Images

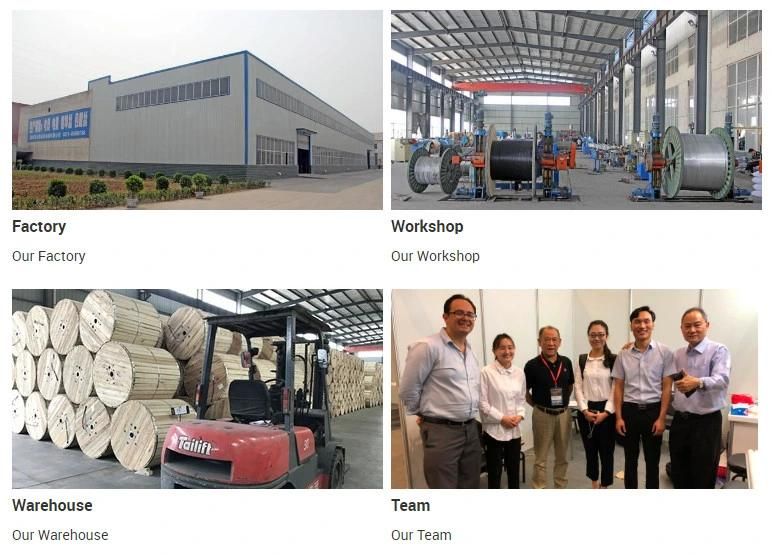

Our Company




 Why Choose Us

1. Strict quality control system, excellent quality with reasonable price.

2. Strong and Professional R&D team to meet your specific needs.

3. Rapid delivery and feedback. Faster lead time than our competitors.

4. OEM service available based on official & legal authorization.

5. Free sample is available.

6. Appointed shipping company is acceptable.

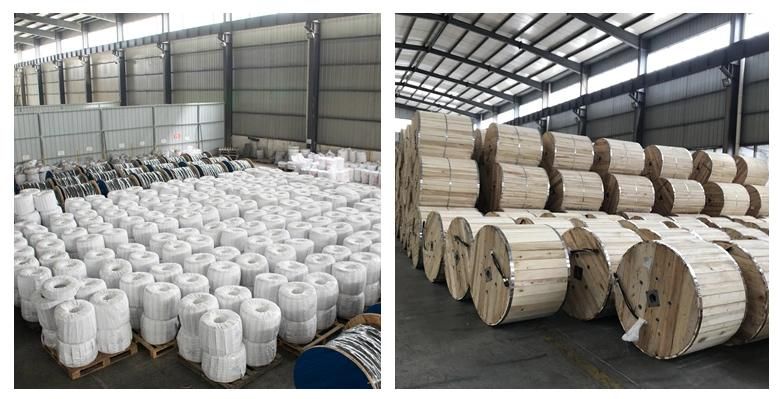

Packing & Delivery



The normal package is  exported wooden drum or soft package.



The normal delivery way is by sea.Usually you can choose 20GP or 40GP container.
