BS Standard 0.6/1kv 3 X 16mm2 XLPE or PE Insulation Duplex Truiplex Aerial Bundled Cable Weather Resistance ABC Cable Overhead Cable
Guangdong Vango Cable Industry Co., Ltd.- Application:Overhead, Power Station, Overhead Distribution, Rural Power Supply
- Voltage:35kv, 10kv, 0.6,1kv
- Current:AC Cable
- Insulation Material:XLPE, PVC, HDPE, MDPE, LDPE
- Sheath Material:PVC, PE
- Material Shape:Round Wire
Base Info
- Model NO.:Al,XLPE ABC Cable, ACS,XLPE ABC Cable, Al,PE ABC
- Wire Core Material:Aluminum
- Certification:ISO, CCC, ISO9001, ISO14000, CCC
- Model:Al,XLPE ABC Cable, Al,PE ABC
- Brand:Guang
- Warranty:12 Months
- Construction:Single Core, Duplex, Triplex, Quadruplex
- Supply Record:African Countries, Asian Countries, Middle East
- Installation:Overhead Transmission Line
- Transport Package:Wooden Reel, Steel Reel, Coil
- Specification:ICEA S-76-474 etc, NFC-33029
- Trademark:GDYG
- Origin:Guangdong Province, China
- HS Code:8544492100
- Production Capacity:15000km Per Month
Description
ICEA S-76-474 No. Rated Voltage Cores × Cross-sectional Area Conductor Phase Bare Neutral Phase Neutral Aluminum O.D. of Conductor Conductor Strength Max. D.C. Resistance at 25oC Aluminum Steel O.D of Conductor Conductor Strength Max. D.C. Resistance at 25oC Cores Aluminum Cores Aluminum Steel Total Material No. / Dia. of Wire Material No. / Dia. of Wire Material No. / Dia. of Wire V N kcmil AWG mm2 N kcmil AWG mm2 kcmil mm2 kcmil mm2 n / mils mm mils mm kips kN Ω/1000ft Ω/km n / mils mm n / mils mm mils mm kips kN Ω/1000ft Ω/km DUPLEX series 1 600 1 26.24 6 13.3 1 26.24 6 13.3 4.369 2.21 30.61 15.51 AL1350 AA 7 / 61.2 1.56 183.7 4.67 0.56 2.49 0.675 2.21 AL1350 A 6 / 66.1 1.68 Coated Steel-GA 1 / 66.1 1.68 198.3 5.04 1.19 5.27 0.4932 2.1938 2 600 1 41.74 4 21.1 1 41.74 4 21.1 6.956 3.52 48.70 24.62 AL1350 AA 7 / 77.1 1.96 231.4 5.88 0.89 3.95 0.424 1.39 AL1350 A 6 / 83.4 2.12 Coated Steel-GA 1 / 83.4 2.12 250.2 6.36 1.86 8.28 0.3109 1.3829 3 600 1 66.36 2 33.6 1 66.36 2 33.6 16.87 8.55 83.23 42.15 AL1350 AA 7 / 97.3 2.47 292.0 7.42 1.34 5.97 0.266 0.872 AL1350 A 7 / 97.4 2.47 Coated Steel-GA 1 / 129.9 3.30 324.7 8.25 3.63 16.15 0.1952 0.8684 4 600 1 105.6 1/0 53.5 1 105.60 1/0 53.5 17.61 8.92 123.21 62.42 AL1350 AA 7 / 122.8 3.12 368.4 9.36 1.96 8.73 0.168 0.551 AL1350 A 6 / 132.7 3.37 Coated Steel-GA 1 / 132.7 3.37 398.1 10.11 4.35 19.35 0.1226 0.5454 5 600 1 133.1 2/0 67.4 1 133.10 2/0 67.4 22.17 11.23 155.27 78.63 AL1350 AA 7 / 137.8 3.50 413.5 10.50 2.47 11.00 0.133 0.436 AL1350 A 6 / 148.9 3.78 Coated Steel-GA 1 / 148.9 3.78 446.7 11.35 5.24 23.29 0.0973 0.4329 6 600 1 167.8 3/0 85 1 167.80 3/0 85 27.96 14.17 195.76 99.17 AL1350 AA 7 / 154.8 3.93 464.4 11.80 3.03 13.46 0.105 0.344 AL1350 A 6 / 167.2 4.25 Coated Steel-GA 1 / 167.2 4.25 501.6 12.74 6.60 29.37 0.0772 0.3433 7 600 1 211.6 4/0 107.2 1 211.60 4/0 107.2 35.27 17.87 246.87 125.1 AL1350 AA 7 / 173.8 4.42 521.5 13.25 3.82 16.98 0.0836 0.274 AL1350 A 6 / 187.8 4.77 Coated Steel-GA 1 / 187.8 4.77 563.4 14.31 8.33 37.05 0.0612 0.2722 8 600 1 266.8 … 135.2 1 266.80 … 135.2 14.81 7.50 281.61 142.7 AL1350 AA 19 / 118.5 3.01 592.5 15.05 4.81 21.38 0.0661 0.217 AL1350 A 18 / 121.7 3.09 Coated Steel-GA 1 / 121.7 3.09 608.5 15.46 6.97 31.00 0.0488 0.2169 9 600 1 336.4 … 170.5 1 336.40 … 170.5 54.7 27.72 391.10 198.2 AL1350 AA 19 / 133.1 3.38 665.4 16.90 6.06 26.96 0.0524 0.172 AL1350 A 26 / 113.7 2.89 Coated Steel-GA 7 / 88.4 2.25 720.0 18.29 14.08 62.61 0.0387 0.1720 10 600 1 397.5 … 201.4 1 397.50 … 201.4 51.53 26.11 449.03 227.5 AL1350 AA 19 / 144.6 3.67 723.2 18.37 7.16 31.84 0.0444 0.146 AL1350 A 24 / 128.7 3.27 Coated Steel-GA 7 / 85.8 2.18 772.0 19.61 14.54 64.68 0.0327 0.1456 11 600 1 477.0 … 241.7 1 477.00 … 241.7 111.3 56.40 588.31 298.1 AL1350 AA 19 / 158.4 4.02 792.2 20.12 8.34 37.09 0.0370 0.121 AL1350 A 30 / 126.1 3.20 Coated Steel-GA 7 / 126.1 3.20 883.0 22.43 23.69 105.35 0.0273 0.1213 TRIPLEX series 12 600 2 26.24 6 13.3 1 26.24 6 13.3 4.369 2.21 30.61 15.51 AL1350 AA 7 / 61.2 1.56 183.7 4.67 0.56 2.49 0.675 2.21 AL1350 A 6 / 66.1 1.68 Coated Steel-GA 1 / 66.1 1.68 198.3 5.04 1.19 5.27 0.4932 2.1938 13 600 2 41.74 4 21.1 1 41.74 4 21.1 6.956 3.52 48.70 24.62 AL1350 AA 7 / 77.1 1.96 231.4 5.88 0.89 3.95 0.424 1.39 AL1350 A 6 / 83.4 2.12 Coated Steel-GA 1 / 83.4 2.12 250.2 6.36 1.86 8.28 0.3109 1.3829 14 600 2 66.36 2 33.6 1 66.36 2 33.6 16.87 8.55 83.23 42.15 AL1350 AA 7 / 97.3 2.47 292.0 7.42 1.34 5.97 0.266 0.872 AL1350 A 7 / 97.4 2.47 Coated Steel-GA 1 / 129.9 3.30 324.7 8.25 3.63 16.15 0.1952 0.8684 15 600 2 105.6 1/0 53.5 1 105.60 1/0 53.5 17.61 8.92 123.21 62.42 AL1350 AA 7 / 122.8 3.12 368.4 9.36 1.96 8.73 0.168 0.551 AL1350 A 6 / 132.7 3.37 Coated Steel-GA 1 / 132.7 3.37 398.1 10.11 4.35 19.35 0.1226 0.5454 16 600 2 133.1 2/0 67.4 1 133.10 2/0 67.4 22.17 11.23 155.27 78.63 AL1350 AA 7 / 137.8 3.50 413.5 10.50 2.47 11.00 0.133 0.436 AL1350 A 6 / 148.9 3.78 Coated Steel-GA 1 / 148.9 3.78 446.7 11.35 5.24 23.29 0.0973 0.4329 17 600 2 167.8 3/0 85 1 167.80 3/0 85 27.96 14.17 195.76 99.17 AL1350 AA 7 / 154.8 3.93 464.4 11.80 3.03 13.46 0.105 0.344 AL1350 A 6 / 167.2 4.25 Coated Steel-GA 1 / 167.2 4.25 501.6 12.74 6.60 29.37 0.0772 0.3433 18 600 2 211.6 4/0 107.2 1 211.60 4/0 107.2 35.27 17.87 246.87 125.1 AL1350 AA 7 / 173.8 4.42 521.5 13.25 3.82 16.98 0.0836 0.274 AL1350 A 6 / 187.8 4.77 Coated Steel-GA 1 / 187.8 4.77 563.4 14.31 8.33 37.05 0.0612 0.2722 19 600 2 266.8 … 135.2 1 266.80 … 135.2 14.81 7.50 281.61 142.7 AL1350 AA 19 / 118.5 3.01 592.5 15.05 4.81 21.38 0.0661 0.217 AL1350 A 18 / 121.7 3.09 Coated Steel-GA 1 / 121.7 3.09 608.5 15.46 6.97 31.00 0.0488 0.2169 20 600 2 336.4 … 170.5 1 336.40 … 170.5 54.7 27.72 391.10 198.2 AL1350 AA 19 / 133.1 3.38 665.4 16.90 6.06 26.96 0.0524 0.172 AL1350 A 26 / 113.7 2.89 Coated Steel-GA 7 / 88.4 2.25 720.0 18.29 14.08 62.61 0.0387 0.1720 21 600 2 397.5 … 201.4 1 397.50 … 201.4 51.53 26.11 449.03 227.5 AL1350 AA 19 / 144.6 3.67 723.2 18.37 7.16 31.84 0.0444 0.146 AL1350 A 24 / 128.7 3.27 Coated Steel-GA 7 / 85.8 2.18 772.0 19.61 14.54 64.68 0.0327 0.1456 22 600 2 477.0 … 241.7 1 477.00 … 241.7 111.3 56.40 588.31 298.1 AL1350 AA 19 / 158.4 4.02 792.2 20.12 8.34 37.09 0.0370 0.121 AL1350 A 30 / 126.1 3.20 Coated Steel-GA 7 / 126.1 3.20 883.0 22.43 23.69 105.35 0.0273 0.1213 QUADRUPLEX series 23 600 3 26.24 6 13.3 1 26.24 6 13.3 4.369 2.21 30.61 15.51 AL1350 AA 7 / 61.2 1.56 183.7 4.67 0.56 2.49 0.675 2.21 AL1350 A 6 / 66.1 1.68 Coated Steel-GA 1 / 66.1 1.68 198.3 5.04 1.19 5.27 0.4932 2.1938 24 600 3 41.74 4 21.1 1 41.74 4 21.1 6.956 3.52 48.70 24.62 AL1350 AA 7 / 77.1 1.96 231.4 5.88 0.89 3.95 0.424 1.39 AL1350 A 6 / 83.4 2.12 Coated Steel-GA 1 / 83.4 2.12 250.2 6.36 1.86 8.28 0.3109 1.3829 25 600 3 66.36 2 33.6 1 66.36 2 33.6 16.87 8.55 83.23 42.15 AL1350 AA 7 / 97.3 2.47 292.0 7.42 1.34 5.97 0.266 0.872 AL1350 A 7 / 97.4 2.47 Coated Steel-GA 1 / 129.9 3.30 324.7 8.25 3.63 16.15 0.1952 0.8684 26 600 3 105.6 1/0 53.5 1 105.60 1/0 53.5 17.61 8.92 123.21 62.42 AL1350 AA 7 / 122.8 3.12 368.4 9.36 1.96 8.73 0.168 0.551 AL1350 A 6 / 132.7 3.37 Coated Steel-GA 1 / 132.7 3.37 398.1 10.11 4.35 19.35 0.1226 0.5454 27 600 3 133.1 2/0 67.4 1 133.10 2/0 67.4 22.17 11.23 155.27 78.63 AL1350 AA 7 / 137.8 3.50 413.5 10.50 2.47 11.00 0.133 0.436 AL1350 A 6 / 148.9 3.78 Coated Steel-GA 1 / 148.9 3.78 446.7 11.35 5.24 23.29 0.0973 0.4329 28 600 3 167.8 3/0 85 1 167.80 3/0 85 27.96 14.17 195.76 99.17 AL1350 AA 7 / 154.8 3.93 464.4 11.80 3.03 13.46 0.105 0.344 AL1350 A 6 / 167.2 4.25 Coated Steel-GA 1 / 167.2 4.25 501.6 12.74 6.60 29.37 0.0772 0.3433 29 600 3 211.6 4/0 107.2 1 211.60 4/0 107.2 35.27 17.87 246.87 125.1 AL1350 AA 7 / 173.8 4.42 521.5 13.25 3.82 16.98 0.0836 0.274 AL1350 A 6 / 187.8 4.77 Coated Steel-GA 1 / 187.8 4.77 563.4 14.31 8.33 37.05 0.0612 0.2722 30 600 3 266.8 … 135.2 1 266.80 … 135.2 14.81 7.50 281.61 142.7 AL1350 AA 19 / 118.5 3.01 592.5 15.05 4.81 21.38 0.0661 0.217 AL1350 A 18 / 121.7 3.09 Coated Steel-GA 1 / 121.7 3.09 608.5 15.46 6.97 31.00 0.0488 0.2169 31 600 3 336.4 … 170.5 1 336.40 … 170.5 54.7 27.72 391.10 198.2 AL1350 AA 19 / 133.1 3.38 665.4 16.90 6.06 26.96 0.0524 0.172 AL1350 A 26 / 113.7 2.89 Coated Steel-GA 7 / 88.4 2.25 720.0 18.29 14.08 62.61 0.0387 0.1720 32 600 3 397.5 … 201.4 1 397.50 … 201.4 51.53 26.11 449.03 227.5 AL1350 AA 19 / 144.6 3.67 723.2 18.37 7.16 31.84 0.0444 0.146 AL1350 A 24 / 128.7 3.27 Coated Steel-GA 7 / 85.8 2.18 772.0 19.61 14.54 64.68 0.0327 0.1456 33 600 3 477.0 … 241.7 1 477.00 … 241.7 111.3 56.40 588.31 298.1 AL1350 AA 19 / 158.4 4.02 792.2 20.12 8.34 37.09 0.0370 0.121 AL1350 A 30 / 126.1 3.20 Coated Steel-GA 7 / 126.1 3.20 883.0 22.43 23.69 105.35 0.0273 0.1213

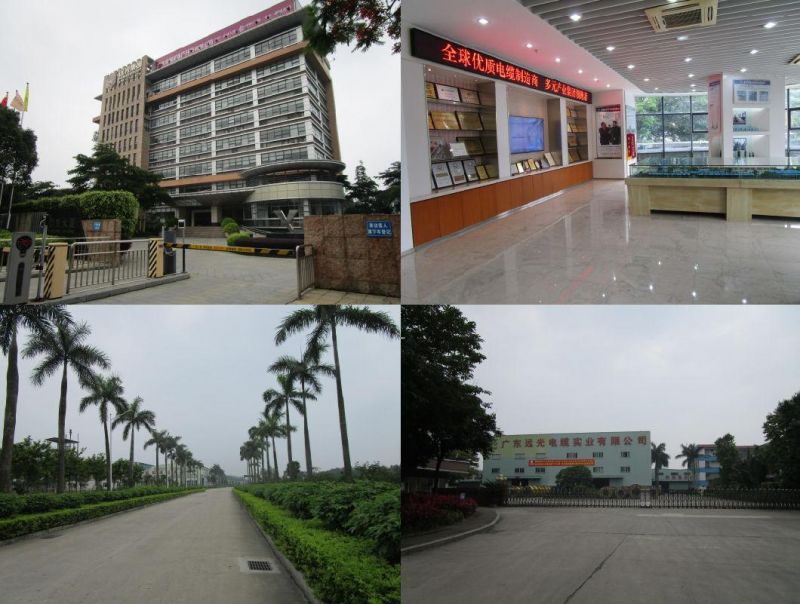

Our company
Established in 1988, Guangdong Vango Cable Industry Co., Ltd., the Guangdong Top 100 Private enterprise, is a professional manufacturer of power cables and wires. It is the main supplier of cable & conductor and special transmission conductor of National Power Grid and China Southern Power Grid. The comprehensive strength of Vango Company ranks top 20 of the cable industry in China and top 5 of the Guangdong province.
It covers 214000m² with about 110 sets international advanced cable and wire producing and testing equipments. There are 540 employees including over 116 intermediate and senior technical personnel with 9 senior titles which contributes strong power of scientific research, management and innovation. It gains 21 Patents issued by State Intellectual Property Office of China.
The main products are power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

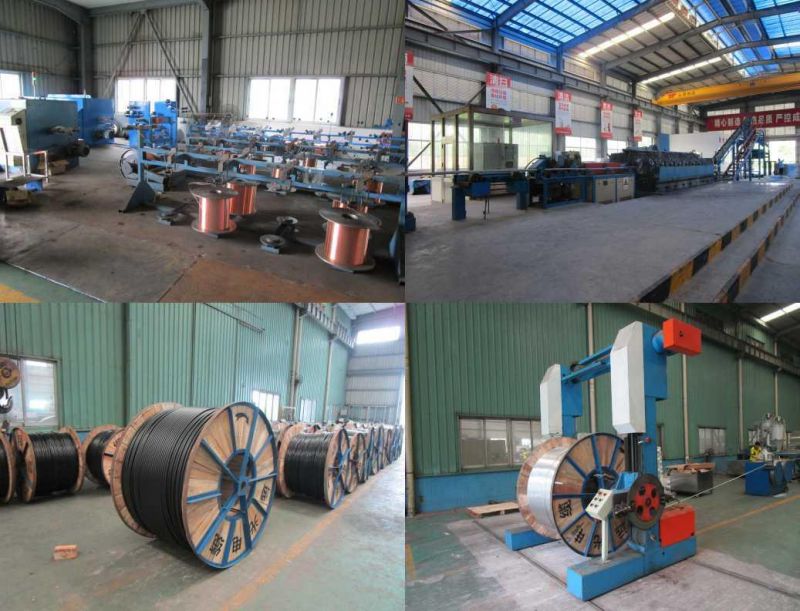

Workshop

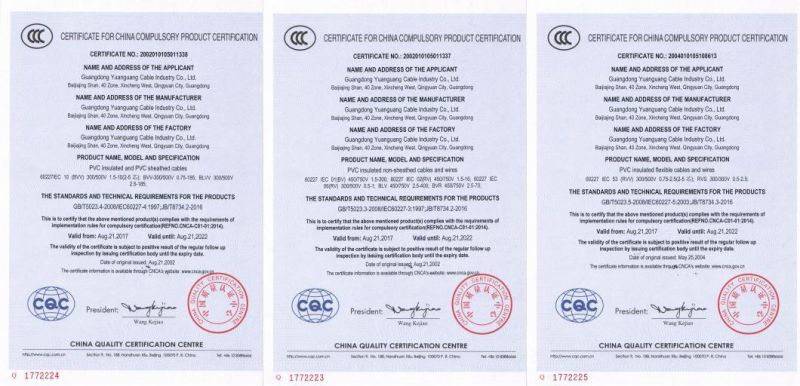

Certificates
We have ISO9001 and CCC certifcates
Customers
FAQ:
1. Are you a trading company or manufacture?
We are a wire and cable Manufacturer with 30 years history almostly, our factory located in Qingyuan, Guangdong Province, China.
2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.
3. Can you offer me a free sample?
Yes, sample is free but the freight charge should be borne by you.
4.How is the payment?
T/T, L/C is acceptable.
5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.
6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.
7.Do you have after-sale service?
Yes, 12 months warranty.
Contact for more information:
