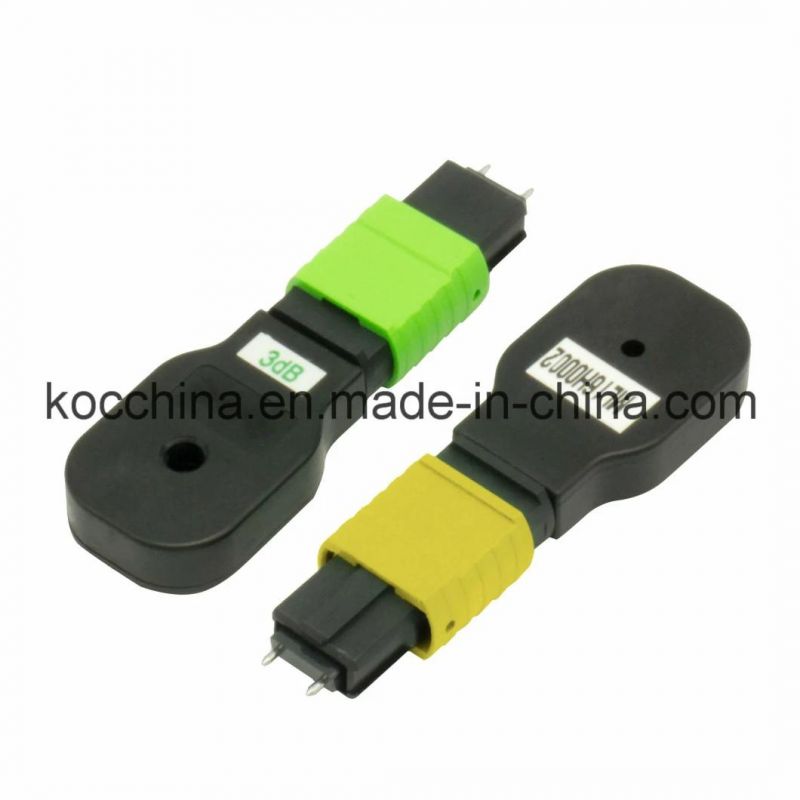

MPO Fiber Optic Attenuator Loopback
Shenzhen KOC Communication Co., Ltd.- Application：Communication, Network,Data Processing
- Type：MPO,APC
- Connection Structure：MPO(MTP)
- Material Shape：Square
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：100N<1000N
Base Info
- Model NO.：mpo
- Core：Multicore
- Certification：RoHS, ISO9001, IEC,Tlc,SGS,Reach
- Brand：OEM
- Sheath Material：PVC
- Return Loss：60dB(8c, Polishing)
- Operation Wavelength：1310,1550nm
- Attenuation Tolerance：1dB( at 2-10dB),10dB( at 11-20dB)

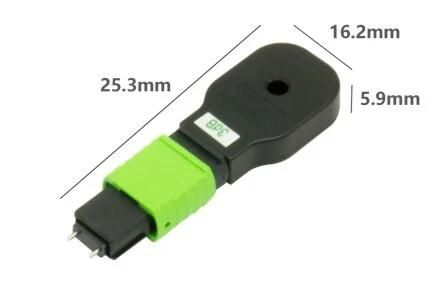

- Housing Dimension：25.3*16.2*5.9(mm)
- Jacket Color：Black,Green,Yellow
- Attenuation：1~20dB(Sm 1310,1550 Nm)
- Operating Temperature：-25c~75c
- Transport Package：1PCS,Bag, Stantard Carton Package
- Specification：25.3*16.2*5.9(mm)
- Trademark：KOC
- Origin：China
- HS Code：85447000
- Production Capacity：100000PCS,Month
Description
Pictures:
Our Sevice:
We provide all our products with high quality, competitive price, short delivery lead time and excellent after-sales services.
About KOC
Shenzhen KOC Communication Co., Ltd. is specialized in fiber optic communication product manufacture. Our products range from the basic components to end products, including passive and active categories as follows: Basic Components: Connector kits, Adapter kits, Attenuator kits.
Passive products: Connector, Adapter, Attenuator, Patch-cord, ODF and enclosure.
Active products: Media converter, Transmitting and receiving assemblies, such as laser diode assembly, PD and PIN/TIA assembly, sub-assemblies such as TOSA, ROSA, BOSA.
FTTH System: Gpon: OLT, ONU, PLC
Headquarter located in Shenzhen, China, we have branch companies, representatives and distributors in Europe, America, Middle East, South Asia. KOC products are well accepted and sold in these areas.
Thank you for viewing!
Please feel free to contact us if you have any questions!
Welcome to visit our website:Http://kocchina.en.made-in-china.com
