LV Hv 300V 10kv ~ 50kv AWG14 AWG16 Tinned Copper Wire High Temperature Silicone Wire
Henan Verde Cable Co., Ltd.- Type:Insulated
- Conductor Type:Stranded
- Application:Overhead, Heating, Underground, High Temperature Resistant,Welding Usage
- Conductor Material:Tinned Copper, Silver Plated Copper
- Sheath Material:Silicone Rubber
- Insulation Material:Silicone Rubber
Base Info
- Model NO.:silicone wire
- Material Shape:Round Wire
- Range of Application:Flame Retardant,Heat Resisiting,High Temperature
- Certification:ISO9001, UL, CCC, RoHS, VDE
- Brand:Verde
- Size:1.5, 2,5, 4, 6, 10, 16,.....95mm2......240mm2
- AWG Size:20, 18 , 16, 14, 12, 10......
- Produceing Experience:15 Years
- Customized:Yes
- OEM:Yes
- Export Experience:Southeast Asia,Russia,Australia,Europe
- Hot Export to:Hungary,France,Finland,Switzerland,Argentina
- Transport Package:Coil, Drum or as Per The Customer′s Request
- Specification:SGS
- Origin:Henan
- HS Code:8544492100
- Production Capacity:500km Per Month
Description
50KVAWG Conductor construction NO. *φ mm Diameter mm Insulation Thick mm Overall Diameter mm Insulation Thick mm Overall Diameter mm Insulation Thick mm Overall Diameter mm Insulation Thick mm Overall Diameter mm Insulation Thick mm Overall Diameter mm 26 7*0.15 0.49 0.5 1.49 0.7 1.89 1 2.49 1.3 3.09 2.5 5.49 24 7*0.20 0.6 0.5 1.6 0.7 2 1 2.6 1.3 3.2 2.5 5.6 22 7*0.26 0.78 0.5 1.76 0.7 2.14 1 2.78 1.3 3.36 2.5 5.76 20 7*0.30 0.91 0.5 1.91 0.7 2.31 1 2.91 1.3 3.51 2.5 5.91 18 7*0.40 1.17 0.5 2.17 0.7 2.57 1 3.17 1.3 3.77 2.5 6.17 16 7*0.50 1.5 0.5 2.5 0.7 2.9 1 3.5 1.3 4.1 2.5 6.5 14 43*0.25 1.83 0.6 3.03 0.8 3.43 1.2 4.23 1.5 4.83 3 7.83
5.Type Description &Specification Range we produceType & Description we can supply Core Number Nominal cross section area
(mm2) Tinned copper conductor Silicone Rubber Insulation and sheathed cable 1, 2, 3, 4, 5,
3+1,3+2,
4+1 1.5~to500 for single core
1.5 ~240 for multi-core Copper conductor Silicone Rubber Insulation and sheathed cable with Steel Tape Armoring 3, 4, 5,
3+1,3+2,
4+1 1.5~240 Flame Retardant Flexible Type
Copper conductor Silicone Rubber Insulation and sheathed cable 1, 2, 3, 4, 5,
3+1,3+2,
4+1 1.5~500 for single core
1.5~240 for multi-core Flame Retardant
Copper conductor Silicone Rubber Insulation and sheathed rubber cable
With Copper wire Braided Shielding Type 1, 2, 3, 4, 5,
3+1,3+2,
4+1 1.5~500 for single core
1.5~240 for multi-core Copper conductor Silicone Rubber Insulation and sheathed rubber cable
For Moving usage 1, 2, 3, 4, 5,
3+1,3+2,
4+1 1.5~500 for single core
1.5~240 for multi-core

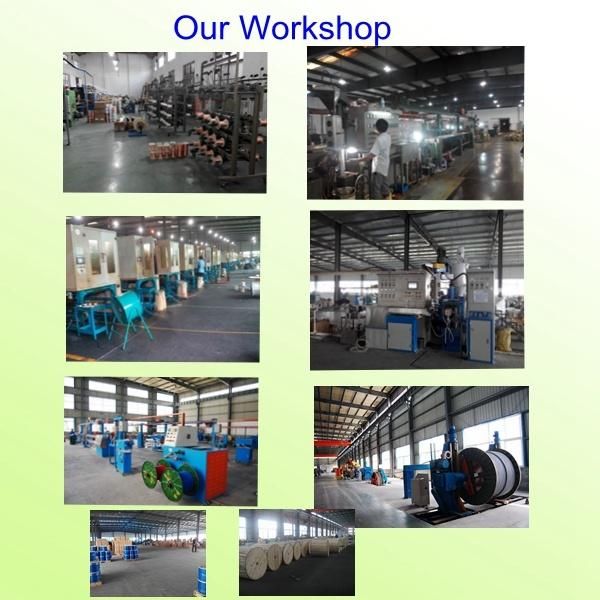

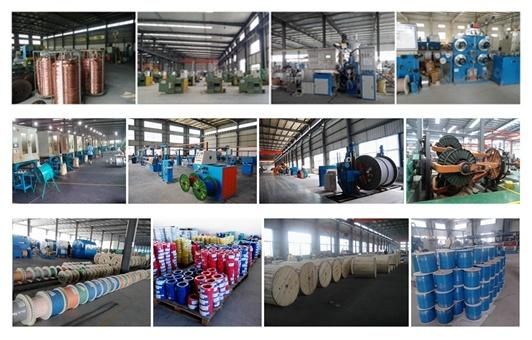

6.Our workshop
If you want to know more techincal information,pls contact us.
sending email or telephon us:
May Lee
Vice General Manager
HENAN VERDE CABLE Co,.Ltd
Focus on Cables and Wires
Be Your Most Reliable Supplier
