Coaxial Cable Rg58 Rg59 RG6 CATV Cable 75ohm Communication Cable Data Cable TV Cable

HangZhou Feinan Cable Co., Ltd.
  • Application：Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, Submarine Cable, CCTV Cable
  • Conductor Material：BC,CCS,CCA,TC,CU,CCAG
  • Cover Material：PVC
  • Type：Coaxial Cable
  • Material Shape：Round Wire
  • Conductor Type：Solid

Base Info

  • Model NO.：RG6
  • Wire Core Material：Bare Copper Wire
  • Certification：CE, ISO, CPR
  • Model：Kx7 Power
  • Brand：OEM
  • Transport Package：Cartons
  • Specification：33*33*31
  • Trademark：OEM
  • Origin：China
  • HS Code：85442000
  • Production Capacity：5000PCS,Month

Description

Overview Product DescriptionNameMaterialParameterInner conductorBare copper, tinned copper or copper clad steel0.81 mm (diameter)DielectricPhysical foam PE3.66 mm (diameter) First shieldBonded aluminum foil 3.84 mm (diameter)Second shieldAluminum braid67% or 95% coverageJacket PVC or PE6.10 mm (diameter) Messenger N/AN/ACharacteristic Impedance75 OhmsVelocity of Propagation 85%Capacitance52 PF/mReturn Loss≥22 dBOperation Temp-20~+80ºC

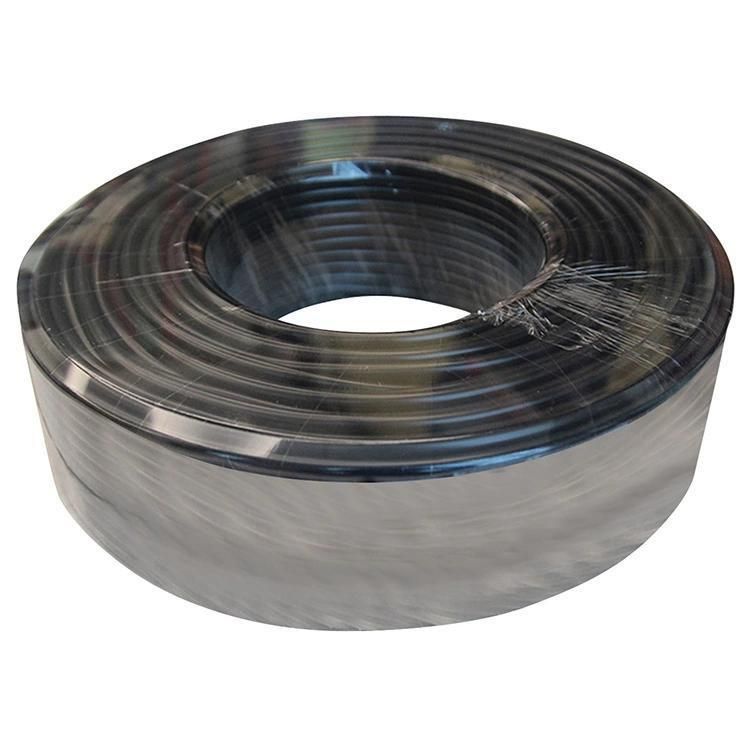

Detailed Photos

Coaxial Cable Rg58 Rg59 RG6 CATV Cable 75ohm Communication Cable Data Cable TV CableCoaxial Cable Rg58 Rg59 RG6 CATV Cable 75ohm Communication Cable Data Cable TV Cable

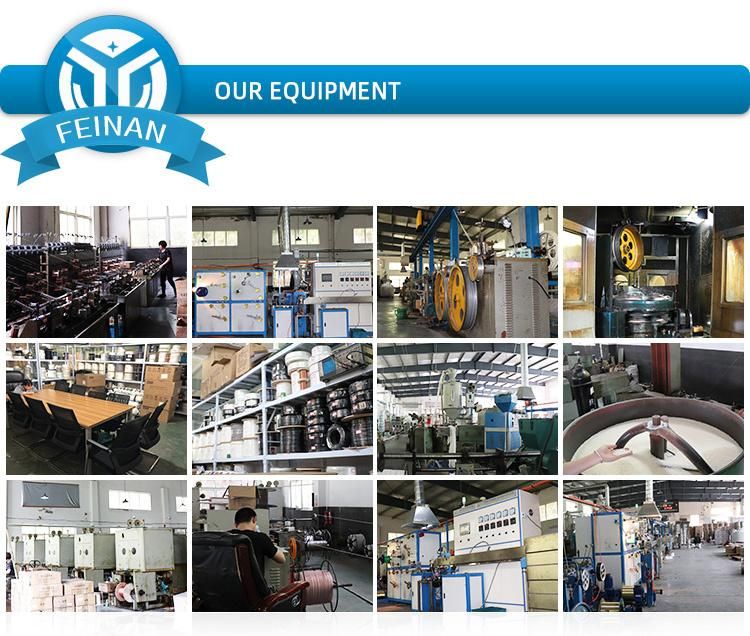

Company Profile

Coaxial Cable Rg58 Rg59 RG6 CATV Cable 75ohm Communication Cable Data Cable TV Cable


Coaxial Cable Rg58 Rg59 RG6 CATV Cable 75ohm Communication Cable Data Cable TV Cable

Certifications

Coaxial Cable Rg58 Rg59 RG6 CATV Cable 75ohm Communication Cable Data Cable TV Cable

FAQ
