• Model NO.：OFS-90CS
• Heat Time：15 Seconds
• Average Splice Loss：0.025dB(Sm), 0.01dB(mm), 0.04dB(Ds,Nzds)
• Applicable Fibers：Sm(G.652&G.657), mm(G.651), Ds(G.657), Nzds(G.655)
• Return Loss：Better Than 60dB
• Boot Time：1 Second
• Built-in Battery：7800 Ma High-Capacity Lithium Battery, Charging Ti
• Transport Package：Standard Carton

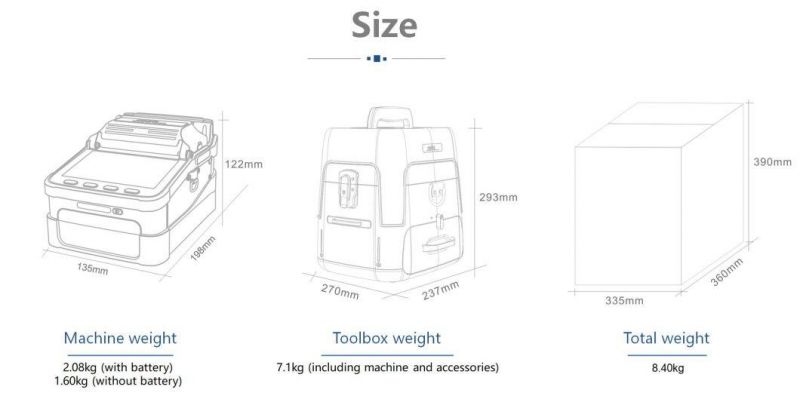

• Specification：198mm(length) x135mm (width) x122mm (height)
• Production Capacity：10, 000 PCS,Year

Fiber alignmentCore/cladding alignment  / Manual alignmentSplicing time 5SHeating time  15SHeating mode   Automatic heating(Preheating)Focus modeSix motors  Auto focusApplicable FibersSM(G.652&G.657), MM(G.651), DS(G.657),NZDS(G.655)Splice Loss0.025dB(SM), 0.01dB(MM), 0.04dB(DS/NZDS)Control TechnologyReal-time control and calibration of fusion ARCReturn lossBetter than 60dBFiber diameterCladding Diameter:80-150μm,  Coating Diameter:100-1000μmFiber Cleave LengthCoating less than 250µm:8-16mm,  Coating less than 250-1000µm:16mmSoftware updates LengthAutomatically update, Update by a keyBoot time1 secondLanguage Setting10 languages to switch freelyTension TestStandard 2NFiber holders3 in 1 fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cableMagnification300 for X or Y view, 150 for X or Y viewScreen5 inch TFT color displaySplicing ModeNormal / high precision splicingSplicing methodFully automatic,Step by step splicingSplicing record storageSynchronize to the phone, the server to  cloud storage unlimitedBuilt-in Battery7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 260 timesPower Supply Input AC100-240V 50 / 60HZ, output DC13.5V / 4.8A, the current power mode can be identified, real-time detection of battery powerOperating ConditionsTemperature -15 ~ +50 ºC, humidity: <95% RH (no condensation)
 Working altitude: 0 ~ 5000m. Resist max. wind speed: ≤ 15m / sShrinkable Tube60mm,50mm,40mm,25mmProduct ProtectionWaterproof, dust proof, shock-resistant
