• Model NO.：PEW,155
• Diameter：0.06-4.5
• UL No.：E206121
• Standard：IEC;JIS C;NEMA;GB
• Transport Packing：Wooden Box;Pallet
• H S Code：8544110000
• Thermal：155
• Conductor Type：Solid
• Enamelled Types：Enamelled Types
• Product Name：Pew,155
• Transport Package：Cartons, Wooden Box
• Specification：IEC60317-3 JIS C3202 MW 5-C
• Trademark：n,n
• Origin：China
• HS Code：854411
• Production Capacity：100000 Tons

Basic Info.

Model NO. PEW/155 Diameter 0.06-4.5 UL No. E206121 Standard IEC;JIS C;NEMA;GB Transport Packing Wooden Box;Pallet H S Code 8544110000 Thermal 155 Conductor Type Solid Enamelled Types Enamelled Types Product Name Pew/155 Transport Package Cartons, Wooden Box Specification IEC60317-3 JIS C3202 MW 5-C Trademark n/n Origin China HS Code 854411 Production Capacity 100000 Tons

Product Description

product type:1PEW/155  Thermal Rating:F
Applicable standard: IEC 60317-3; MW5-C; GB/T 6109.2; JIS C3215
UL-Certified

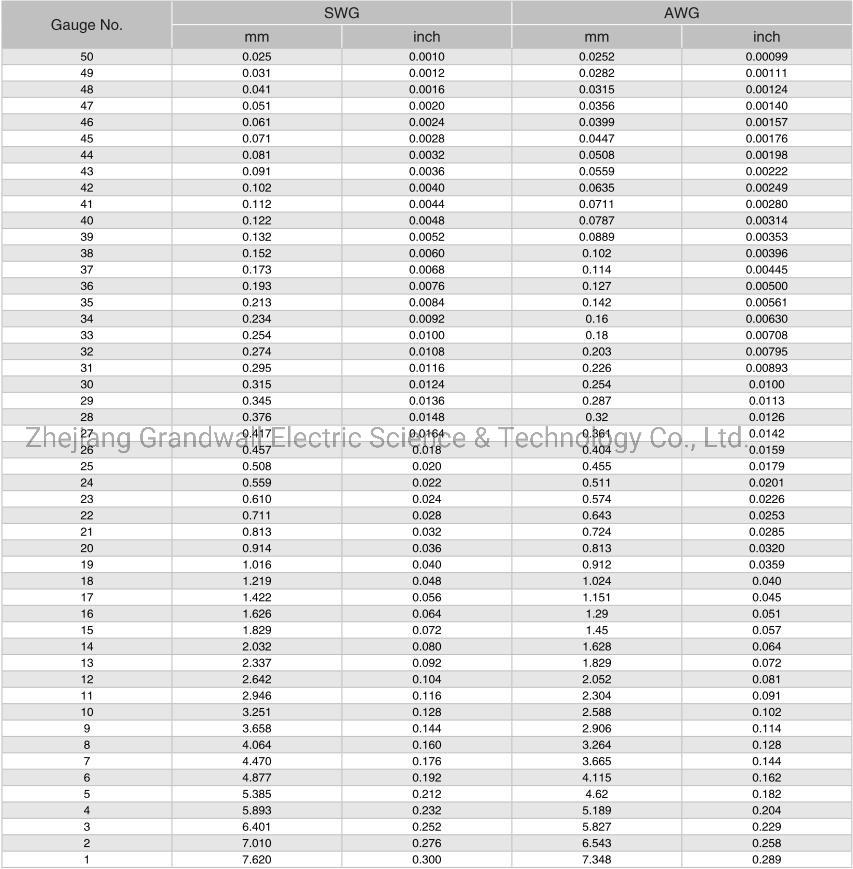

Size available(mm):0.08mm-4.00 mm

Description:
The insulation layer of PEW is Polyester resin, and its temperature grade is 155 ºC.Has good temperature stability and insulation characteristics.

Characteristic:
Good resistance to abrasion and solvent
(1) It has good resistance to Crazing, wear resistance, chemical resistance and temperature stability.
(2) Its physical properties such as windability, wear resistance and adhesion are superior to PVF wire types

Typical Applications :
Apply to B Class motors, appliances, instrumentations, various types of electronic components and winding for coils. Motors, Micro Small motors, Transformers
