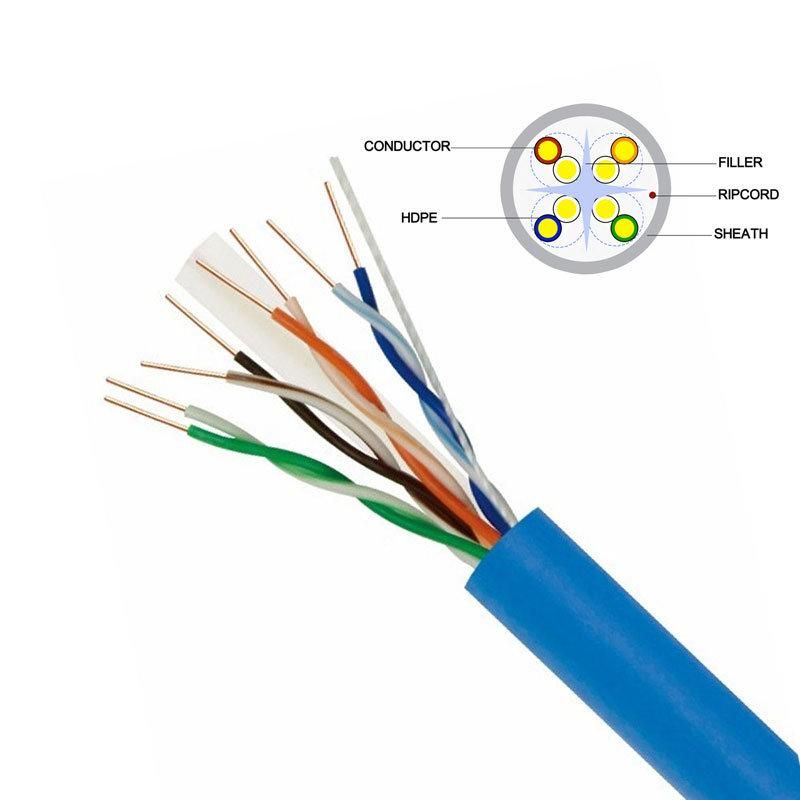

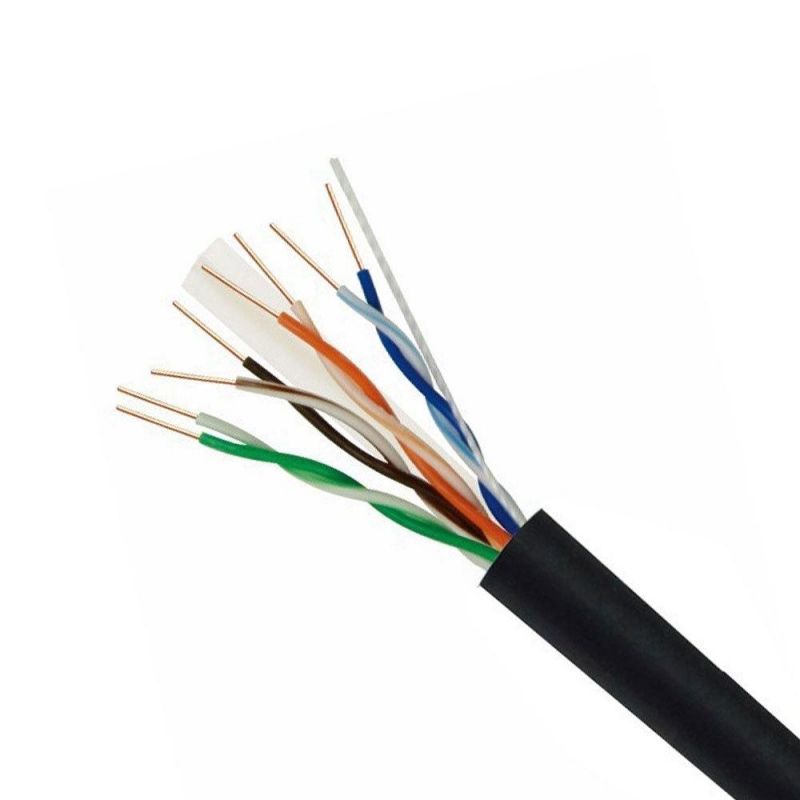

Low-Cost Networking UTP Cat5e CAT6 CAT6A LAN Cable for Data Ethernet ETL/UL/Cmx/Cm/Cmr Approved
Hangzhou Yixun Trading Co., Ltd.- Application：Local Communication Cable, LAN Cable, Network Communication
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC, PE, LSZH, Frpvc
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：UTP CAT6 Cable
- Wire Core Material：Bc, CCA, Tc
- Certification：CE, ISO, RoHS, UL, CPR, ETL, ISO,IEC 60331
- Brand：Yixun or OEM
- Range of Application：Network Communication
- Center Conductor：24 AWG Bc,CCA
- Insulation：Solid PE Insulation
- Jacket：PVC,PE,PVC+PE,PVC+PVC Indoor,Outdoor
- Specifications：24AWG+PE+Al Foil+Ground Wire+5.9PVC
- Dielectric Breakdown：2500V
- Impedance：100±15 Ohm
- Frequency：100MHz,200MHz,350MHz
- Color：Grey, Blue, Black, Yellow, Red etc
- Other：UV,Frame Returdant,Waterproof
- Delivery Time：15-20 Days

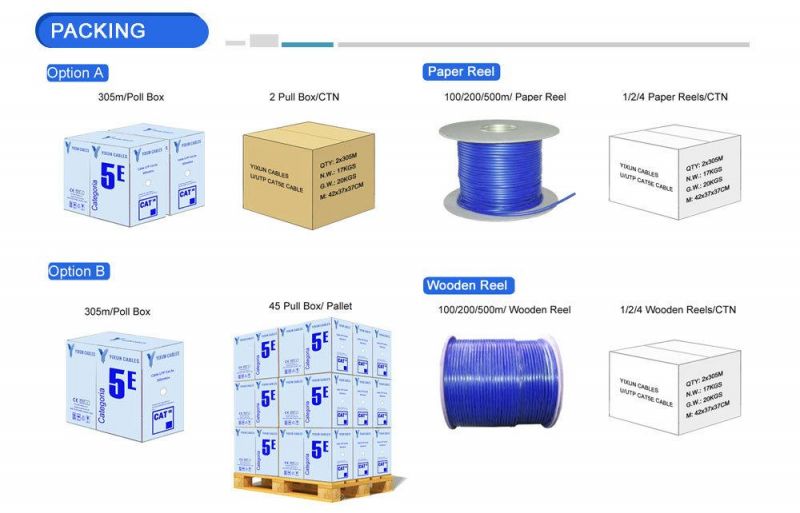

- Transport Package：305m,Pull Box, 2 Pull Box,Carton
- Specification：39x39x23cm
- Trademark：OEM
- Origin：China,Zhejiang
- HS Code：8544491100
- Production Capacity：10000boxes,Month
Description
| Frequency | Attenuation | RL | Next | PS Next |
| (Mhz) | (dB/100M) | (dB) | (dB) | (dB/100m) |
| 1MHz | 2 | 23 | 74.3 | 71.8 |
| 4MHz | 3.8 | 23 | 65.3 | 61.2 |
| 10MHz | 6 | 23 | 59.3 | 53 |
| 16MHz | 7.6 | 23 | 56.2 | 48.4 |
| 20MHz | 8.5 | 23 | 54.8 | 46.5 |
| 31.2MHz | 10.7 | 23 | 51.9 | 41.3 |
| 62.5MHz | 15.1 | 23 | 47.4 | 31.5 |
| 100MHz | 19.1 | 23 | 44.3 | 24.1 |
| 125MHz | 21.3 | 21 | 42.8 | 20.5 |
| 155.5MHz | 23.8 | 21 | 41.4 | 16.6 |
| 175MHz | 25.3 | 21 | 40.7 | 13.9 |
| 200MHz | 27 | 21 | 39.8 | 10.8 |
| 250MHz | 32.6 | 19 | 38.3 | 5 |

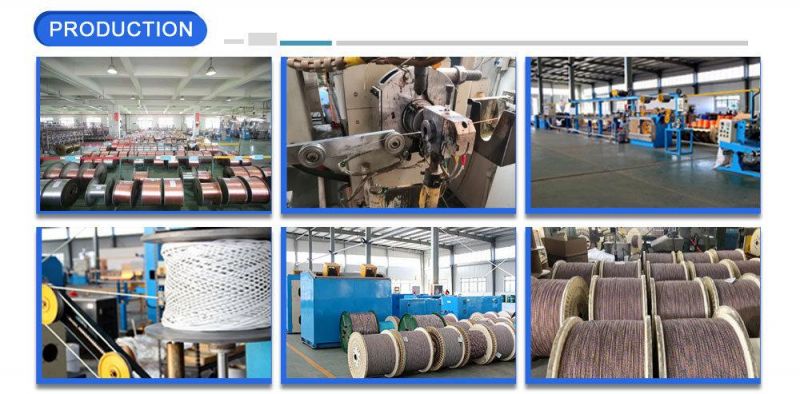

YIXUN is professional supplier and exporter with 12 years Experience in Communication Industry.Manufacture Lan Cable, Coaxial Cable, Fiber Optic Cable, Telephone cable, Alarm cable and Accessories,

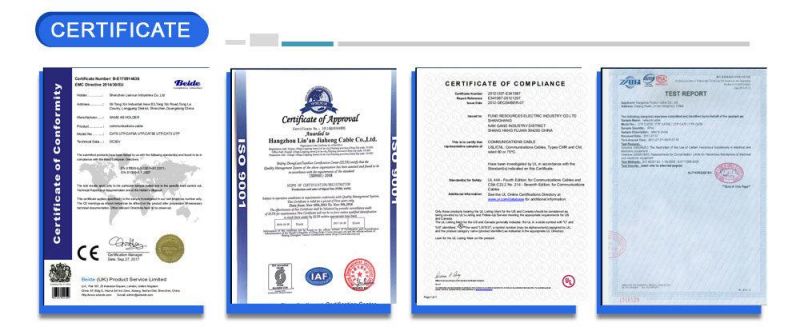

with Certificates of ISO9001, CPR, UL, CE, RoHS, ETL.
In the past 10 years, We export to more than 70 countries, entered into the market of Europe, Australia, South America and Southeast Asia.
Our products have been widely installed in Telecom companies and many distributors around the world.
We're a business dedicated to offer you superior customer service, applying educated business principles to
keep our business as well as our clients companies. With understanding the needs of each one of our customers,YIXUN is entirely committed to meeting individual customer needs.
Why Choose UsYIXUN knows deep down that our purpose is to meet the needs of our customers.We learn about the supply chain and know that the difficulties we are facing are also the same as those of our customers.In this way, by understanding what our own needs are, we can think outside the box to understand the needs of our customers.
If you talk with YIXUN, we will do exactly according to documents: How to find an honest supplier? (We will send you if you need).
We hope that customers can feel relaxed and happy when negotiating with our company, not only can complete the procurement work efficiently and worry-free but also to improve your ability of re-sell.
What kind of service we can provide?
1.Latest market information per month
2.Market research report
3.Solutions of supplier's dishonest problem
4.Solutions of supplier's poor service
5.Soulutions of supplier's quality control problem
6.Soulutions of supplier's lead time problem
7.Support solutions replace price list
8.Channels for complaints
9.25 Years of quality warranty assurance.
10.Market protection.
11.Solutions of order follow-up.
12.Support sales methods and strategies.
FAQ
(1)Q: Are you a manufacturer or a trading company?
A: We are a Industry and trade integration with 12 years production experience.
(2)Q: Can you print our logo or company name in cable?
A: Yes,we can print your logo or company name on products.
(3)Q:Can you accept customize or design for us?
A: Yes, all communication cables are customized in our own factory and we can design for you according to your requirement.
(4)Q:Is it possible to get a free sample ?
A: Yes, samples are free,and shipping cost have to be paid by your esteemed company. But we will return the sample cost to you when we receiving your initial order.
(5)Q:What is your MOQ ?
A: Usually, MOQ is 100 thousand meters.
(6)Q:If I want to purchase,how to pay?
A: Usually, we do T/T in 30% deposit before production,70% balance against copy of B/L. Also payment terms are negotiable depending on customer's request.
