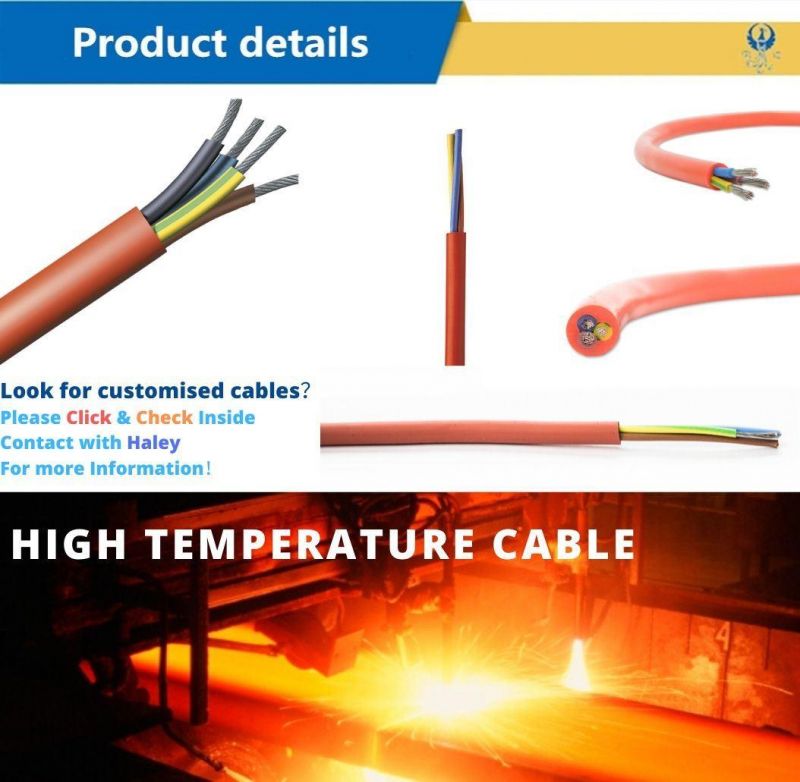

PVC Wiring Harness H05vvf 300/500V 600V Sihf H05ss-F Soft Flexible More Strands Tinned Copper Multicore Silicone Rubber Heating Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Car, Installation in Ground, Indoors, Outdoors.
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：Silicone Rubber
- Sheath Material：Silicone Rubber
- Material Shape：Round Wire
Base Info
- Model NO.：H05SS-F, SIHF ,YGZ
- Wire Core Material：Class 5 Flexible Stranded Tinned Copper
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：H05ss-F, Sihf ,Ygz
- Brand：Feiya
- OEM&ODM：Yes
- Rated Voltage：300,500V
- Operating Environment：for Connection of Electrical Appliances
- Other Service：Can Be Customized
- Colors：Can Be Customized
- Armour/Earth Conductor：Steelworks, But Also at Low Temperatures.
- Temperature Rating：-60 to +180
- Transport Package：Wooden Box Packing or Pallet Shipping Containers
- Specification：Silicone Rubber,
- Trademark：Feiya
- Origin：China
- HS Code：8544
- Production Capacity：80000 Meter,Meters Per Month
Description
APPLICATION
This cable is used for connection of electrical appliances without mechanical stress at increased environmental temperatures, for example in steelworks, but also at low temperatures. Insulation and sheath are resistant to most oils, acids, lyes and oxidants.
CHARACTERISTICS
Voltage Rating Uo/U
300/500V
Temperature
Rating Fixed: -60ºC to +180ºC
Minimum Bending Radius
Fixed: 5 x overall diameter
Flexed: 15 x overall diameter
CONSTRUCTION
Conductor
Class 5 flexible Stranded Tinned Copper
Insulation
Silicone Rubber
Outer Sheath
Silicone Rubber
