0.6/1kv X00-a XLPE Insulated Aerial Power Cables with Aluminium Conductor

Henan Hongda Cable Co., Ltd.
  • Application：Overhead, Overhead Power Lines, Public Lighting
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：XLPE
  • Sheath Material：Crosslinking
  • Material Shape：Round Wire

Base Info

  • Model NO.：NFA2X Cable
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, SGS
  • Model：NFA2X Cables
  • Brand：Hongda
  • Standard：IEC, NFC33 209, VDE 0276
  • Insulation：XLPE or Polyethylene
  • Operating Voltage：1kv
  • Operating Temperature：Max 70c
  • Transport Package：Wooden Drum or as Customer Requirement
  • Specification：6mm2 to 120mm2
  • Trademark：Hongda Cable
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1200km,Month

Description

0.6/1kv X00-a XLPE Insulated Aerial Power Cables with Aluminium Conductor1. ConductorStranded aluminium conductor2. InsulationXLPE insulation3. MessangerMessenger wire
  • Cable sizeInsulation ThicknessApprox Maximum DiameterApprox. Net. WeightStandard LengthPhaseNeutral / MessengerPublic LightingPhaseNeutral/MessengerPublic Lightingmm2mmmmmmmmmmmmkg/kmm2x25+251.41.4-10.010.010.03385002x35+251.61.4-11.210.010.03945002x50+351.61.6-12.611.211.25265002x70+501.81.6-15.412.612.67605002x95+702.01.8-17.015.415.49755003x25+251.41.4-10.010.010.04525003x35+251.61.4-11.210.010.05375003x50+351.61.6-12.611.211.27175003x70+501.81.6-15.412.612.610575003x95+702.01.8-17.015.415.413605003x25+25+2x161.41.41.210.010.08.16025003x35+25+2x161.61.41.211.210.08.16875003x50+35+2x161.61.61.212.611.28.18675003x70+50+2x161.81.61.215.412.68.112075003x95+70+2x162.01.81.217.015.48.115105003x25+25+161.41.41.210.010.08.15275003x35+25+161.61.41.211.210.08.16125003x50+35+161.61.61.212.611.28.17925003x70+50+161.81.61.215.412.68.111325003x95+70+162.01.81.217.015.48.11435500
    *Further information about rating factor for certain cable arrangement can be found on supplementary technical information.

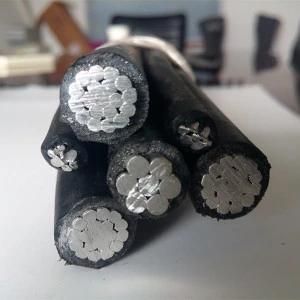

     0.6/1kv X00-a XLPE Insulated Aerial Power Cables with Aluminium Conductor0.6/1kv X00-a XLPE Insulated Aerial Power Cables with Aluminium Conductor

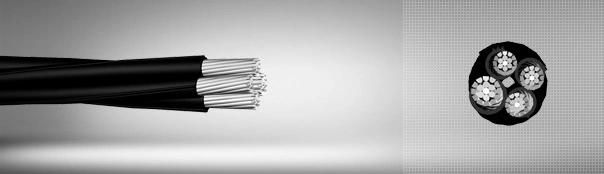

    0.6/1kv X00-a XLPE Insulated Aerial Power Cables with Aluminium Conductor

    Tips:

    Symbols According to  TS HD 361.S3

    SymbolsMaterials Insulating and Unmetalic Sheath MaterialsEPolyethyleneNPolychloropreneVPVCXCross-linked polyethyleneZ1Thermoplastik material has a suitable low level  corrosive gas emission

    Matelic Covers

    ATAluminium screenA8Aluminium screen over each coresC4

    Copper wire braiding over core

    C7

    Copper screen from the ribbon or tape or copper wire

    C8

    Over each core as C7



    Armouring

    Z2

    Galvenized or plain round steel wire armourZ3Galvenized or plain flat steel wire armourZ4Galvenized or plain steel tape armourY2Round aliminium wire armourY3Flat aliminium wire armour Special ConstructionWithout symbolsCircular constructed cableHSheathed or unsheathed separable flat constructed cableH2

    Unseparable flat constructed cables and cordon

    H4

    Multicore flat cable with non insulated one conductor

    H5Stranded cable with two or more cores together H6Flat cable with two or more Conductor MaterialWithout symbolsCopper-AAluminium Conductor Shape-FTwisted cable or twisted conductor of cordon-HTwisted cable or high level twisted conductor of cordon-KOne cable conductor for fixed installation-RRigid, round conductor braided-SRigid, with sector shape conductor, braided-URigid, round conductor solid-WRigid, with sector shaped conductor, solid-YConductor with the shape of the bride wire

    EXAMPLE: YVV-U
    EXAMPLE: YVZ2V-R
    EXAMPLE: YAXC8VZ3V-R

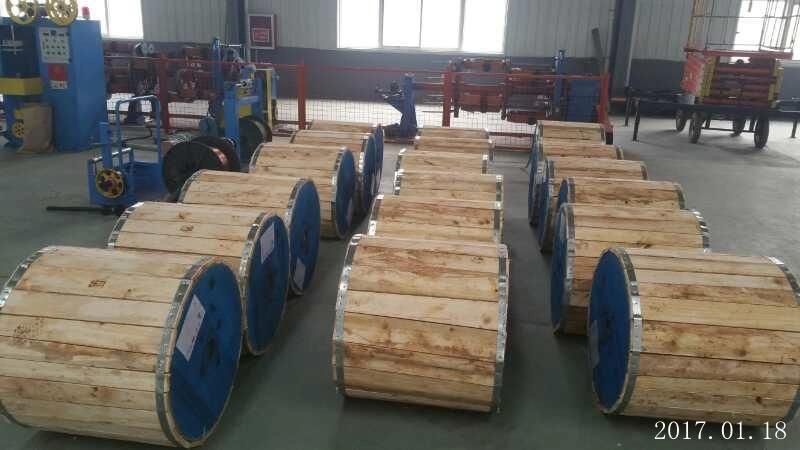

    NFA2X CABLE Packing:

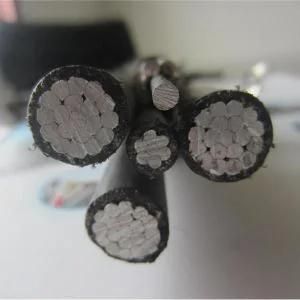

    0.6/1kv X00-a XLPE Insulated Aerial Power Cables with Aluminium Conductor
