• Model NO.：ARMORED CABLES
• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, SGS
• Model：N2sxy, N2xs2y, N2xsey, Na2xsy and Na2xs2y.
• Brand：Hongda
• Inner Semi-Conductive Layer：Semi-Conductive Material
• Insulation：XLPE (Cross-Linked Polyethylene)
• Outer Semi-Conductive Layer：Semi-Conductive Material
• Screen：Copper Wires
• Sheath：PVC (Polyvinyl Chloride)

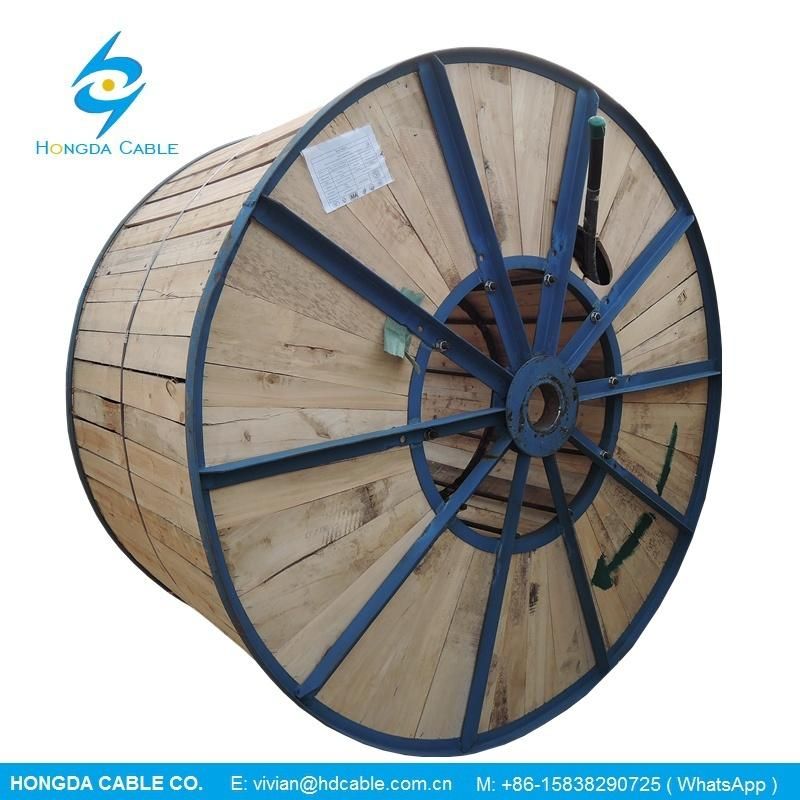

• Transport Package：500m Per Drum
• Specification：1.5 - 630 sq. mm
• Trademark：Hongda
• Origin：China
• HS Code：8544492100
• Production Capacity：5 Kilometers Per Day

Rated Voltage3.6/6 kV6.6 kV,6/10kV11kV,8.7/15kV22kV,12/20kV18/30 kVMaximum System Voltage7.2 kV12 kV17.5 kV24 kV36 kVSize Range25 to 1000 mm²25 to 1000 mm²25 to 1000 mm²35 to 1000 mm²50 to 1000 mm² 10kV single core35mm² to 500mm²10kV 3-core35mm² to 240mm²11kV single core50mm² to 1000mm²11kV 3-core35mm² to 400mm²20kV single core50mm² to 500mm²30kV single core 50mm² to 500mm²33kV single core70mm² to 1000mm²

Please see our MV cable datasheets for further information.

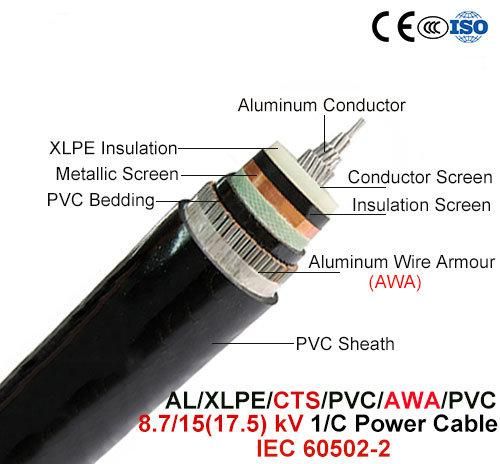

Twisted three-core cable or triplex Armouring:for mechanical protection. Aluminium wire armoured for single-core cables, Galvanised steel wire armour, strip or tape.Tapes:Separator tapes to facilitate peeling, water-swellable tapes to prevent water ingress, Conductive tape for core binding.Outer Sheath:compounds with various properties, tailored to the specific application's requirements, including resistance to oils, greases, rodents, termites, UV and flame, as well as zero halogen emissions.
5. Related Products:
NA2XS(FL)2Y Aluminium Conductor XLPE PE- 18/30 (36)kV Cable
NA2XS(FL)2Y Aluminium Conductor XLPE PE-12/20 (24)kV Cable
NA2XS(FL)2Y Aluminium conductor XLPE PE-6/10 (12)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS(F)2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 18/30k (36)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 12/20 (24)kV Cable
NA2XS2Y Aluminium Conductor XLPE PE - 6/10 (12)kV Cable
N2XS(FL)2Y - 12/20 (24)kV Cable
N2XS(FL)2Y - 6/10 (12)kV Cable
N2XS(F)2Y - 18/30 (36)kV Cable
N2XS(F)2Y XLPE PE - 12/20 (24)kV Cable
N2XS(F)2Y XLPE PE - 6/10 (12)kV Cable
N2XS2Y XLPE PE - 18/30 (36)kV Cable
N2XS2Y XLPE PE - 12/20 (24)kV Cable
N2XS2Y XLPE PE - 6/10 (12)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 18/30 (36)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 12/20 (24)kV Cable
NA2XSY Aluminium Conductor XLPE PVC - 6/10 (12)kV Cable
N2XSEY XLPE PVC - 6/10 (12)kV Cable
N2XSY XLPE PVC - 18/30 (36)kV Cable
N2XSY XLPE PVC - 12/20 (24)kV Cable
N2XSY XLPE PVC - 6/10 (12)kV Cable
BS 6622 XLPE MDPE 6.35/11 (12)kV Cable
BS 6622 XLPE PVC 6.35/11 (12)kV Cable
BS 7835 XLPE LSZH 6.35/11 (12)kV
BS 7835 XLPE LSZH 19/33 (36)kV
BS 6622 XLPE PVC 19/33 (36)kV

6. Packing & Shipping:






7. Why Choose Us ?

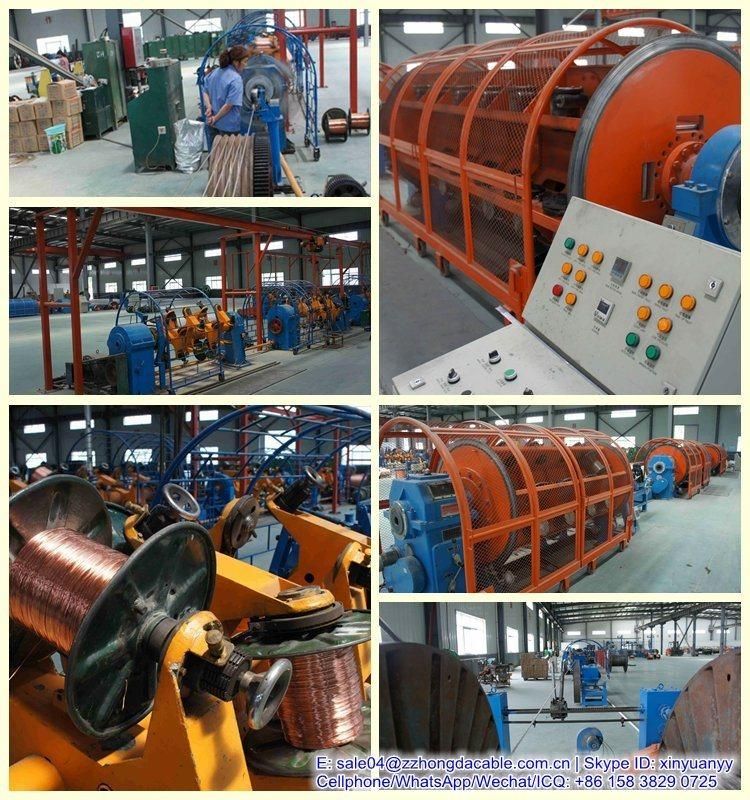

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas.


8. FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 10-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment

Contact information:
Any needs or question ,please contact us ,we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperaton.
For more information, don't hesitate to call us on +86-15838290725
