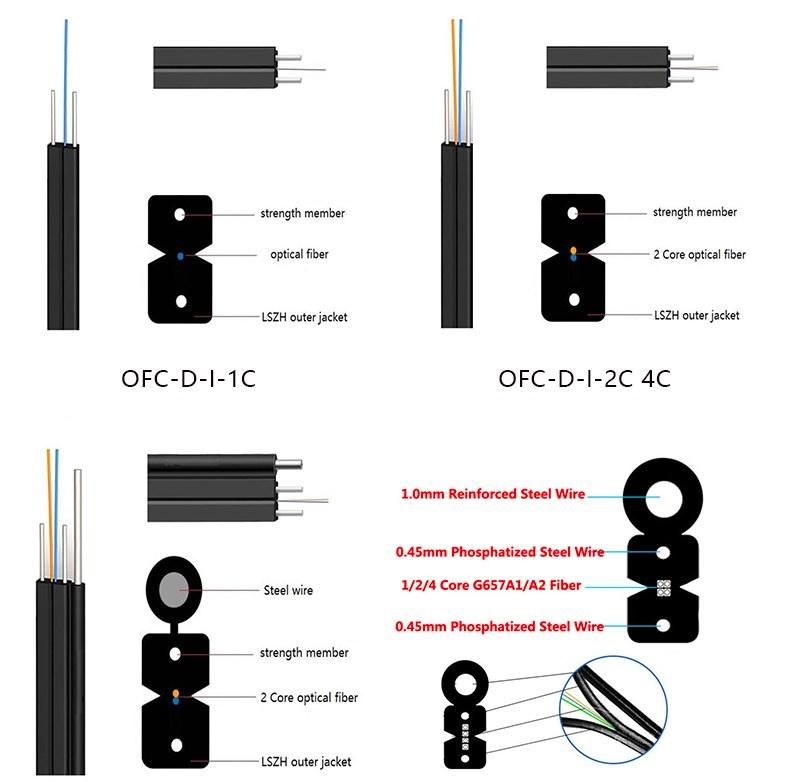

Drop Fiber Optic Cables
Zhejiang Kuayue Cable Co., Ltd.- Application：Local Communication Cable, Fiber Optic Cable, Long Distance Symmetric Cable, Submarine Cable
- Conductor Material：Glasses
- Cover Material：PC
- Type：Single-Mode Fiber
- Material Shape：Round Wire
- Conductor Type：Single-Mode Fiber
Base Info
- Model NO.：fiber optical cable
- Wire Core Material：Glasses
- Certification：CE, ISO, RoHS
- Model：FTTH Fiber Optic Cable
- Brand：Hanli
- Allowed Tensile Strength：>10000n
- Allowed Lateral Pressure：>1000 (N,100mm)
- Transport Package：1000,2000,3000m
- Specification：1,4
- Trademark：hanxin
- Origin：Zhejiang
- HS Code：8544700000
- Production Capacity：3000000m,Month
Description
Fiber CountCable Type Nominal Weight(kg/km) Nominal Weight(lb/kft) Nominal Outer Diameter(mm) Nominal Outer Diameter(in) Maximum Pulling Load Installation(N/Ib) In Service(N/Ib) 1 Simplex 2.0mm 7.6 5.10 2.0 0.079 490/110 290/65 1 Simplex 2.5mm 7.8 5.23 2.5 0.098 490/110 290/65 1 Simplex 2.8mm 8.0 5.37 2.8 0.110 490/110 290/65 1 Simplex 3.0mm 8.2 5.50 3.0 0.118 490/110 290/65 2 Duplex Flat 28.0 18.79 4.0X6.8 0.157X0.267 980/220 580/130 2 Duplex Round 18.4 12.35 4.2 0.165 980/220 580/130 2 Duplex Zip 15.0 10.07 2.4X4.8 0.094X0.188 980/220 580/130 Minimum Bending Radius:
Under installation:20hOD
During operation:10hOD
Temperature Range:
Operating Temperature Range:-40ºC(-40ºF) to +70ºC(+158ºF)
Storage Temperature Range:-50ºC(-58ºF) to +70ºC(+158ºF)
Maximum Compressive Load:2000N
Repeated Impact: 2.9 N.m (J)3h2 impacts
Twist (Torsion):180h10 times, 125hOD
Cyclic Flexing:25 cycles for armoured cables.;
100 cycles for unarmoured cables.
Crush Resistance:875N/cm (500lb/in) Temperature Cycling IEC60794-1-2-F2 Repeated Bending IEC60794-1-2-E6 Tensile Strength IEC60794-1-2-E17 ATorsion IEC60794-1-2-E Crush IEC60794-1-2-E3 Kink IEC60794-1-2-E10 Impact IEC60794-1-2-E4 Cable Bend IEC60794-1-2-E11
Cool Bend IEC60794-1-2-E11 General Purpose Grade Flammability Test: OFN (UL1581) Riser Grade
Plenum Grade
FRPVC Grade
LSZH Grade
LSFROH Grade
FR Grade Flammability Test: OFNR/FT4 (UL1666)
Flammability Test: OFNP/FT6 (UL 910)
Flammability Test: IEC60332-1
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754; Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A
Fire Resistance Test: IEC 60331 / BS 6387 CWZ
GR409-CORE TIA/EIA 568B.3 ICEA-S-83-596
Features
•Suitable for indoor use, such as routing connections in patching systems
•Short "patch cord" cables ideal for links between electronic equipment and fiber panels
•Compatible with wide variety of fiber optic connectors
•High quality tight-buffer coating on fiber for environmental and mechanical protection
•Customized jacket colors available for matching connectors.
•Private labeling on the cable outer jacket is also available.
Welcome to visit our factory and get our samples.
Your inquiry will be answered within 24 hours .Wishing to be your long- term partner ,please feel free to contact me ,we will do our best for you.
Choose us, won't make you disappointed:
1.6years manufactory experience
2.OEM/ODM available
3.Steady product quality
4.Strict quality control
5.Strictly conform to CE,ROHS,Iso9001
6.Quick delivery time(20ft,25days)
Website: http://kuayuecable.en.made-in-china.com http://kuayuecable.en.made-in-china.com
