75ohm Rg Series Rg7 Coaxial Cable (Quad Shield)
Hangzhou Hongfeng Cable Co., Ltd.- Application：Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：Coaxial Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：Rg7
- Wire Core Material：Tinned Wire
- Certification：CE, ISO, RoHS, UL
- Model：Rg7
- Brand：Hf

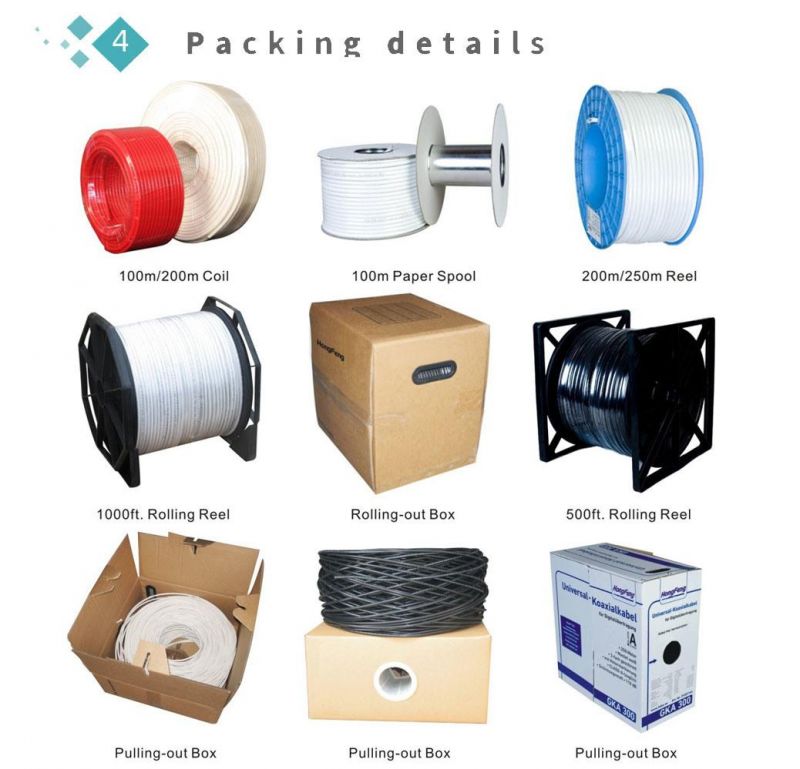

- Transport Package：Drum
- Specification：ISO9001, CE, RoHs, ETL
- Trademark：HF
- Origin：Hangzhou, China
- HS Code：854420000
Description
Basic Info.
Model NO. Rg7 Wire Core Material Tinned Wire Certification CE, ISO, RoHS, UL Model Rg7 Brand Hf Transport Package Drum Specification ISO9001, CE, RoHs, ETL Trademark HF Origin Hangzhou, China HS Code 854420000Product Description

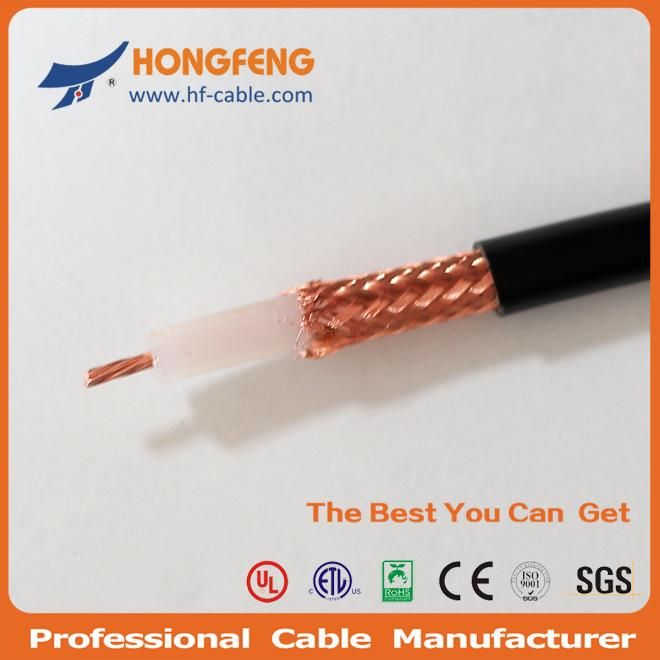

Specifications:1) Inner conductor: CCS 1.29mm
2) Insulation: Foamed PE
3) Outer conductor (shield):
A) Bonded aluminum foil
B) Al-Mg braiding 60% coverage
C) Jacket: PVC 8.1mm
4) Impedance: 75&Plusmn; 3Ω
5) Attenuation (20° C dB/100m max. ): 5MHz 1.87, 55MHz 4.17,
211MHz 8.04, 270MHz 9.15, 300MHz 9.68, 330MHz 10.17, 400MHz 11.25,
450MHz 12.01, 550MHz 13.35, 750MHz 15.78, 870MHz 17.09, 1000MHz 18.44
