0.6/1kv Overhead Cable Aerial Bundled Cables with Lighting Core
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：XLPE,PE,PVC
- Insulation Material：XLPE
Base Info
- Model NO.：Aerial Bundled Cables
- Material Shape：Round Wire
- Range of Application：Overhead Cable
- Certification：ISO9001, CE, CCC, RoHS
- Insulation：XLPE,PE,PVC
- Core：4
- Standard：IEC,NFC33-209
- Quality Guarantee：10 Years
- Sheath Color：Black
- Mark：Laser Type
- Manufacture：Yes
- Sample：Yes
- Cable Parts：Yes
- Transport Package：Wooden Drum
- Specification：4CORE ABC cable
- Trademark：Hongda
- Origin：China, Henan
- HS Code：8544492100
- Production Capacity：3000km,Per Months
Description
lbs/1000ft AWG - mil AWG - lbs/1000ft 6201 Alloy Neutral Messenger AAC Neutral Messenger Bay 6 Solid 45 6 7 145 140.0 Clydesdale 4 Solid 45 4 7 208 201.8 French Coach 6 7/w 45 6 7 155 144.3 Pinto 4 7/w 45 4 7 223 207.9 German Coach 4 Solid 45 4 7 214 208.3 Mustang 2 7/w 45 2 7 333 312.6 Arabian 4 7/w 45 4 7 229 214.4 Criollo 1/0 19/w 60 1/0 7 529 504.5 Belgian 2 7/w 45 2 7 344 323.1 Percheron 2/0 19/w 60 2/0 7 649 620.5 Shetland 1/0 19/w 60 1/0 7 546 521.1 Hanoverian 3/0 19/w 60 3/0 19 799 765.6 Thoroughbred 2/0 19/w 60 2/0 7 670 641.5 Oldenburg 4/0 19/w 60 4/0 19 986 946.7 Trotter 3/0 19/w 60 3/0 7 825 791.8 Lippizaner 336.4 19/w 60 336.4 19 1,546 1,519.2 Walking 4/0 19/w 60 4/0 7 1019 979.7 ACSR Neutral Messenger Morochuca 6 Solid 45 6 6/1 152 147.4 Grullo 2/0 19/w 60 2/0 6/1 707 678.7 Chola 6 7/w 45 6 6/1 162 151.7 Suffolk 3/0 19/w 60 3/0 6/1 872 838.9 Morgan 4 Solid 45 4 6/1 226 220 Appaloosa 4/0 19/w 60 4/0 6/1 1079 1039.2 Hackney 4 7/w 45 4 6/1 241 226.1 Bronco 336.4 19/w 60 336.4 18/1 1613 1568.2 Palomino 2 7/w 45 2 6/1 362 342.6 Gelding 336.4 19/w 60 4/0 6/1 1548 1494.3 Costena 1/0 19/w 60 1/0 6/1 575 550.6

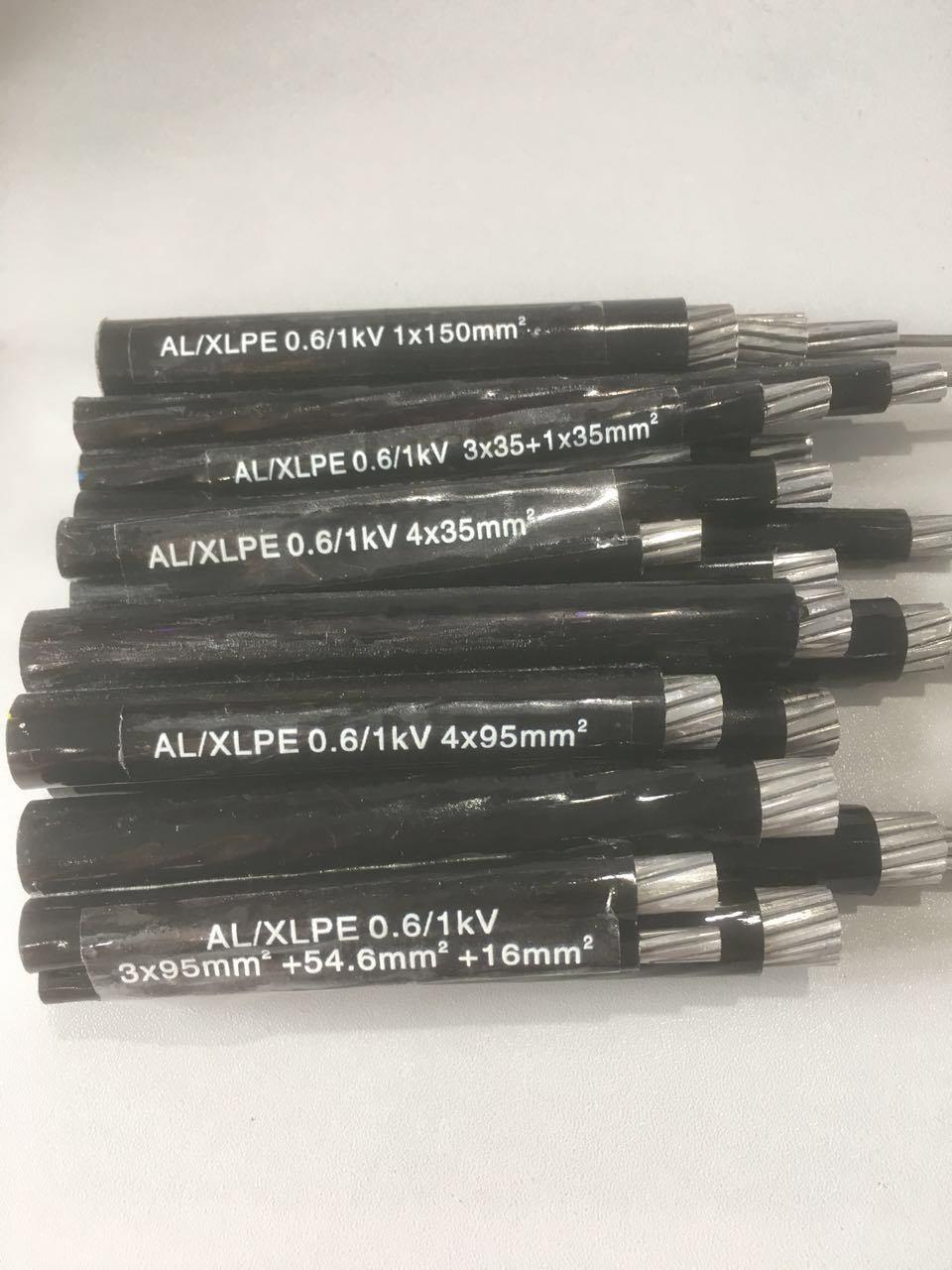

Low Voltage Aerial Bundled Cable/ Low Voltage ABC Cable
The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.
Packaging&Delivery
(2)Conductor temperature of 90°C for XLP, 75°C for poly; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun.
Low Voltage Aerial Bundled Cable/ Low Voltage ABC Cable
The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.
To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.
Packaging&Delivery

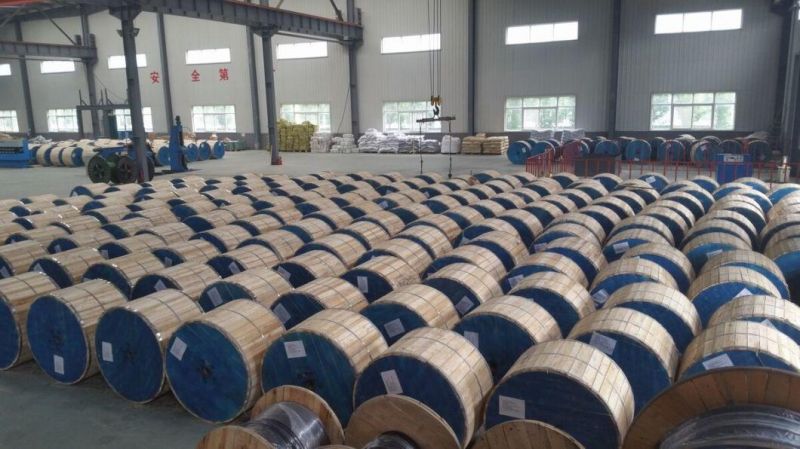

Packaging Details:Wooden drums,steel wooden drums or as your requirement
Delivery Time:Normally within 10 days (detailly depend on the order quantity)
