Silicone Heating Cable

Jiangyin Senphus Electrical Material Co., Ltd.
  • Type：Insulated
  • Conductor Type：Alloy Wire
  • Application：Heating
  • Conductor Material：Alloy Wire
  • Sheath Material：PVC
  • Insulation Material：Teflon

Base Info

  • Model NO.：SR-86
  • Diameter：1mm to 5mm

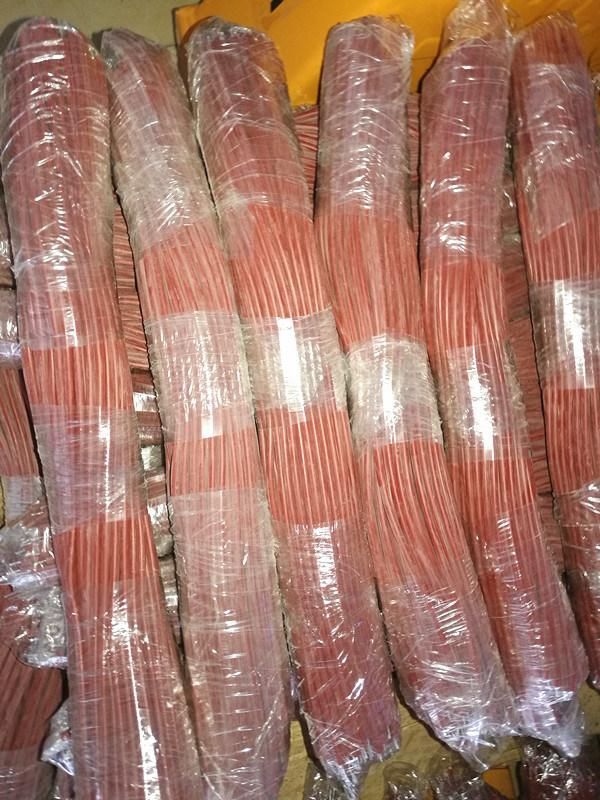

  • Transport Package：Roll, Carton, Plastic Bag
  • Specification：CE
  • Trademark：SENPHUS
  • Origin：China
  • HS Code：85168000
  • Production Capacity：80000meters,Day

Description

Basic Info.

Model NO. SR-86 Diameter 1mm to 5mm Transport Package Roll, Carton, Plastic Bag Specification CE Trademark SENPHUS Origin China HS Code 85168000 Production Capacity 80000meters/Day

Product Description

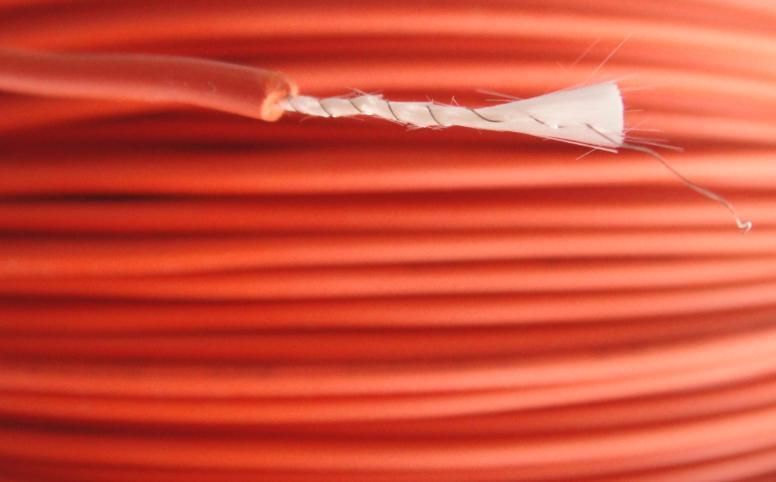

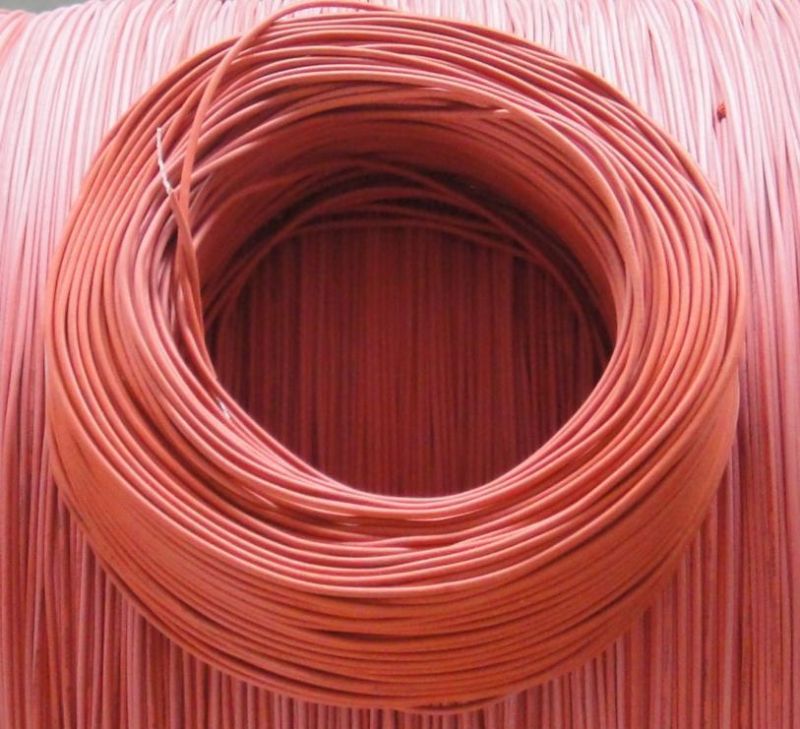

Silicone Heating Cable

Product Description
External diameter of cover: 1.2~6 mm
Wire Dia: 1* 0.75
Conductor: Ni-Cr, constantan
Temperature Rating: 200C degree
Color: White, black, red, grey, etc
Insulator: Silicone rubber
Isulation voltage: 3000V
Rated voltage: 600V
Resister range: 0.1-20000Ω /m
Diameter range: 1.2-6.0mm
Product life: More than 10000h
Silicone Heating Cable
Silicone Heating Cable
Silicone Heating Cable

Apply:
Refrigeratory, air-conditioner, electric cooker, defrost, electric blanket, electric oven, teapot, flowerpot, anti-icing, etc

Structure&test
1. Core: Glass fiber or polyester fiber
2. Heating thread: Constantan, nickel-chromium, iron chromium, copper nickel
3. Insulator: Silicon rubber of different thickness
5. Bend test: 5000 times (according to UL/IEC standard)
5. Circumnutating test: 250000 times ( according to UL/ IEC standard)
