Submarine Cable 2xs (FL) 2yraa RM 6/10 (12) Kv Water Blocking 3 Cores
YIFANG ELECTRIC GROUP INC.- Application：Submarine
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PE
- Material Shape：Round Wire
Base Info
- Model NO.：YJSY33
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE
- Model：Yjsy33
- Brand：Yifang
- Product Name：Submarine Cable 2xs(FL)2yraa RM 6,10 (12) Kv
- Transport Package：Wooden Drum, Wooden Iron Drum, Steel Drum, etc
- Specification：IEC, BS, DIN, ASTM, JIS, GOST, ETC
- Trademark：Yifang
- Origin：China
- HS Code：8544601200
- Production Capacity：100km Per Month
Description
Basic Info.
Model NO. YJSY33 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Yjsy33 Brand Yifang Product Name Submarine Cable 2xs(FL)2yraa RM 6/10 (12) Kv Transport Package Wooden Drum, Wooden Iron Drum, Steel Drum, etc Specification IEC, BS, DIN, ASTM, JIS, GOST, ETC Trademark Yifang Origin China HS Code 8544601200 Production Capacity 100km Per MonthProduct Description
Product DetailsSubmarine Cable 2XS(FL)2YRAA RM 6/10 (12) kV Water Blocking 3 Cores
Designation internationale : 6/10 (12)kV 3 core Copper XLPE cable, Cu-screen, Al/PE-sheath, Armouring
3 core XLPE-insulated cables with PE sheath and armouring, longitudinally and radially watertight
NORMES
Internationales : IEC 60502-2
DESCRIPTION

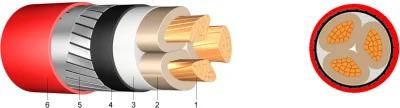

Stranded copper conductor class 2 according to IEC 60228, semi conducting conductor screen, insulation of cross-linked polyethylene (XLPE), semi conducting insulation screen, semi conducting bedding, copper screen with swellable powder, aluminium tape bonded to PE sheath, 3 core layed up, polypropylene yarn bedding, armouring of galvanized steel, PE outer sheath.
Application in water, for example internal and external cabling of offshore windparks, power supply of islands, lighthouses and offshore plattforms.
Optionally watertight conductor with sealing compound, Control Cables in the interstices available.
All medium voltage submarine cables are manufactured on the basis of specifications and can be adapted to the requirements of the customer. Therefore, all technical information are purely for information purposes and the electrical characteristics are calculated for water saturated seabeds and values which are specified in the data sheets. For your specific requirements and laying depths please don't hesitate to contact us.
Product Introduction
Product Parameters
| Sizes(mm2) | Overall Dia.(mm) | Weight(kg/km) | Rated Current(A) |
| 3x1x50/16 | 73.00 | 8200 | 199 |
| 3x1x70/16 | 77.00 | 9900 | 241 |
| 3x1x95/16 | 80.00 | 11100 | 288 |
| 3x1x120/16 | 84.00 | 12200 | 327 |
| 3x1x150/25 | 87.00 | 13600 | 363 |
| 3x1x185/25 | 93.00 | 16800 | 405 |
| 3x1x240/25 | 99.00 | 19100 | 464 |

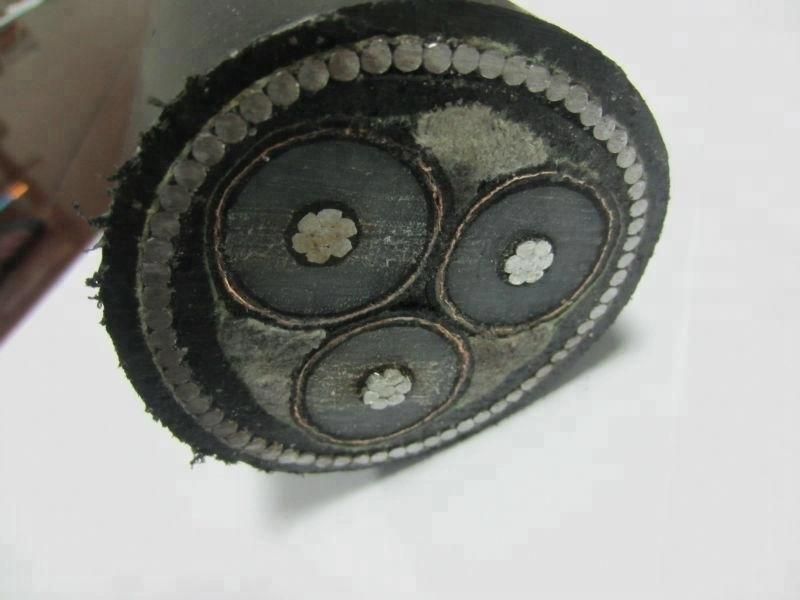

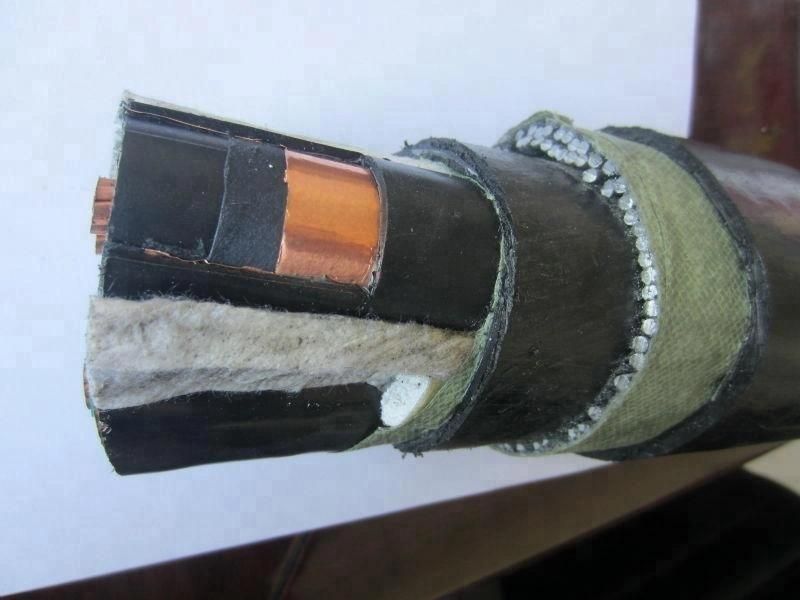

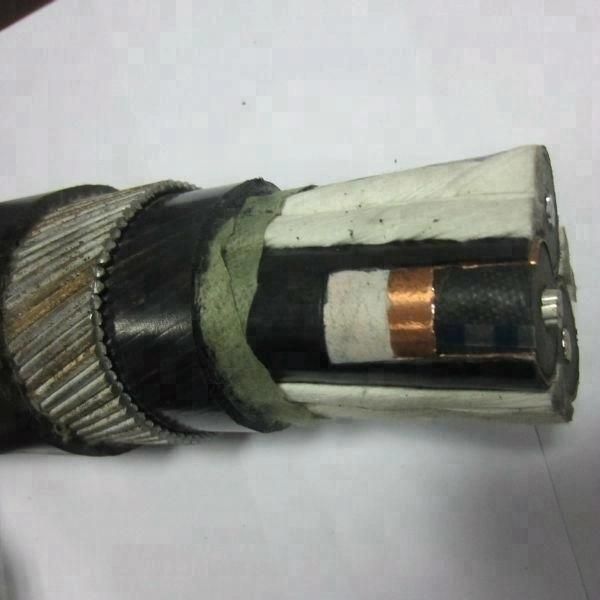

Product Details Show

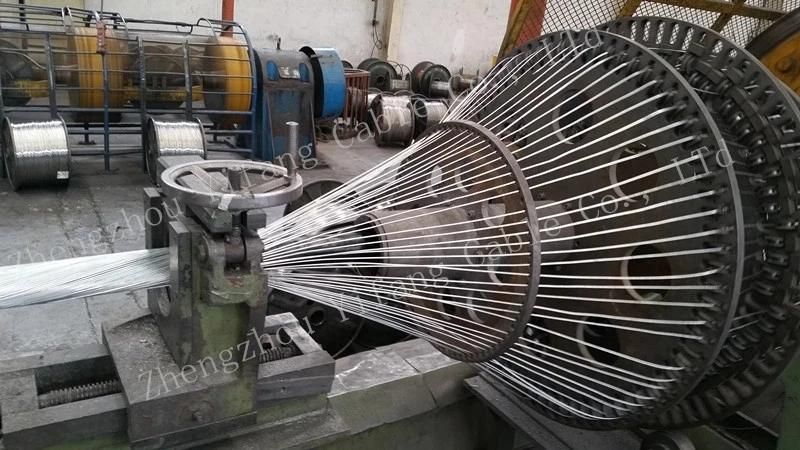

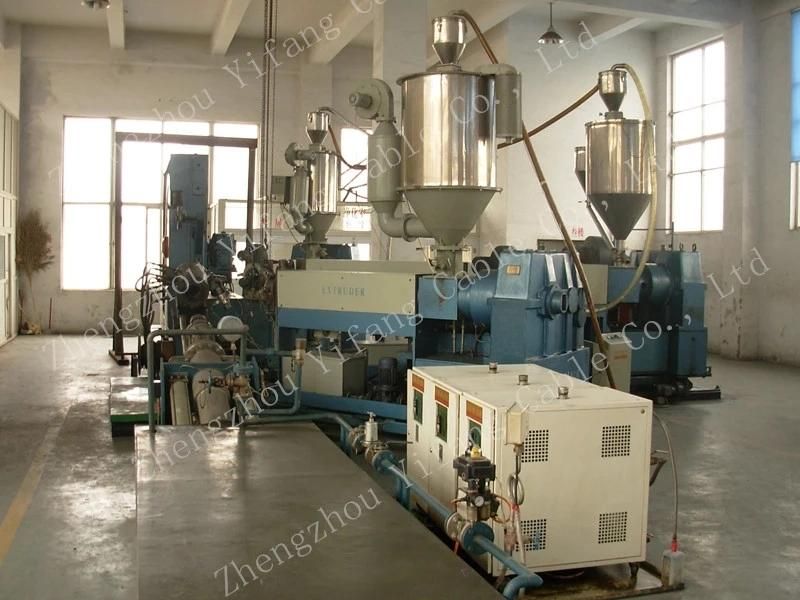

Product Processing
