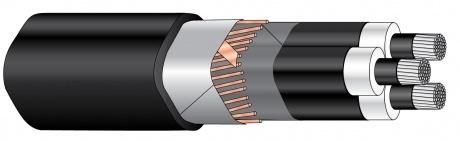

6/10 (12) Kv XLPE Insulated PVC Sheathed Unarmoured Power Cable
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：10kV cable BM39
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：YJV
- Brand：Yifang
- Option Conductor：Aluminum
- Transport Package：Wooden or Wooden-Steel Drum
- Specification：multicores
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544601200
- Production Capacity：300km,Month
Description
Conductor
Conductor Nominal Thickness Insulation Copper Nominal Thickness
screen
screen
of Sheath
( mm )
Approx
Overall Approx Insulation Conductor
Conductor Nominal Thickness Insulation Copper Nominal Thickness
screen
screen
of Sheath
( mm )
Approx
Overall Approx Insulation
resistance at
15.6°C (Min.)
( Mohm/km)
Size
( mm2 )
Shape
Outside
diameter
( mm )
16
25
35
50
70
N.C.
C.C.
C.C.
C.C.
C.C.
5.10
5.91
6.95
8.05
9.67
0.8
0.8
0.8
0.8
0.8
3.4
3.4
3.4
3.4
3.4
0.8
0.8
0.8
0.8
0.8
0.1
0.1
0.1
0.1
0.1
2.1
2.3
2.4
2.5
2.6
42.2
44.1
46.7
49.3
53.0
1833
2188
2597
3074
3872
2200
1700
1500
1400
1200
95
120
150
185
240
C.C.
C.C.
C.C.
C.C.
C.C.
11.39
12.33
14.24
15.98
18.32
0.8
0.8
0.8
0.8
0.8
3.4
3.4
3.4
3.4
3.4
0.8
0.8
0.8
1.0
1.0
0.1
0.1
0.1
0.1
0.1
2.8
2.9
3.0
3.1
3.3
57.0
60.4
63.6
68.6
74.0
4838
5732
6694
8090
10080
1100
1000
950
850
780
300
400
C.C.
C.C.
20.65
23.33
0.8
0.8
3.4
3.4
1.0
1.0
0.1
0.1
3.4
3.7
79.4
85.7
12170
14976
700
650
