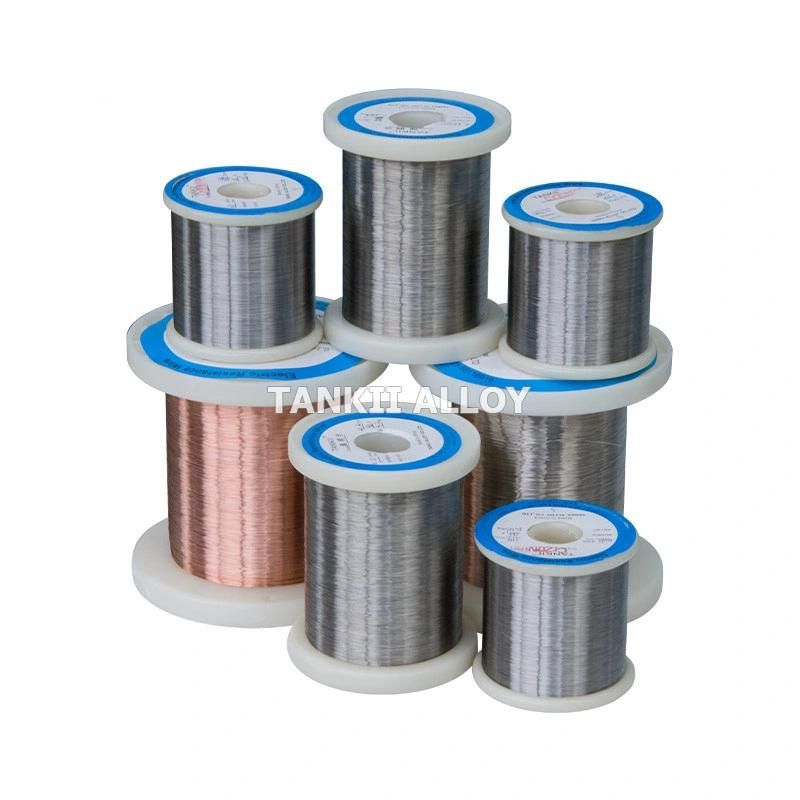

0.1mm 0.193mm 0.711mm KP KN Chromel alumel thermocouple wire (type K)

Shanghai Tankii Alloy Material Co., Ltd.
  • Type：Bare
  • Conductor Type：Solid
  • Application：Heating, Thermocouples
  • Conductor Material：Chromel Alumel
  • Sheath Material：Bare
  • Insulation Material：Bare

Base Info

  • Model NO.：K
  • Material Shape：Round Wire
  • Range of Application：heating
  • Certification：ISO9001, RoHS
  • Brand：Tankii
  • Dia：0.1~12mm
  • Surface：Bright, oxidized
  • Grade：I,II
  • Tensile strength：more than 390
  • Item：0.1mm 0.193mm 0.711mm KP KN Chromel alumel thermoc
  • Usage：Temperature measuring
  • Transport Package：Carton box, wooden case
  • Specification：0.1~12mm
  • Trademark：TANKII
  • Origin：Shanghai, China
  • HS Code：7505220000
  • Production Capacity：1000 Tons,Year

Description


Conductor Name
Polarity
CodeNominal Chemical Composition /%NiCrSi
Ni-Cr
Positive
KP
90
10
--
Ni- Si
Negative
KN
97
--
3 Working Temperature
Diameter
/mm

Long time Working temperature
/ºC
 Short period Working temperature
/ºC
0.3
700
800
0.5
800
900
0.8,1.0
900
1000
1.2,1.6
1000
1100
2.0,2.5
1100
1200
3.2
1200
1300
