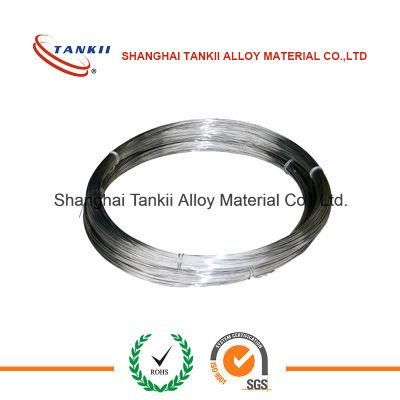

Thermocouple wire type R with noble metal conductor

Shanghai Tankii Alloy Material Co., Ltd.
  • Type：Bare
  • Conductor Type：Solid
  • Application：Heating
  • Conductor Material：PT87Rh
  • Sheath Material：PVC
  • Insulation Material：PVC

Base Info

  • Model NO.：R
  • Material Shape：Round Wire
  • Range of Application：Heating
  • Certification：ISO9001
  • Brand：Tankii
  • Dia：0.5mmm
  • Surface：Bright
  • Grade：I,II,III
  • Tensile strength：344
  • Transport Package：Roll with Plastic Film Wrapped and Carton Package
  • Specification：0.2,0.3,0.5,0.8,1.0,1.2,1.6,2.0mm
  • Trademark：TANKII
  • Origin：China
  • HS Code：7505220000
  • Production Capacity：300 Tons,Year

Description


Conductor Name
Polarity
Code
Nominal Chemical Composition /%
Pt
Rh
Pt90Rh
Positive
SP
90
10
Pt
Negative
SN,RN
100
--
Pt87Rh
Positive
RP
87
13
Pt70Rh
Positive
BP
70
30
Pt94Rh
Negative
BN
94
6 Working temperature range
Dia. /mm
Type
Long time working temp./ ºC
Short time working temp. / ºC
0.5
S
1300
1600
0.5
R
1300
1600
0.5
B
1600
1700
