• Model NO.：nfc
• Material Shape：Round Wire
• Range of Application：Overhead
• Certification：ISO9001, CE, UL, CCC, RoHS, VDE
• Brand：Yifang
• Item：ABC Cable
• Transport Package：Drum, Reel or According to Your Request
• Specification：drums
• Trademark：Yifang
• Origin：China
• HS Code：8544601200
• Production Capacity：200000 Kilometer,Kilometers , Month

Basic Info.

Model NO. nfc Material Shape Round Wire Range of Application Overhead Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Yifang Item ABC Cable Transport Package Drum, Reel or According to Your Request Specification drums Trademark Yifang Origin China HS Code 8544601200 Production Capacity 200000 Kilometer/Kilometers / Month

Product Description

Aerial Bundled Cable, ABC Cable, Overhead cable,ASTM, BS, NFC, IEC, DIN Standard

1 Standard
IEC60502, IEC61089; NF C33-209; GB 12527-9; ASTM B231, ASTM B232, BS215; DIN48201, DIN48204.
We can also manufacture ABC cable according to customer's special requirements.
2 Application
The cable as a new type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting. To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75ºC for polyethylene insulated conductors or 90ºC for cross-liked polyethylene(XLPE) insulated conductors.
3 Specification
Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core;Phase conductor is insulated by XLPE or HDPE or PVC.
It meets or exceeds the following specifications:
1). Aluminum Wire, 1350-H19 for Electrical Purposes.
2). Aluminum Conductors, Concentric-Lay-Stranded.
3). Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
4). Concentric-Lay-Stranded 6201-T81 Conductors.
5). Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474
4 Type of XLPE(PE) insulated ABC cable (service drop)
XLPE(PE) insulate cable (service drop)covers mainly three types:

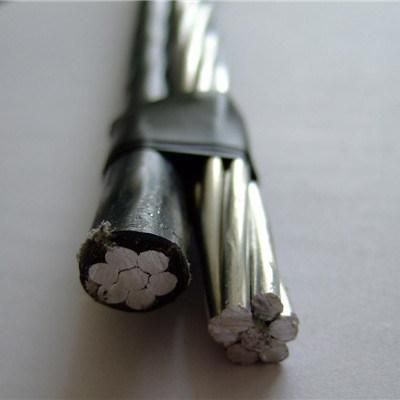

Duplex Service Drop
Triplex Service Drop
Quadplex Service Drop
5 Construction
The basic construction is as follows:
3 power cores consisting of standard aluminum conductors, insulated with XLPE insulation
+ One sheath lighting aluminum conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)
The messenger conductor can be of galvanized steel wire also.
The purpose of messenger wire is:
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

Type
Name
Application
JKTRYJ
Soft copper conductor XLPE insulation aerial cable
The transformer leads to connect the line
JK(L)YJ
Cu (Al) copper conductor XLPE insulation aerial cable
When laying fixed cable, the user must keep certain distance between cable and trees. During power transmission, allow the cable with multifarious contact in tree.
JK(L)Y
Cu (Al) copper conductor HDPE insulation aerial cable
JKLGYJ
Steel-Al conductor XLPE insulation aerial cable
JKLGY
Steel-Al conductor HDPE insulation aerial cable
JKLYJ/Q
Al conductor light XLPE insulation aerial cable
When laying fixed cable, the user must keep certain distance between cable and trees. During power transmission, the cable can be allowed with trees just for a short time.
JKLY/Q
Al conductor light HDPE insulation aerial cable
JKLGYJ/Q
Steel-Al conductor light XLPE insulation aerial cable
JKLGY/Q
Steel-Al conductor light HDPE insulation aerial cable
