22 AWG 2 Conductor Solid Bare Copper Cmr Security Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, Alarm Cable Security Cable
- Conductor Material：Copper
- Cover Material：PVC
- Material Shape：Round Wire
- Conductor Type：Solid
- Certification：CE, ISO, RoHS, CCC, ETL,CPR
Base Info
- Brand：Risun or OEM
- Insulation：PVC
- Sheath：PVC
- Shield：Unshield
- Transport Package：100m,Coil, 305m,Relex Box, 500m,Wooden Drum
- Origin：Hangzhou, Zhejiang, China
- HS Code：8544491100
- Production Capacity：20000 Boxes , Month
Description
SheathMaterial : FR-PVC (complies RoHS)
Electrical Properties
Mechanical Properties
Package

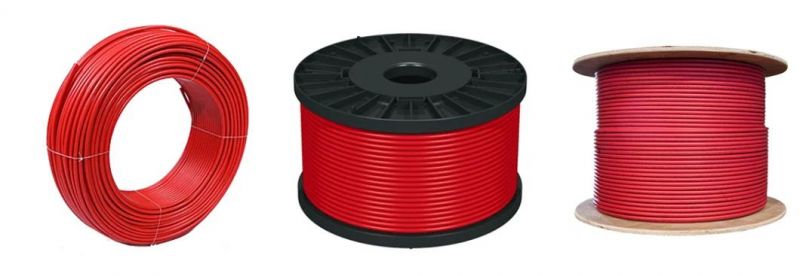

100m/coil,305m/relex box,500m/wooden drum or according to your request
Company Profile
Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china. Our main cables include CAT5E, CAT6,CAT6A, cat7, multiple cores (pairs) of alarm cable and telephone cable, audio cable, Jumper wire, KNX Cable, RG59, RG6, RG11, RG58/U, KX6, RG213 etc.
95% of our goods for the export market. 15 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 15 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
process of production:
Electrical Properties
| Voltage Rating | ELV |
| Max. Conductor DC Resistance @ 20°C | 93.3Ω/km |
| Min. Insulation Resistance @ 20°C | 50MΩ.km |
| Voltage Test: Conductor to core | 1.5 kV ac/1min |
| Voltage Test: Core to sheath | 3.0 kV ac/1min |
Mechanical Properties
| Operating Temperature Range | -15 to 70ºC |
| Max. Recommended Pulling Tension | 56N |
| Min. Bend Radius (install) | 36mm |
| Approximate Mass | 1.92kg/100m |
Package
100m/coil,305m/relex box,500m/wooden drum or according to your request
Company Profile
Risun is a manufacturer and exporter of high quality lan cable/network cable,coaxial cable, alarm cable and telephone cable in china. Our main cables include CAT5E, CAT6,CAT6A, cat7, multiple cores (pairs) of alarm cable and telephone cable, audio cable, Jumper wire, KNX Cable, RG59, RG6, RG11, RG58/U, KX6, RG213 etc.
95% of our goods for the export market. 15 years of experience in this field makes us very familiar with export handling.we have customer in more than 40 countries all over the world.in the past 15 years, we have already get ETL, CE, ROHS, ISO9001,CPR certification.
process of production:
