Electrical Wire Customized Silicone Rubber Fiberglass Cables
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Tinned Copper Wire
- Sheath Material：Silicone Rubber
- Insulation Material：Fiberglass
Base Info
- Model NO.：Silicone fiberglass Cable
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona
- Insulation：Silicone Rubber
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-60-+150c
- Rated Voltage：300V
- Od Tolerance：+,-0.1mm
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Oil Equipment, Electric Machinery, etc

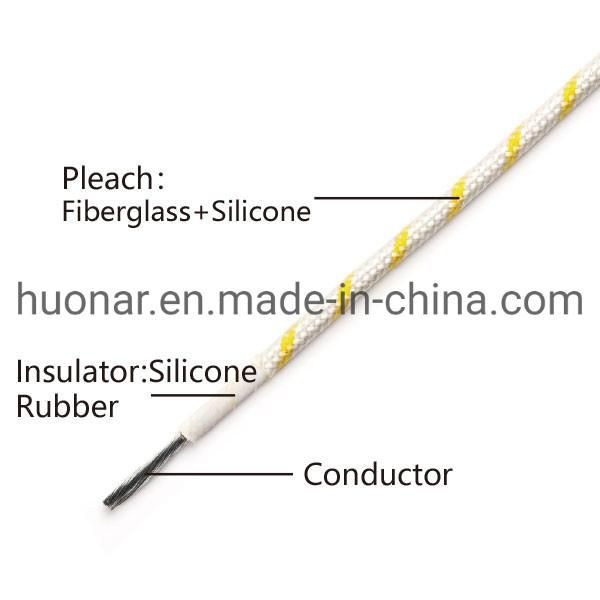

- Pleach：Fibreglass +Siliconce
- Transport Package：Wooded Case, Carton
- Specification：0.30-1.5mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
InsulationElectrical Properties Packing Sectional
Area mm² Conductor
Construction
NO.XΦmm Diameter
mm Insulation
Thickness
mm Pleach
Thickness
mm Outer
Diameter
mm Max.Conductor
Resistance DC 20'C
Ω/km M/coil 20 7x0.32 0.96 0.78 0.15 2.82 36.7 305 22 7x0.26 0.78 0.78 0.15 2.64 59.4 610 24 7x0.20 0.60 0.78 0.15 2.46 94.2 610 26 7x0.16 0.48 0.78 0.15 2.34 150 610
Area mm²
Construction
NO.XΦmm
mm
Thickness
mm
Thickness
mm
Diameter
mm
Resistance DC 20'C
Ω/km
