• Model NO.：GW03-2B
• Material Shape：Round Wire
• Range of Application：Heating
• Certification：ISO9001, CE, UL, CCC, RoHS, CSA
• Brand：Fongming
• Name：Fiberglass Braid High Temperature Resistance Wire
• Rating Voltage：300V
• Working Temperature：350c
• Color：as Required
• Sample：3 Meters Free, 3 Days
• Customize：Available
• MOQ：1000 Meters
• Standard：UL758, UL1581
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：0.14-4mm2
• Trademark：Fongming
• Origin：Yangzhou, P. R China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. GW03-2B Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name Fiberglass Braid High Temperature Resistance Wire Rating Voltage 300V Working Temperature 350c Color as Required Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Standard UL758, UL1581 Transport Package 305m Per Roll, Carton Box Outside Specification 0.14-4mm2 Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

Product Description

Fiberglass Braid High Temperature Resistance Wire

Description
Name: Fiberglass Braid High Temperature Resistance Wire
Model: GW03-2B
Size: 0.14-4.0mm2

Feature
Ratings Voltage: 300V
Rated Temperature: 350C

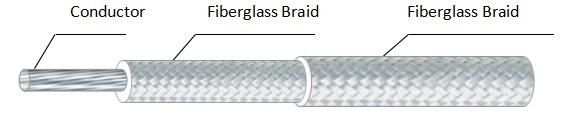

Structure
Conductor: 27% Nickel Plated Copper
Insulation: Fiberglass Braid 2 Layers with Silicone Resin Coating
Color: White





Size (mm2)	Conductor Structure	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)	Braid Thickness (mm)	Diameter (mm)
0.14	7/0.16	0.48	0.25	0.98	0.2	1.4±0.1
0.22	7/0.2	0.6	0.25	1.10	0.2	1.5±0.1
0.25	7/0.23	0.69	0.25	1.19	0.2	1.6±0.1
0.5	16/0.2	0.92	0.25	1.42	0.2	1.8±0.1
0.75	24/0.2	1.13	0.25	1.63	0.2	2.1±0.1
1.0	32/0.2	1.31	0.25	1.81	0.2	2.2±0.1
1.5	30/0.254	1.58	0.25	2.08	0.25	2.6±0.2
2.0	40/0.254	1.83	0.25	2.33	0.25	2.8±0.2
2.5	50/0.254	2.04	0.25	2.54	0.25	3.1±0.2
4.0	34/0.39	2.62	0.25	3.12	0.25	3.6±0.2

Certifications



Company Information





Packaging&Shipping




Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.



2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3. Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
