• Model NO.：K-A-A, J-A-A
• Material Shape：Round Wire
• Range of Application：Temperature Measurement
• Certification：ISO9001, CE, UL, CCC, RoHS
• Brand：Fongming
• Name：PFA Insulated J Type Thermocouple Wire
• Color：as Required, Red, Green, Yellow, Blue
• Sample：3 Meters Free, 3 Days
• Customize：Available
• MOQ：1000 Meters
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：2*26-2*14AWG
• Trademark：Fongming
• Origin：Yangzhou, P. R China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. K-A-A, J-A-A Material Shape Round Wire Range of Application Temperature Measurement Certification ISO9001, CE, UL, CCC, RoHS Brand Fongming Name PFA Insulated J Type Thermocouple Wire Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 2*26-2*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

Product Description

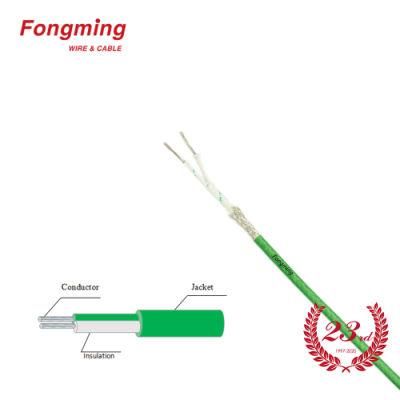

PFA Insulated K J Type Thermocouple Wire

Description
Name: Thermocouple Wire
Model: K-A-A, J-A-A
Size: 2*26-2*14AWG

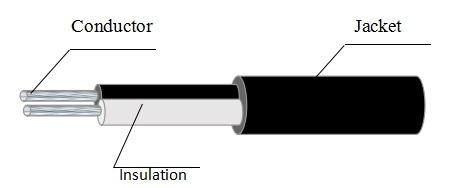

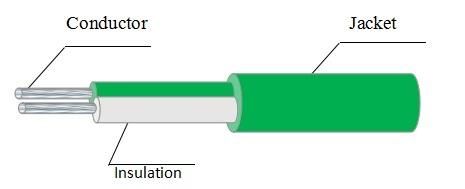

Structure
Conductor: Ni-Cr, Ni-Si (Or other materials for E T R S N Type)
Insulation: Extruded PFA
Jacket: Extruded PFA








Size (AWG)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.3	1.5±0.2*2.4±0.2
2*24	7/0.2	0.6	0.2	1.0	0.3	1.6±0.2*2.6±0.2
2*22	7/0.254	0.76	0.2	1.2	0.3	1.8±0.2*3.0±0.2
2*20	7/0.32	0.96	0.2	1.4	0.3	2.0±0.2*3.4±0.2
2*18	7/0.39	1.17	0.25	1.7	0.4	2.5±0.2*4.2±0.2
2*16	19/0.3	1.5	0.25	2.0	0.4	2.8±0.2*4.8±0.2
2*14	19/0.37	1.85	0.25	2.4	0.4	3.2±0.2*5.6±0.2

Certifications



Company Information





Packaging&Shipping





Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.



2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3. Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
