• Model NO.：KX-A-A, JX-A-A
• Material Shape：Round Wire
• Range of Application：Temperature Measurement
• Certification：ISO9001, CE, UL, CCC, RoHS
• Name：PFA Insulated K J Type Thermocouple Extension Wire
• Color：as Required, Red, Green, Yellow, Blue
• Sample：3 Meters Free, 3 Days
• Customize：Available
• MOQ：1000 Meters
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：2*26-2*14AWG
• Trademark：Fongming
• Origin：Yangzhou, P. R China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. KX-A-A, JX-A-A Material Shape Round Wire Range of Application Temperature Measurement Certification ISO9001, CE, UL, CCC, RoHS Name PFA Insulated K J Type Thermocouple Extension Wire Color as Required/ Red, Green, Yellow, Blue Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 2*26-2*14AWG Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

Product Description

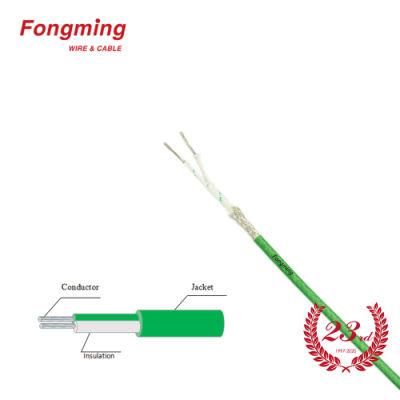

PFA Insulated KX JX Type Thermocouple Extension Wire

Description
Name: PFA Insulated KX JX Type Thermocouple Extension Wire
Model: KX-A-A, JX-A-A
Size: 2*26-2*14AWG

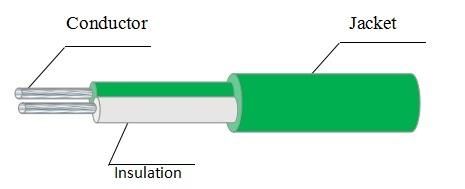

Structure
Conductor: Ni-Cr, Ni-Si (Or other material for S T E N L R Type)
Insulation: Extruded PFA
Color: Positive-Green, Negative-White
Jacket: Extruded PFA
Color: Green







Size (mm)	Conductor Structure P&N  (mm)	Diameter (mm)	Insulation Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	O.D. (mm)
2*26	7/0.16	0.48	0.2	0.9	0.3	1.5*2.4
2*24	7/0.2	0.6	0.2	1.0	0.3	1.6*2.6
2*22	7/0.254	0.76	0.2	1.2	0.3	1.8*3.0
2*20	7/0.32	0.96	0.2	1.4	0.3	2.0*3.4
2*18	7/0.39	1.17	0.25	1.7	0.4	2.5*4.2
2*16	19/0.3	1.5	0.25	2.0	0.4	2.8*4.8
2*14	19/0.37	1.85	0.25	2.4	0.4	3.2*5.6

Certifications



Company Information





Packaging&Shipping





Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.



2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3. Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
