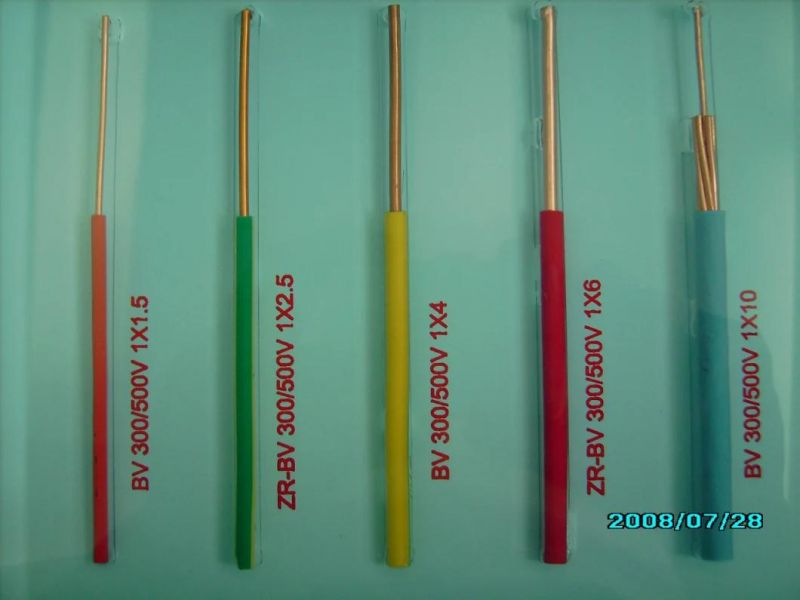

Solid or Stranded Copper Conductor PVC Insulation House Wiring Electric Cables 1.5mm2 2.5mm2
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：House Wire
- Conductor Material：Copper
- Sheath Material：N,a
- Insulation Material：PVC
Base Info
- Material Shape：Round Wire
- Range of Application：LSOH
- Certification：ISO9001, CE, CCC
- Transport Package：in Roll
- Specification：1.5mm2 2.5mm2 4mm2 6mm2 10mm2
- Origin：China
- HS Code：8544601200
Description
Size
Unit
1*50mm2
1*35mm2
1*25mm2
1*10mm2
Type of Cable
Grounding Power cable
Rate Voltage
450/750V
Conductor
-
-
-Material
-
Annealed Copper Wire IEC 60228 cl.2
-Conductor size
mm2
50
35
25
10
-Structure
No./mm
7/3.0
5/2.98
5/2.52
5/1.60
-Sector height
mm
8.0
7.0
6.0
4.1
Insulation
-
-
-Material
-
Fire Resistance/UV Protection PVC
-Insulated colors
-
Black or as request
-Nominal thickness
mm
1.4
1.2
1.2
1.0
Finished Cable
-
-
-Approximate overall diameter
mm
10.8
9.4
8.4
6.1
-Approximate weight of completed cable
kg/km
475
352
262
113
Electrical Characteristics
-
-
-D.C resistance at 20°C ≤
Ohm/Km
0.387
0.524
0.727
1.83
-Current rating
A
275
230
190
85
-Test voltage
-
1.5kV/5Min
