• Model NO.：S,FTP Cat7
• Wire Core Material：Bare Copper Wire
• Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
• Model：S,FTP Cat7
• Brand：Risun or OEM
• Insulation Material：HDPE
• Ripcord：500d
• No.of Conductor：8 Core, 4pairs
• Color：Gery, White or According Customer Requirement
• UV：Available
• Waterproof：Available
• Frame Returdant：Available
• Conduct Material：Bare Copper
• 1st Shield Material：Polyester Tape+Aluminum Foil
• 2ND Shield Material：40% Tinner Copper
• Sheath Material：PVC,PE,LSZH
• Transport Package：305m,Pull Box, 2 Pull Box,CTN.
• Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
• Trademark：Risun or OEM
• Origin：Hangzhou, Zhejiang, China(Mainland)
• HS Code：8544491100
• Production Capacity：20000 Boxes Per Month

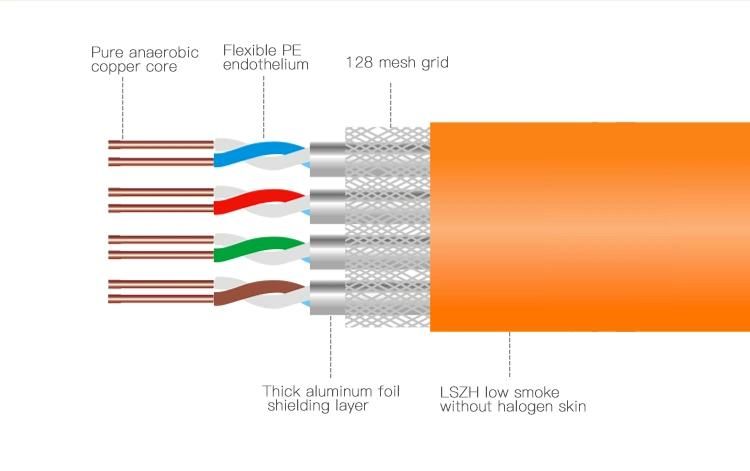

SFTP CAT7 solidConductor23AWG Bare Copper   0.58±0.02mm Bare CopperInsulationØ 1.35 ± 0.05 mmPair Colour Identification1st White-Blue + Blue
2nd White-Orange + Orange
3rd White-Green + Green
4th White-Red + Red1st ShieldEach pair Aluminum foil shielded2nd Shield≥40% Tinner copperSheath7.9±0.5mm PVC(PE,LSZH)ColorGrey, White or according customer requirementPackage305M/1000ft, Wooden Reel, Carton, PalletDelivery timeNormally 25 days after received the deposit.ApplicationAll Ethernet applications which includes
10 Base T (IEEE 802.3)
100 Base T (IEEE 802.3U)
100 Vg-Any LAN (IEEE 802.12)
Token ring (IEEE 805.5)
TP-PMD (ANSI X3T9.5)
ATM 155
10G BASE-T Gigabit Ethernet
Voice, Data , CATV & All sharing application up to 600 MHz
Electrical Performance:Electrical Characteristics@ 20° cSpecificationsTypical PerformanceConductor loop resistance Max 19.0 / 100m14.5/ 100mConductor resistance unbalanceMax2%1.5%Dielectric strength1.0kV de or 0.7kV ac for 1 min100% in process testInsulation resistance500M .km @ U 100-500 V test voltage>5 GQkmCapacitance unbalance to earthMax 330 pF/100m330 pF/100mVelocity of propagation<538 nsec/100m@ 600MHz496 nsec/100m @ 600MHz(NVP for hand held testers = 0.69)Skewax 45 nsec/100m@ 600MHz30 nsec/100m@ 600MHzCharacteristic impedance100.0 +/- 15.0@ 600MHz100.0 +/- 10.0@ 600MHzMutual capacitance5.6nF/ 100m5.6nF/ 100m

Mechanical And Environmental Properties:Mechanical And Environmental Properties14kg per simplex cable (installation)Minimum bend radius8 x outer diameter (installation)
4 x outer diameter (operation)Temperature0°C to +50°C (installation)
-10°C to +60°C (operation

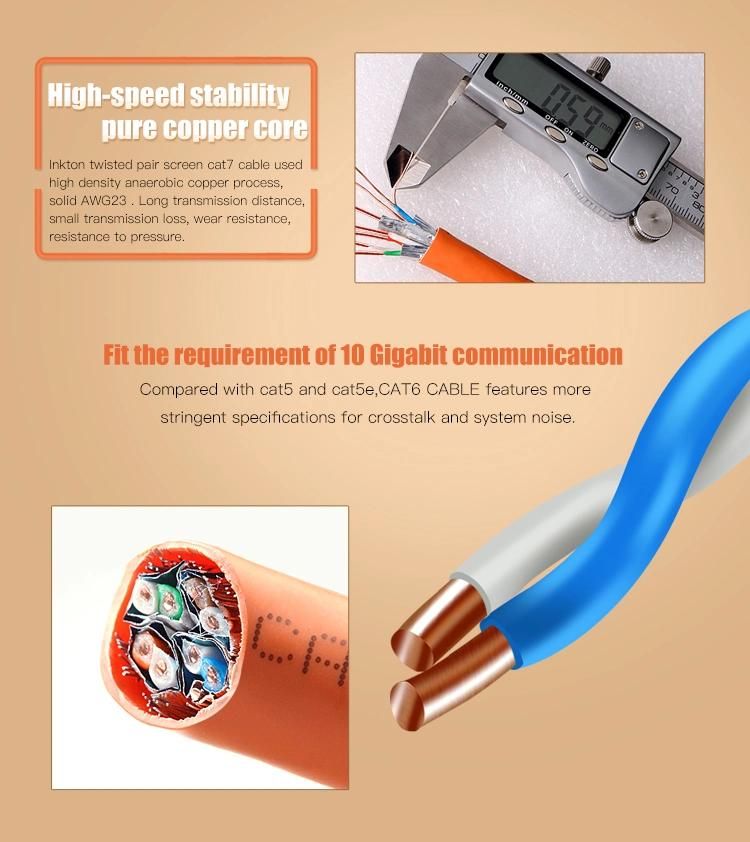

Details Images:










Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.



Packing&Shipping:













Why Choose Us:



FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.

Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to
quantity.

Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.

Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)

Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.

Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.

Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
