Electrical Power Cables with XLPE Insulated for Rated Voltages From 3.6/6kv up to 26/35kv.

Guangdong Vango Cable Industry Co., Ltd.
  • Application:Construction, Underground, Industrial, Power Station
  • Voltage:Low and Medium Voltage Cable
  • Current:AC Cable
  • Insulation Material:XLPE
  • Sheath Material:PVC
  • Material Shape:Round Wire

Base Info

  • Model NO.:YJV YJY YJLV YJLY YJLV22 YJLV23
  • Wire Core Material:Red Copper Wire
  • Certification:ISO, CCC, CE
  • Model:YJV
  • Brand:Gdyg
  • Transport Package:Wooden Drum
  • Specification:ICEA S-76-474 etc, NFC-33029
  • Trademark:GDYG
  • Origin:Guangdong Province, China
  • HS Code:854449210
  • Production Capacity:30000km

Description

Basic Info.

Model NO. YJV YJY YJLV YJLY YJLV22 YJLV23 Wire Core Material Red Copper Wire Certification ISO, CCC, CE Model YJV Brand Gdyg Transport Package Wooden Drum Specification ICEA S-76-474 etc, NFC-33029 Trademark GDYG Origin Guangdong Province, China HS Code 854449210 Production Capacity 30000km

Product Description

Characteristics and Application of the products

Rated voltage 3.6/6KV-26/35KV copper/aluminum conductor,XLPE/PVC insulated, PVC sheathed, power cable.These cables includes single core and muti cores.The corss section area of conductor can be from 25mm2, 35mm2, 50mm2, 70mm2 .... to 240mm2, 300mm2, 400mm2, 500mm2, 630mm2. There XLPE Cables can be armoured with steel tape, steel wire, aluminum wire. or you can require more functions such as flame retardant etc for your special purpose of application.

XLPE/PVC insulated power cable has the advantages of not only high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion,but also simple construction,light weight and convenient to use.It applies to electricl power transmission and distribution lines.

The main features of the flame retardant XLPE power cable is hard to get fire or that the continous burning of cables is very limited when it is on fire. It applies to the places with many cables laid tightly together such as power-generated station, subway, tunnel, high-storey building, large-sized factories and mines, oil field and coal mine. Main characteristics of low smoke, halogen-free, flame retardant power cable is very low smoke emission and harmless (low toxic, low corrosive) besides the property of flame retardant. It can be used in such kinds of places as subway, tunnel, nuclear power station with special demands of property of flame retardant, the density of smoke emission and toxic index when cable gets burning.

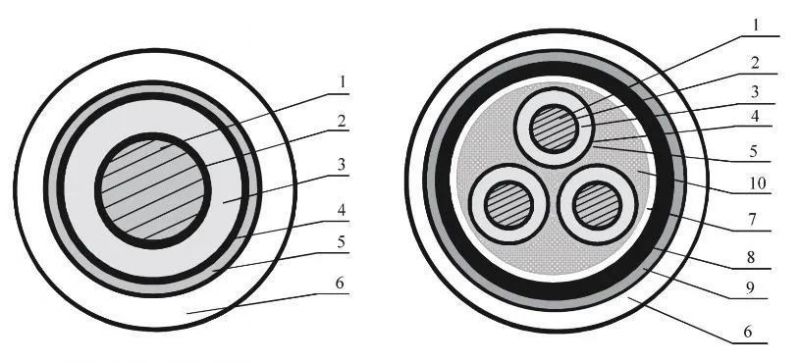

Structure of Product
Electrical Power Cables with XLPE Insulated for Rated Voltages From 3.6/6kv up to 26/35kv.

1. Conductor
2. Inner semi-conducting screen
3. Insulation
4. Outer semi-conducting screen
5. Metallic screen
6. Outer sheath
7. Wrapping tape
8. Inner sheath
9. Steel belt armor
10. Filler

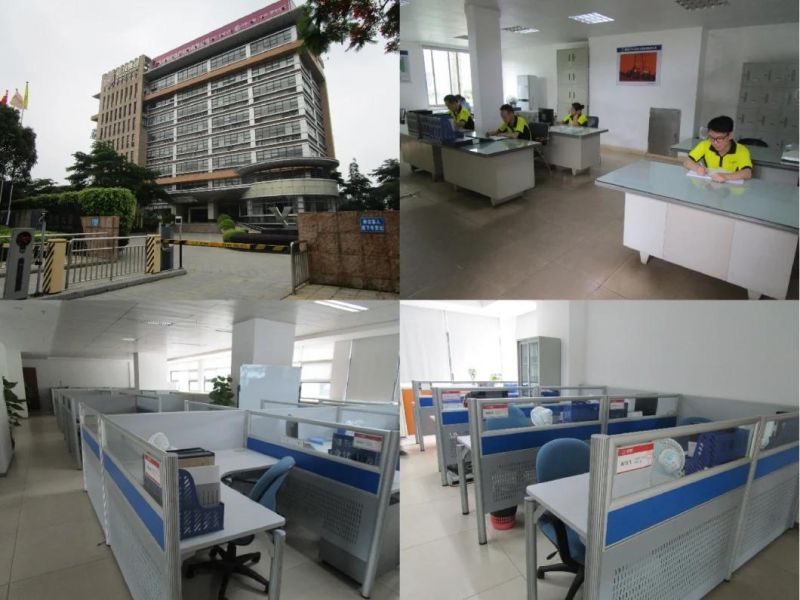

Company Building & Offices
Electrical Power Cables with XLPE Insulated for Rated Voltages From 3.6/6kv up to 26/35kv.

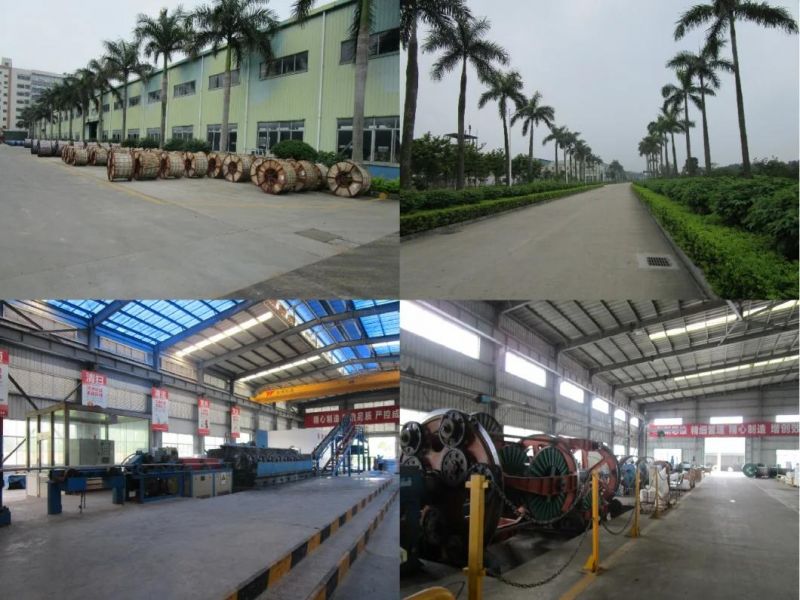

Factory & Workshop
Electrical Power Cables with XLPE Insulated for Rated Voltages From 3.6/6kv up to 26/35kv.

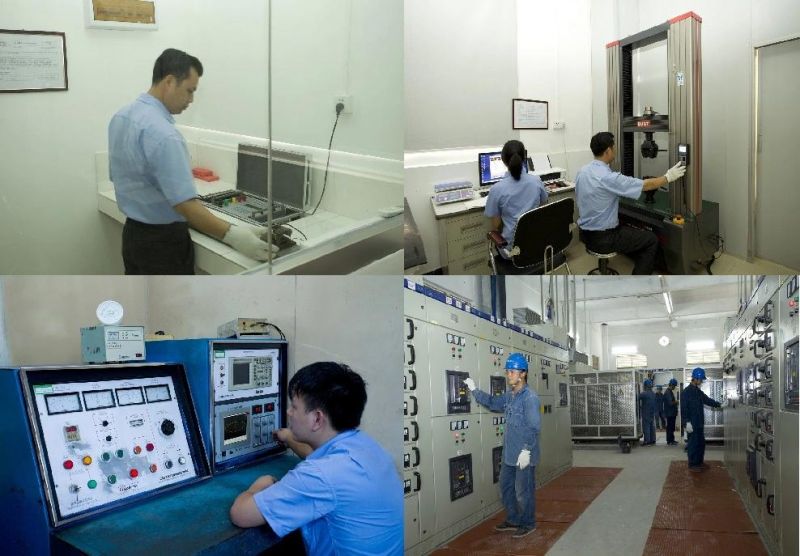

Test
