AAC, AAAC Alloy Bare Aluminium Conductor
Luoyang Asian Sun Wire & Cable Co., Ltd.- Application:Construction, Overhead, Underground, Industrial, Power Station
- Voltage:Low and Medium Voltage Cable
- Current:DC & AC
- Insulation Material:Bare
- Sheath Material:Bare
- Material Shape:Round Wire
Base Info
- Model NO.:AAC conductor
- Wire Core Material:Aluminum
- Certification:ISO, CCC, CE, UL
- Model:AAC Conductor
- Brand:Asian Sun
- Transport Package:Wooden Drum,Wooden Steel Drum,Rolls
- Specification:as the costumer request
- Trademark:Asian Sun
- Origin:Henan, China
- HS Code:7614900000
- Production Capacity:50000meters Per Day
Description

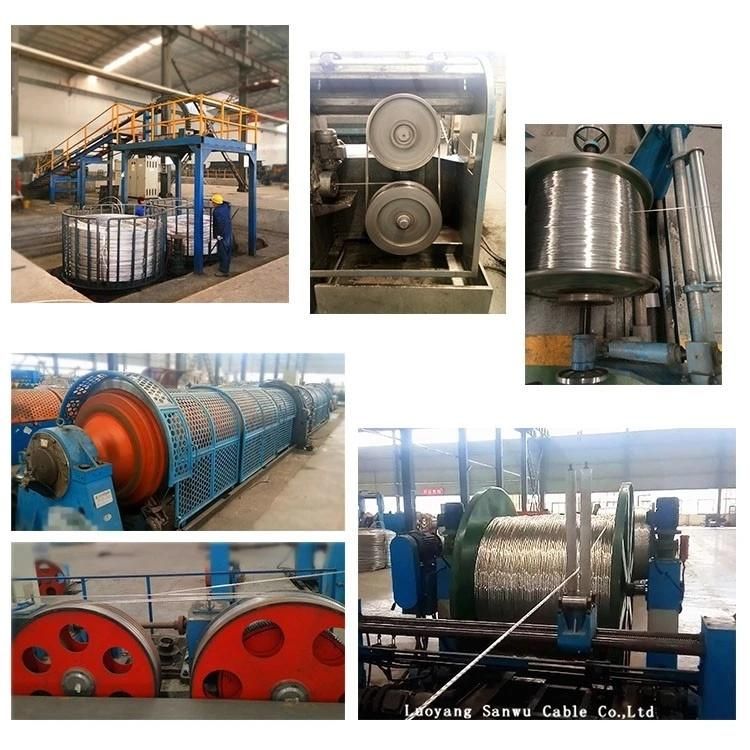

MAX .DC resistance at 20Nominal Actual MCM mm2 mm mm kg/km kN ohm/km AKRON 30.58 15.5 7/1.68 5.04 42.58 4.92 2.159 ALTON 48.69 24.7 7/2.12 6.36 67.80 7.83 1.356 AMES 77.47 39.2 7/2.67 8.01 107.5 12.4 0.8547 AZUSA 123.3 62.4 7/3.37 10.11 171.3 18.9 0.5365 ANAHEIM 155.4 78.6 7/3.78 11.34 215.6 23.8 0.4264 AMHERST 195.7 99.3 7/4.25 12.75 272.5 30.0 0.3373 ALLIANCE 246.9 125 7/4.77 14.31 343.2 37.8 0.2678 BUTTE 312.8 159 19/3.26 16.3 435.1 46.5 0.2112 CANTON 394.5 200 19/3.66 18.3 548.5 58.6 0.1676 CAIRO 465.4 236 19/3.98 19.9 648.6 69.2 0.1417 DARIEN 559.5 284 19/4.36 21.8 778.3 83.1 0.1181 ELGIN 652.4 331 19/4.71 23.55 908.3 97.0 0.1012 FLINT 740.8 375 37/3.59 25.13 1028 107 0.08944 GREELEY 927.2 470 37/4.02 28.14 1289 135 0.07133 / 1077.4 547 61/3.38 30.42 1502 156 0.06120 / 1165.1 590 61/3.51 31.59 1620 167 0.05675 / 1259.6 638 61/3.65 32.85 1751 181 0.05248 / 1348.8 685 61/3.78 34.02 1878 194 0.04893 / 1439.2 729 61/3.90 35.10 1999 207 0.04597 The Producing Process of Bare Conductor:
Application:
Conductor (ACSR,AAC,ABC,AAAC ) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Standards:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.

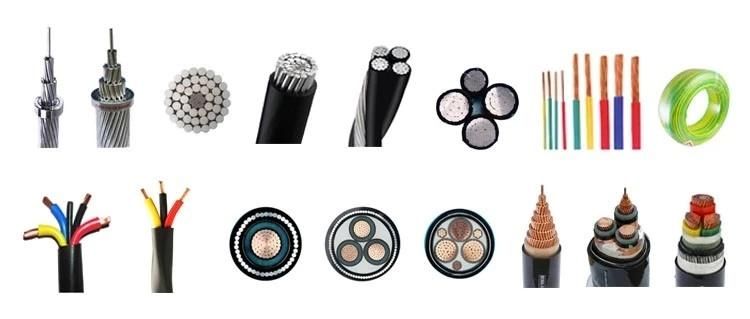

More products:

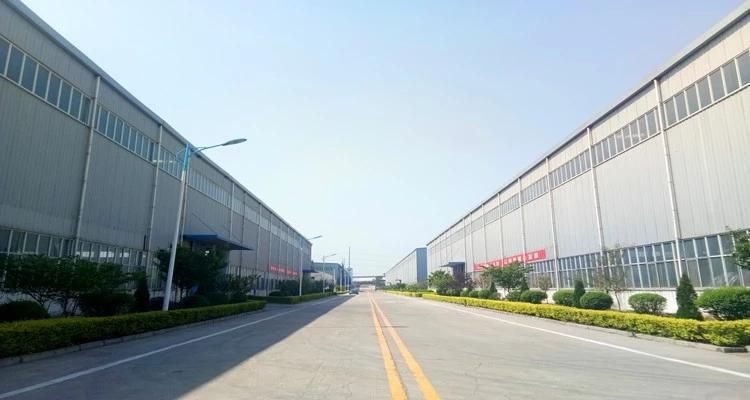

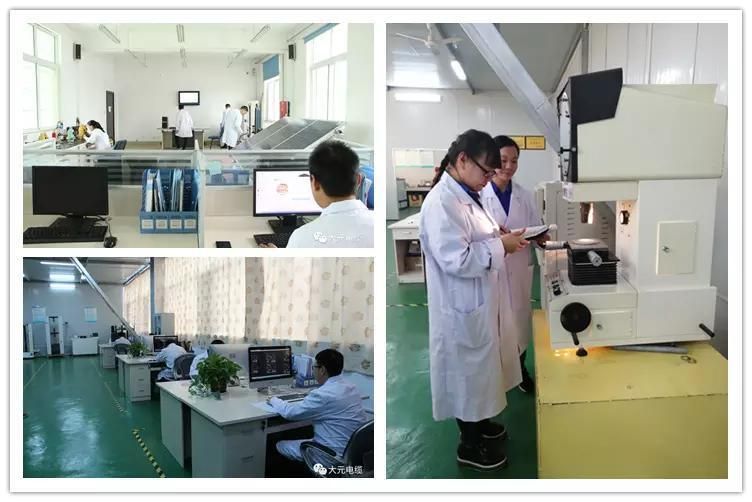

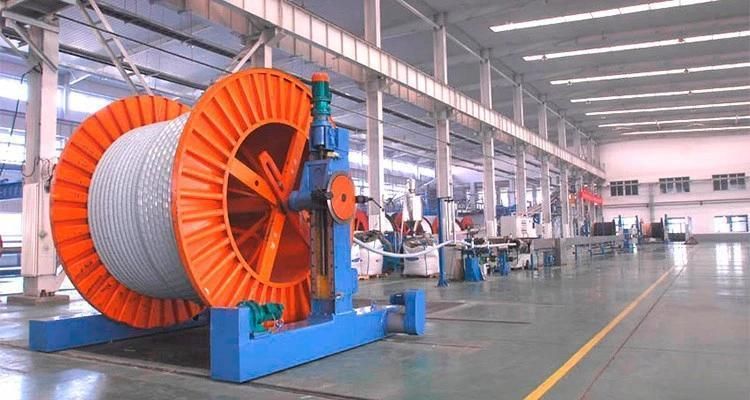

Our workshop

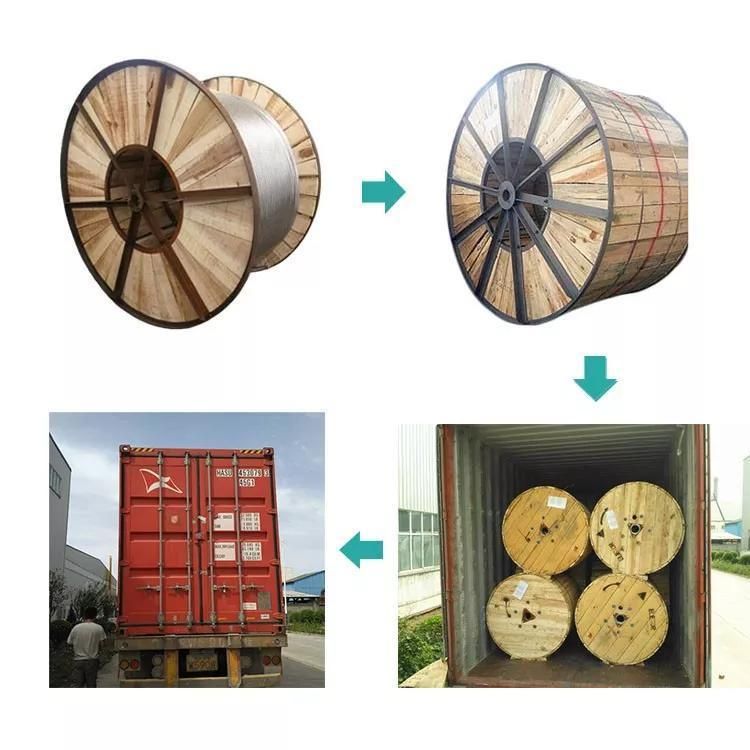

Packing & Delivery
Wooden drums with diameter 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers

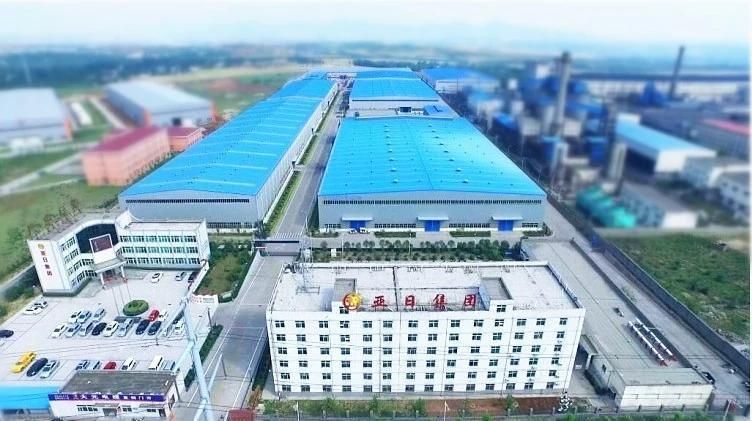

Luoyang Asian Sun wire & cable Co., Ltd., founded in 2006 and located in the Industrial Cluster area of Yichuan, Luoyang, covers an area of more than 60, 000 square meters, is an independent export-oriented enterprise, professionally engaged in design, manufacturing and trade.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
Application:
Conductor (ACSR,AAC,ABC,AAAC ) have been widely used in power transmission lines with various voltage, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost and large transmission capacity.
Standards:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.
More products:
Our workshop
Packing & Delivery
Wooden drums with diameter 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers
Luoyang Asian Sun wire & cable Co., Ltd., founded in 2006 and located in the Industrial Cluster area of Yichuan, Luoyang, covers an area of more than 60, 000 square meters, is an independent export-oriented enterprise, professionally engaged in design, manufacturing and trade.
We specialize in the production and supply Aluminum rod, Aluminum stranded cable, Bare conductor, Overhead insulated cable etc, OEM also accepted.
The expanded business of our Group includes industry, Hardware, electromagnetically device, new energy equipment and auxiliary products, as well as the manufacturing and trade of municipal rescue supporting materials.
Luoyang Asian Sun wire & cable has over 200 employees, five modern management workshops and 37 advanced production equipments, Aluminum rod annual output of 200, 000 tons and Cable products annual sales over 500 million.
We keep diverse products according to customer and market demand. With superior quality products, reasonable prices and quick delivery, our company has attained a great reputation among our customers. Our products are export to in America, Asia, Africa, Australia etc, more than 50 countries such as Canada, India, Pakistan, Thailand, Malaysia, Algeria, South Africa, Botswana, Mali, Senegal, Djibouti, Ethiopia, Egypt, Argentina, Australia, New Zealand, Russia, Bolivia, Georgia and etc. We welcome more friends to cooperate with us in the near future.
We regard integrity management and pursuit excellence principle as enterprise tenet, Eagle-like individual and Geese-like team as spirit, with reliable quality and efficient service, forever with you!
