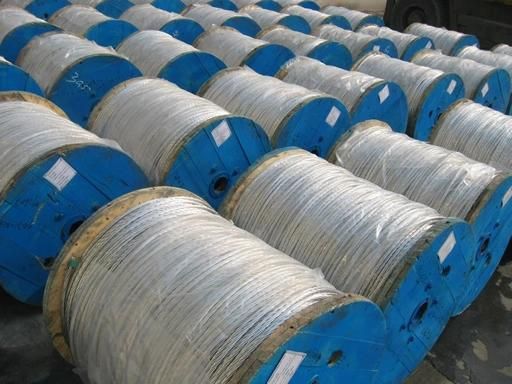

Alumunium Alloy 35mm, DIN Standard Conductor AAAC Conductor

YIFANG ELECTRIC GROUP INC.
  • Name：Alumunium Alloy
  • Characteristic：Bare
  • Package：by Drum
  • Transport Package：Drum
  • Specification：35MM2 Alumunium Alloy
  • Trademark：Yifang cable

Base Info

  • Model NO.：AAAC Conductor
  • Origin：China
  • HS Code：7614900000
  • Production Capacity：500, 000 Kilometers Per Month

Description

Basic Info.

Model NO. AAAC Conductor Origin China HS Code 7614900000 Production Capacity 500, 000 Kilometers Per Month

Product Description

Alumunium Alloy 35mm, DIN Standard conductor
Type/ code name
-- 35mm2
2 Material -- Aluminum Alloy
3 Cross Section Area mm2 35
4 Conductor construction
construction should be as per DIN 48201-6 ,
where Breaking Load is 979 (Kgs)
Breaking Length is 10.410 (Km)
Wire No. No.s 7
Nominal wire dia. mm 2.5
5 Approx. Overall Diameter mm 7.5
6 Approx. Weight kg/km 94
7 Rated tensile strength kg/sq.mm 960
8 Max. D.C. Resistant 20ºC Ω/km 0.9669
