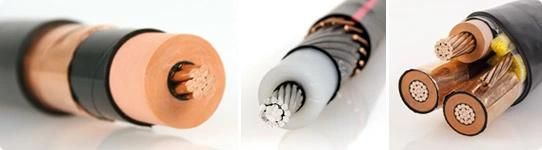

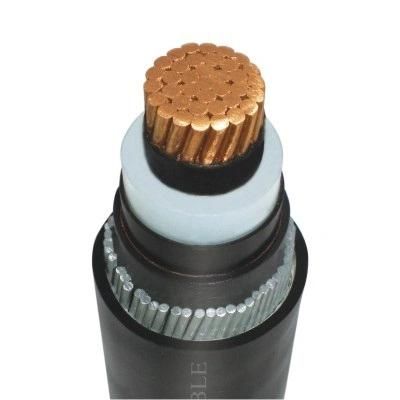

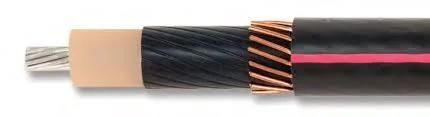

BS 6622 Single Core Unarmoured (Copper Wire Screen) 15kv XLPE Stranded Copper Conductors
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：XLPE
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：15kv cable BM49
- Wire Core Material：Bare Copper Wire
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：YJV
- Brand：Yifang
- Option Conductor：Aluminum
- Transport Package：Wooden or Wooden-Steel Drum
- Specification：multicores
- Trademark：Yifang Cable
- Origin：Zhengzhou, China
- HS Code：8544601200
- Production Capacity：300km,Month
Description
cross-sectional area
mmsq
Minimum average thickness of insulation
mm
Nominal area of copper tape screen Please refer to our technical department for further information
1000
Installation
cross-sectional area mmsq
Approximate cable weight
kg/m
Nominal drum length Please refer to our technical department for further information
1000
Electrical Performance
cross-sectional area mmsq
Maximum DC resistance of conductor at 20 ºC uohms/m
Maximum AC resistance of conductor at 90 ºC uohms/m
Reactance at 50Hz Please refer to our technical department for further information
1000
Ratings
Cross-sectional area Current Ratings
Short circuit ratings
Laid direct in ground
Amps
Drawn into ducts
Amps
Laid in air
Amps
One second short circuit rating of conductor
KA
One second short circuit rating of copper per core
KA
50
220
225
250
6.8
2.6
70
270
270
310
9.8
2.6
95
320
320
375
13.3
2.6
120
360
360
430
17.2
2.6
150
410
400
490
21.2
2.6
185
460
440
560
26.6
2.6
240
530
505
660
34.9
4.3
300
600
560
760
43.8
4.3
400
680
610
880
57.3
5.8
500
750
680
1000
72.3
5.8
630
830
750
1140
91.2
5.8
800
Please refer to our technical department for further information
1000
