• Model NO.：CU,XLPE,CU Tape,PVC,SWA,PVC BL43
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Cu,XLPE,Cu Tape,PVC,Swa,PVC
• Brand：Yifang

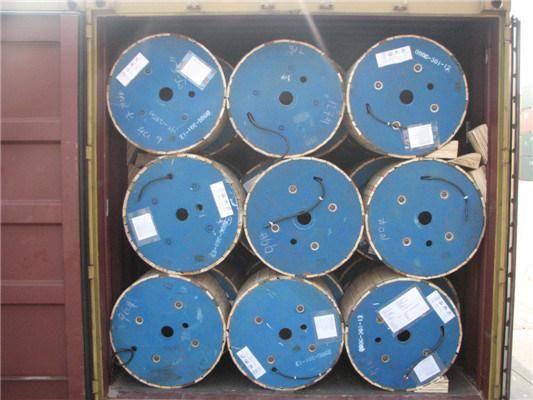

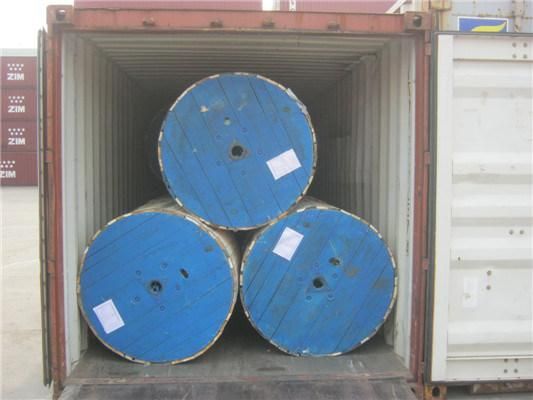

• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：3X50mm2
• Trademark：Yifang
• Origin：Henan Province, China
• HS Code：8544601200
• Production Capacity：500 Kilometers,Month

Construction Characteristics

Conductor material:CopperConductor identification:Coloured tapes under screenConductor shape:CircularConductor flexibility:Stranded class 2Material of the inner semi-conductor:Semi-conducting compoundInsulation:XLPE (Chemical)Material of the external semi-conduct:Extruded strippableScreen:Bare CopperInner sheath:PVCArmour type:Galvanized steel wiresOuter sheath:PVCColour:RedLead free:Yes

Electrical Characteristics

 Rated Voltage Uo/U (Um):8700/15000 volts to BS6622 & IEC 60502-2

Usage Characteristics

 Minimum installation temperature:0 °CMaximum installation temperature:60 °CInstallation type:Direct burial or in ductsMaximum operating temperature:90 °CShort-circuit max. conductor temperature:250 °CFlame retardant:IEC 60332-1Bending radius:12 x Overall diameter

3 Core: Brown, Black & Grey tapes

Part NumberCross SectionStrandingApprox WeightApprox Overall DiameterGland SizeSingle CleatNom. Max. DC-resist conductor 20 CCurrent rating laid direct (mm²)(mm)KG/KM (mm) (mm) (Ohm/km)(Amp)15KVPVC3X503 x 5019/1.78610058.863sR90.38721315KVPVC3X703 x 7019/2.14710062.963sR100.26826015KVPVC3X953 x 9519/2.52830067.063R100.19330915KVPVC3X1203 x 12037/2.03940070.675sR110.15334915KVPVC3X1503 x 15037/2.251050073.675sR110.12439015KVPVC3X1853 x 18537/2.521290079.475R120.099143615KVPVC3X2403 x 24061/2.521520084.790R140.075449915KVPVC3X3003 x 30061/2.851760090.190R150.0754553

On request the cable is available with a black polyethylene (PE) outer sheath. A MMQ and manufacturing lead-time may apply.



Certificates:
