• Model NO.：LV-BE33
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：LV-Be33
• Brand：Yifang
• Transport Package：Wooden Drum or Wooden&Steel Drum
• Trademark：Yifang
• Origin：Zhengzhou City of Henan Province, China
• HS Code：8544492100
• Production Capacity：500 Kilometers,Month

Basic Info.

Model NO. LV-BE33 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model LV-Be33 Brand Yifang Transport Package Wooden Drum or Wooden&Steel Drum Trademark Yifang Origin Zhengzhou City of Henan Province, China HS Code 8544492100 Production Capacity 500 Kilometers/Month

Product Description

Applications
For use in closed environments or populated spaces such as auditoriums, arenas and health facilities where more stringent customer specifications for smoke and halogen-free materials are desired.  Ideally suited for use in a broad range of commercial, industrial and utility applications where reliability is a major concern, where maximum performance will be demanded  and where space  is limited.  For use in free air, raceways or direct burial in accordance with NEC

Construction
Conductor:  14 AWG thru 1000 kcmil compressed tinned copper per ASTM B33, Class B stranding per ASTM B8
Insulation:  Composite Low-Smoke, Zero-Halogen Cross-linked Polyolefin (LSZH XLPO) colored for contrast with black Low-Smoke, Zero-Halogen Cross-linked Polyolefin (LSZH XLPO)
Print: AMERICAN WIRE GROUP LSZH TYPE USE-2 OR RHH OR RHW-2 (SIZE) 600 V OIL RES I SUN RES -40C ST1* FOR CT USE* (UL) DAY/MONTH/YEAR  OF MFG SEQUENTIALFOOTAGE MARK * "ST1" and "FOR CT USE" on 1/0 AWG and larger.

Features

• Rated at 90°C wet or dry
• Low-Smoke, Zero-Halogen insulation systemExtra-tough, mechanically rugged composite insulation construction
• Low Friction for easy pulling on 8 AWG and larger
• Excellent electrical, thermal and physical properties
• Excellent moisture resistance, exceeding UL 44 requirements
• Excellent resistance to crush, compression cuts and heat deformation
• Excellent flame resistance
• Resistant to most oils and chemicals
• UV/sunlight-resistant
• Rated ST-1 for Limited Smoke per UL 44 on sizes 1/0 AWG and larger
• Stable electrical properties over a broad temperature range
• Excellent low temperature cold bend characteristics, meets cold bend and cold impact test at -40°C

Compliances:

• National Electrical Code (NEC)
• "FOR CT USE" on 1/0 AWG and larger in accordance with NEC
• UL 44 Type RHH/RHW-2
• UL 854 Type USE-2
• Limited Smoke rating per UL 44 and UL 1685
• Compressed tinned copper per ASTM B33
• Class B stranding per ASTM B8
• ICEA T-33-655 smoke, halogen and acid gas requirements
• ICEA S-95-658/NEMA WC70

Flame Test Compliances:

• For 1/0 AWG and larger: IEEE 383, IEEE 1202/CSA FT4
• UL 1685

Other Compliances:

• EPA 40 CFR, Part 261 for leachable lead content per TCLP
• OSHA Acceptable
• RoHS Compliant

Packaging:  Material cut to length and shipped on non-returnable wood reels

Options:

• 2 kV version
• Bare copper conductor
• Other stranding available

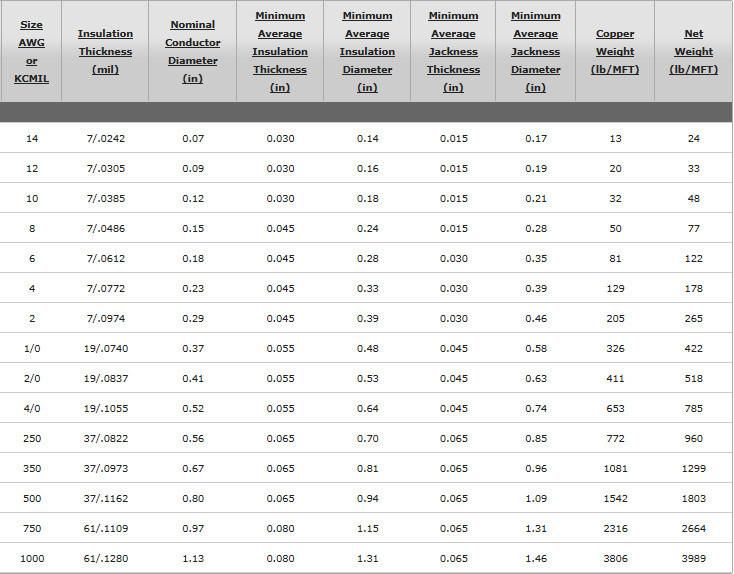

Speicification

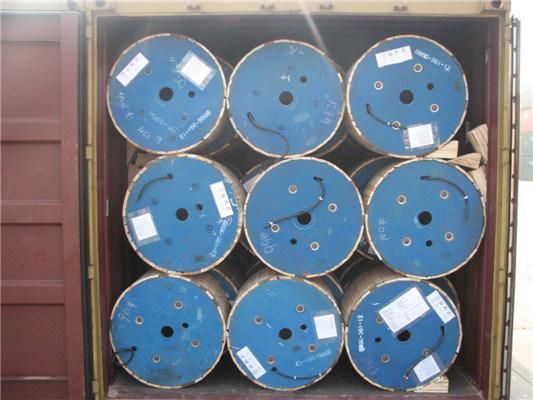

Package and Delivery
