• Model NO.：BCS-BE26
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE, SGS
• Model：Bc -Be4
• Brand：Yifang
• Standard：ASTM B-1, ASTM B-2, ASTM B-3, ASTM B-8
• Transport Package：Wooden Drum
• Specification：8 awg to 1000 kcmil
• Trademark：Yifang
• Origin：China
• HS Code：7413000000
• Production Capacity：3000km Per Month

Basic Info.

Model NO. BCS-BE26 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE, SGS Model Bc -Be4 Brand Yifang Standard ASTM B-1, ASTM B-2, ASTM B-3, ASTM B-8 Transport Package Wooden Drum Specification 8 awg to 1000 kcmil Trademark Yifang Origin China HS Code 7413000000 Production Capacity 3000km Per Month

Product Description

Applications
Used for overhead electrical distribution lines, ground ing electrical substations, electrical test equipment and any other electrical system. Suitable for numerous other applications.
Stranded :

• ASTM B-1 Hard Drawn Temper
• ASTM B-2 Medium Hard Drawn Temper
• ASTM B-3 Soft Drawn Temper
• ASTM B-8 - Concentric Lay, All Tempers

Notes
Ampacities (Amps per Cond.) are based on a 30 ºC ambient temperature, single conductor in air, per NEC

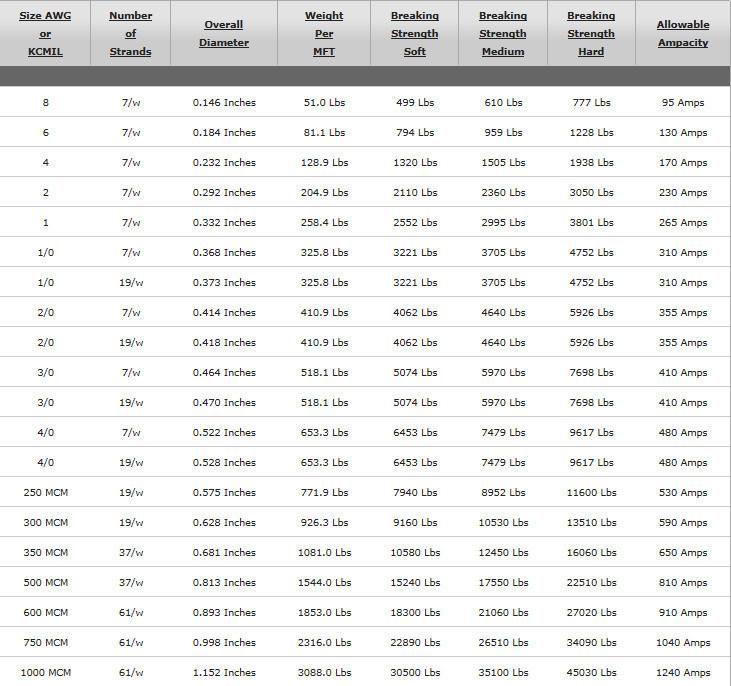

Specifications
ASTM Specifications, latest issue, as follows :



The above data is approximate and subjected to manufacturing tolerance.

SERVICING

Purpose:
To establish and maintain a procedure for performing and verifying that our service meets specified requirements and that a suitable method of feedback exists from the customer back to the appropriate individual or department within YIFANG.

Scope:
YIFANG does not currently have any contracts that obligate the company to provide installation or service above and beyond normal product service and delivery.  Service activity not specified by contract (such as the treatment of a customer complaint) shall be determined and performed free of charge on a case by case basis. Service concerns will be recorded and will provide a feed-back system as required by the customer.
