• Model NO.：CU,XLPE,CWS,PVC BL41
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Cu,XLPE,Cws,PVC
• Brand：Yifang

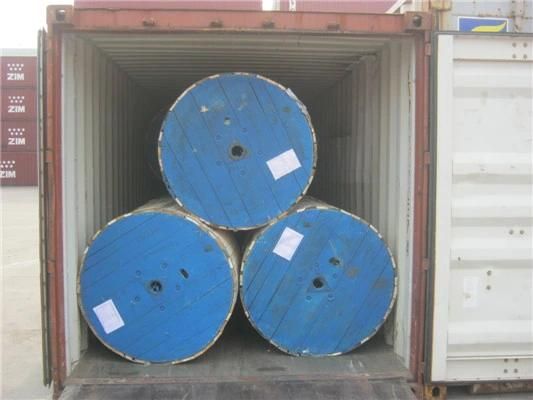

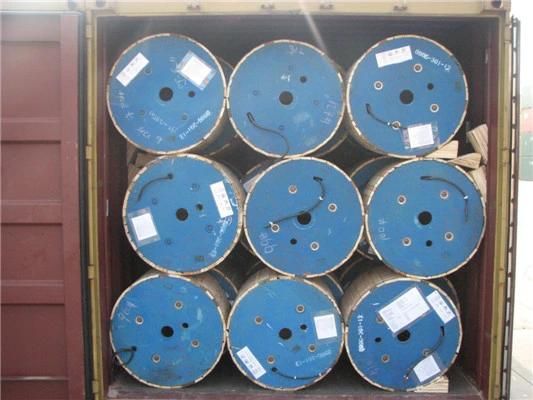

• Transport Package：Wooden Drum or Wooden&Steel Drum
• Specification：630mm2
• Trademark：Yifang
• Origin：Henan Province, China
• HS Code：8544601200
• Production Capacity：500 Kilometers,Month

Construction Characteristics

Conductor material:CopperConductor identification:Coloured tapes under screenConductor shape:CircularConductor flexibility:Stranded class 2Material of the inner semi-conductor:Semi-conducting compoundInsulation:XLPE (Chemical)Material of the external semi-conduct:Extruded strippableScreen:Bare CopperInner sheath:PVCArmour type:Copper wiresOuter sheath:PVCColour:Red or BlackLead free:Yes

Electrical Characteristics

 Rated Voltage Uo/U (Um):8700/15000 volts to BS6622 & IEC 60502-2

Usage Characteristics

 Minimum installation temperature:0 °CMaximum installation temperature:60 °CInstallation type:Direct burial or in ductsMaximum operating temperature:90 °CShort-circuit max. conductor temperature:250 °CFlame retardant:IEC 60332-1Bending radius:12 x Overall diameter



On request the cable is available with a black polyethylene (PE) outer sheath. A MMQ and manufacturing lead-time may apply



Certificates:
