• Model NO.：GW03-C, GW04-C
• Material Shape：Round Wire
• Range of Application：Heating
• Certification：ISO9001, CE, UL, CCC, RoHS, CSA
• Brand：Fongming
• Name：350c 300V Fiberglass Wrapping Electrical Wire
• Rating Voltage：300V
• Working Temperature：350c
• Color：as Required
• Sample：3 Meters Free, 3 Days
• Customize：Available
• MOQ：1000 Meters
• Transport Package：305m Per Roll, Carton Box Outside
• Specification：0.14-25mm2
• Trademark：Fongming
• Origin：Yangzhou, P. R China
• HS Code：8544492100
• Production Capacity：100000000meters Per Month

Basic Info.

Model NO. GW03-C, GW04-C Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, CSA Brand Fongming Name 350c 300V Fiberglass Wrapping Electrical Wire Rating Voltage 300V Working Temperature 350c Color as Required Sample 3 Meters Free, 3 Days Customize Available MOQ 1000 Meters Transport Package 305m Per Roll, Carton Box Outside Specification 0.14-25mm2 Trademark Fongming Origin Yangzhou, P. R China HS Code 8544492100 Production Capacity 100000000meters Per Month

Product Description

Product Description

350C 300V Fiberglass Wrapping Electrical Wire

Description
Name: 350C 300V Fiberglass Wrapping Electrical Wire
Model: GW03-C, GW04-C
Size: 0.14-25mm2

Feature
Ratings Voltage: 300V
Rated Temperature: 350C

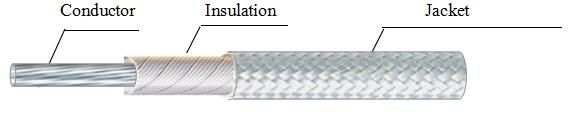

Structure
Conductor: 3% Nickel Plated Copper or Pure Nickel
Insulation: Fiberglass Wrapping
Jacket: Fiberglass Braid with Silicone Resin Coating

Size mm2	Conductor Structure	Diameter (mm)	Insulation  Thickness (mm)	Diameter (mm)	Braid  Thickness (mm)	Diameter (mm)
0.14	7/0.16	0.48	0.26	1	0.2	1.4±0.2
0.22	7/0.2	0.6	0.26	1.12	0.2	1.5±0.2
0.25	7/0.23	0.69	0.26	1.21	0.2	1.6±0.2
0.5	7/0.3	0.9	0.26	1.42	0.2	1.8±0.2
0.75	11/0.3	1.15	0.26	1.67	0.2	2.1±0.2
1.0	14/0.3	1.30	0.26	1.82	0.2	2.2 ±0.2
1.5	21/0.3	1.59	0.26	2.11	0.2	2.5±0.2
2.0	28/0.3	1.83	0.39	2.61	0.2	3.0±0.3
2.5	35/0.3	2.05	0.39	2.83	0.2	3.2±0.3
4.0	56/0.3	2.60	0.39	3.38	0.2	3.8±0.3
6.0	84/0.3	3.18	0.39	3.96	0.25	4.5±0.3
10.0	140/0.3	4.50	0.52	5.54	0.25	6.0±0.5
16.0	224/0.3	5.70	0.52	6.74	0.25	7.2±0.5
25.0	350/0.3	7.15	0.52	8.19	0.25	8.7±0.5

Certifications



Company Information





Packaging&Shipping




Our Services

1. OEM service available based on official & legal authorization.

2. Strict quality control system.

3. Timely deliverly.

4. Excellent quality with affordable price.

5. Strong technical support.

6. Mobile on 24 hours for any question.

FAQ

1. Why is the price so low?
You are ordering directly from the factory.



2. Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.



3. Can I get some samples?
Yes, we are honored to offer you samples.



4. Can you make the products with my design?

Yes. customization is welcome .
