F/UTP CAT6A Ls0h Risun Factory Price HDPE Network Cable
Hangzhou Risun Cable Co., Ltd.- Application：Local Communication Cable, LAN Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC,LSZH
- Type：Cat 6
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：F,UTP CAT6A
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS, SGS,CPR,ETL,ISO9001
- Model：F,UTP CAT6A
- Brand：Risun or OEM
- Conductor：Solid Bare Copper
- Insulation：HD PE
- Filler：PE
- Shield：Polyester Tape+Aluminium,Polyester
- Drain Wire：Stranded Tinned Copper (7,0.15 mm)
- Jacket：PVC or LSZH
- Transport Package：305m,Pull Box, 2 Pull Box,CTN.
- Specification：CE, ISO, RoHS, ETL SGS CPR ISO9001
- Trademark：Risun or OEM
- Origin：Hangzhou, Zhejiang, China(Mainland)
- HS Code：8544491100
- Production Capacity：20000 Boxes Per Month
Description
F/UTP CAT6A solidConductor Solid Bare Copper AWG 23 Insulation HD PE Filler PE Shield Aluminium foil +Polyester Tape Jacket PVC or LSZH Drain Wire Stranded tinned copper (7/0.15 mm) Package 305M/1000ft, Wooden Reel, Carton, Pallet Delivery time Normally 25 days after received the deposit. Application Support 10G Base-T, 1000 Base-T and 1000 Base-TX LANs and broadband video
applications.
minimum bend radius 60 maximum pulling tension 90 Nominal weight 51kg/km Temperature characteristics(˚C) 100 x 240 Transport/storage 0 to +50˚C Operating temperature -20 to +60˚C Max. conductor DC resistance 20˚C (ohms/km) 98.6 Min.Insulation resistance 5000M Dielectric strength at 50Hz 1KV/1min Unbalanced capacitance-pair to ground(max) 800pF/500m Propagation Velocity(NVP) 78% Characteristic impedance at 100 MHz 100Φ±15% from 1 to 100 MHz

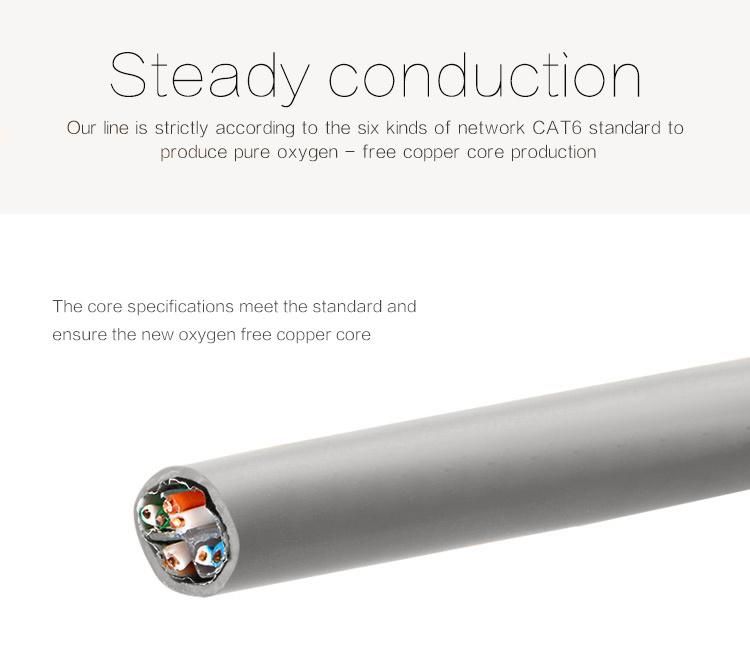

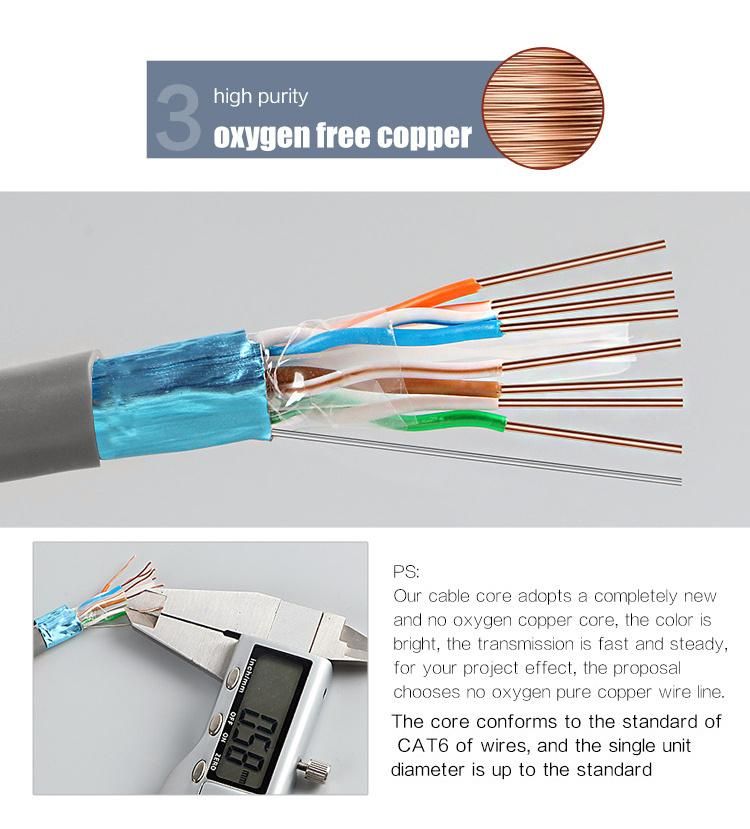

Details Images:
Company Introduction:
Since its creation in 2007, RISUN cable has beenspecialized in manufacturing of high quality network cable, coaxial cable, telephone wire and alarm cable. Our company maintains a quality assurance system to international standard ISO9001 to meet all clients expectation. OEM service is available for customer's special projects at affordable prices.
We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.
Packing&Shipping:
Why Choose Us:
FAQ:
Q1.ARE YOU TRADING COMPANY OR MANUFACTURER ?
A: We are factory.
Q2: HOW LONG IS YOUR DELIVERY TIME?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-30 days if the goods are not in stock, it is according to quantity.
Q3: DO YOU PROVIDE SAMPLES ? IS IT FREE OR EXTRA ?
A: Yes,we welcome sample order to test and check quality. we could offer the sample for free charge but do not pay the cost of freight.
Q4. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?
A: Normally, 10kms per one specification and one color.
Q5. HOW DO YOU SHIP THE GOODS AND HOW LONG DOES IT TAKE TO ARRIVE?
A: Normally by sea shipping. (sample order also available by air or courier)
Q6.HOW TO PROCEED AN ORDER FOR CABLES?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples or specification and places deposit for formal order.
Fourthly We arrange the production and shipping.
Q7.IS IT OK TO PRINT MY LOGO ON CABLES?
A: Yes. Please inform us formally before our production.
Q8: WHAT IS YOUR TERMS OF PAYMENT ?
A: Payment<=60km, 100% in advance. Payment>=60km, 30% T/T in advance ,balance before shippment.
WELCOME TO RISUN!!!
